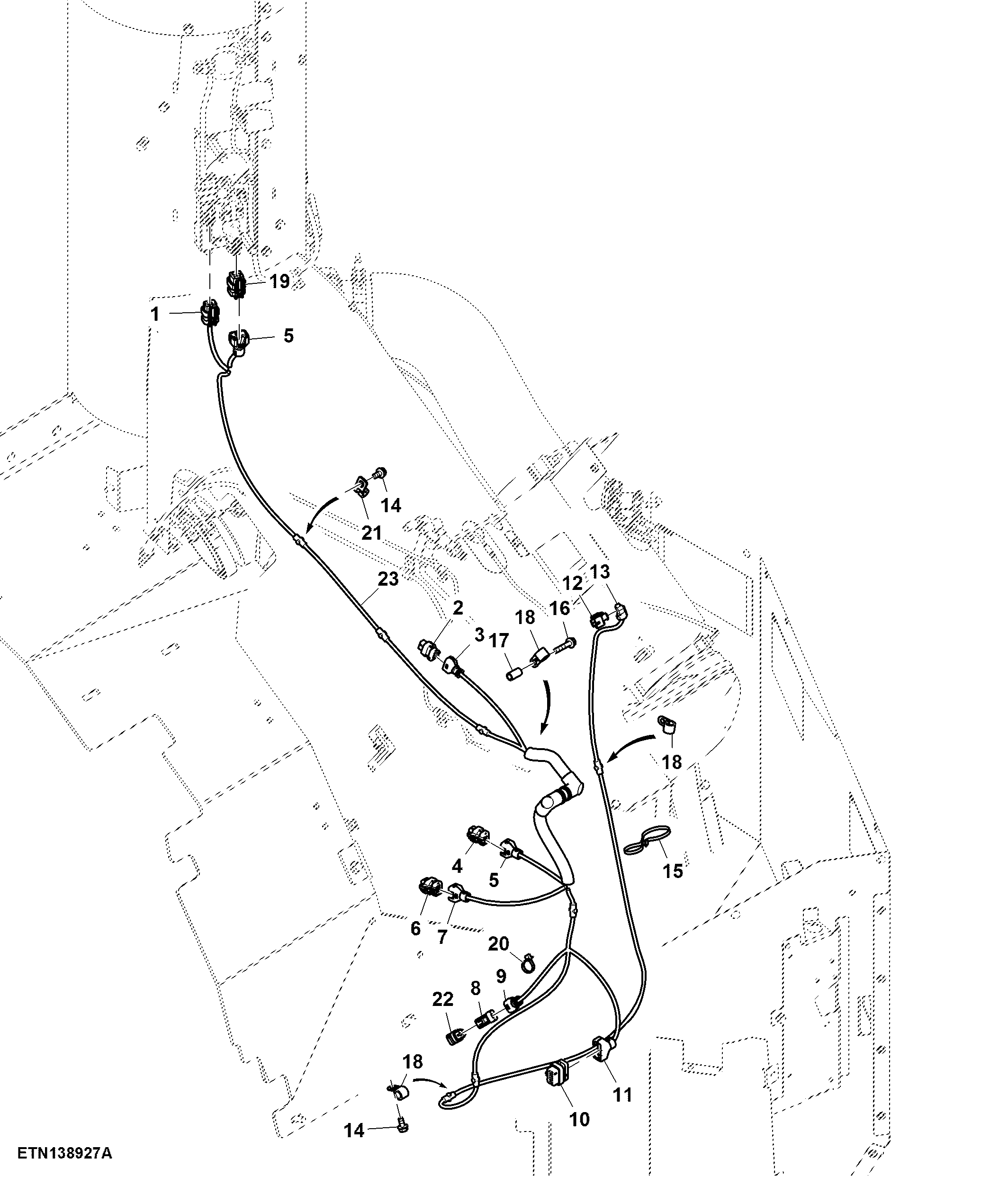

Wiring Harness, Exhaust Filter, 9.0 L / 13.5 L Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RWA10613	1	Repair Wire Assembly	Cavity 1, 4, 5, 6
1	57M9787	1	Elec. Connector Housing	B5503, NOX Sensor SCR Outlet
2	57M9780	1	Elec. Connector Housing	B5109, DPF DELTA Pressure - Face Seal
2	RWA10613	1	Repair Wire Assembly	Cavity 1, 2, 3
3	57M9838	1	Elec. Connector Accessory	-
4	57M9817	1	Elec. Connector Housing	B5204, Aftertreatment Temperature Module
4	RWA10613	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
5	57M9839	2	Elec. Connector Accessory	-
6	57M9787	1	Elec. Connector Housing	B5502, NOx Sensor, DPF Outlet
6	RWA10613	1	Repair Wire Assembly	Cavity 1, 3, 4, 5, 6
7	57M9841	1	Elec. Connector Accessory	-
8	57M9776	1	Elec. Connector Housing	A916, CAN Terminator
8	RWA11022	1	Repair Wire Assembly	Cavity 1, 2
9	57M9837	1	Elec. Connector Accessory	-
10	RWA10613	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 10, 11, 12
10	57M9800	1	Elec. Connector Housing	X342B, Front Control Harness (Front Hitch Circuits)
11	57M9844	1	Elec. Connector Accessory	-
12	57M10315	1	Elec. Connector Housing	Y5020, SCR Dosing Control Valve
12	RWA11130	1	Repair Wire Assembly	Cavity 1, 2
13	57M12151	1	Elec. Connector Accessory	-
14	19M10489	6	Screw	M8 X 16
15	57M10421	1	Elec. Connector Accessory	-
16	19M7798	1	Screw	M8 X 40
17	28H3390	1	Spacer	0.364" X 0.540" X 1"
18	57M10901	6	Clamp	-
19	57M9817	1	Elec. Connector Housing	B5212, SCR Temprature Module
19	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
20	R44302	1	Tie Band	-
21	T269643	3	Clamp	-
22	57M11134	1	Elec. Connector Housing	-
23	RE577163	1	Chassis Wiring Harness	-

Wiring Harness, Exhaust Filter, 9.0 L / 13.5 L Engine

Нет текстового описания
