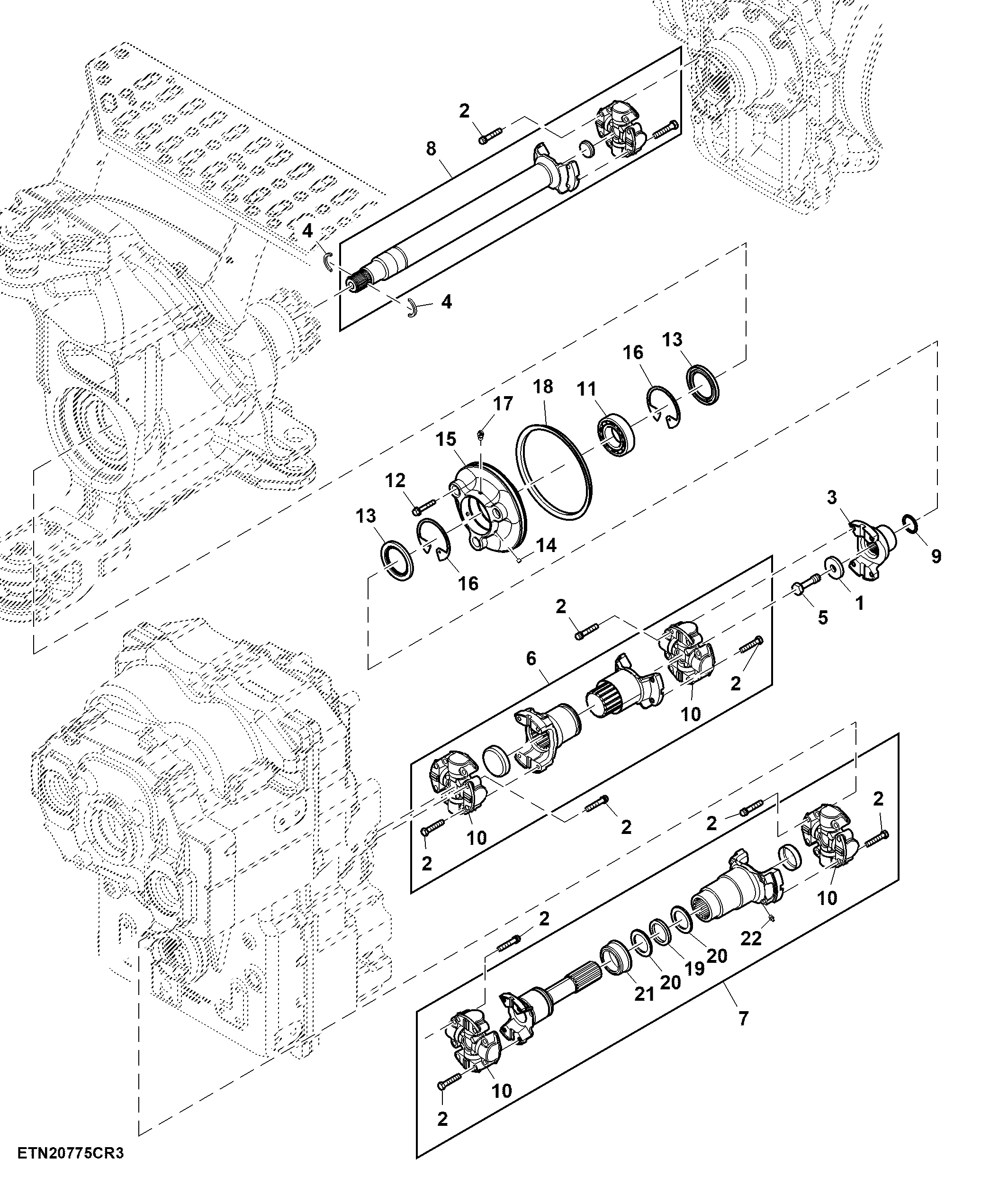

Universal Driveshaft, Transmission to Double Reduction Axle ( - 804100)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	W23832	1	Spacer	USE WITH RE556213
2	R114105	36	Screw	USE WITH RE556213
3	R124124	1	Universal Joint Yoke	USE WITH RE556213
4	R84624	2	Retainer	USE WITH RE556213
5	R98309	1	Cap Screw	USE WITH RE556213
6	RE584436	1	Universal Driveshaft	Articulation SUB FOR RE272690
7	RE344346	1	Universal Driveshaft	Front Axle Drive Shaft
8	RE556213	1	Universal Driveshaft	(Refer DTAC: 110298 Case) Rear Axle Drive Shaft ORDER RE585254; ALSO ORDER(2) R98309, (2) YZ502157 , (3) YZ502232 , (3) R573103 , (2) RE587092 , RE586670, R562311, R562256, T75447, 24M7239, E12379, AT209424, R562257, (2) 15H558, JD7760, (3) H208187, RE587658, R562190, U15409, R86105 AND RE597762
9	U11017	1	O-Ring	USE WITH RE556213
10	RE40113	4	Universal Joint	-
11	RE24390	1	Ball Bearing	USE WITH RE556213
12	H208187	3	Screw	USE WITH RE556213
13	RE26738	2	Seal	USE WITH RE556213
14	15H558	2	Pipe Plug	1/8", USE WITH RE556213
15	R557734	1	Cap	USE WITH RE556213
16	U15409	2	Snap Ring	USE WITH RE556213
17	JD7760	1	Lubrication Fitting	USE WITH RE556213
18	R86105	1	V-Ring Seal	USE WITH RE556213
19	R104707	1	U-Joint Bearing Seal	-
20	T57569	2	Washer	-
21	R78233	1	Cap	-
22	JD7759	1	Lubrication Fitting	-

Universal Driveshaft, Transmission to Double Reduction Axle ( - 804100)
