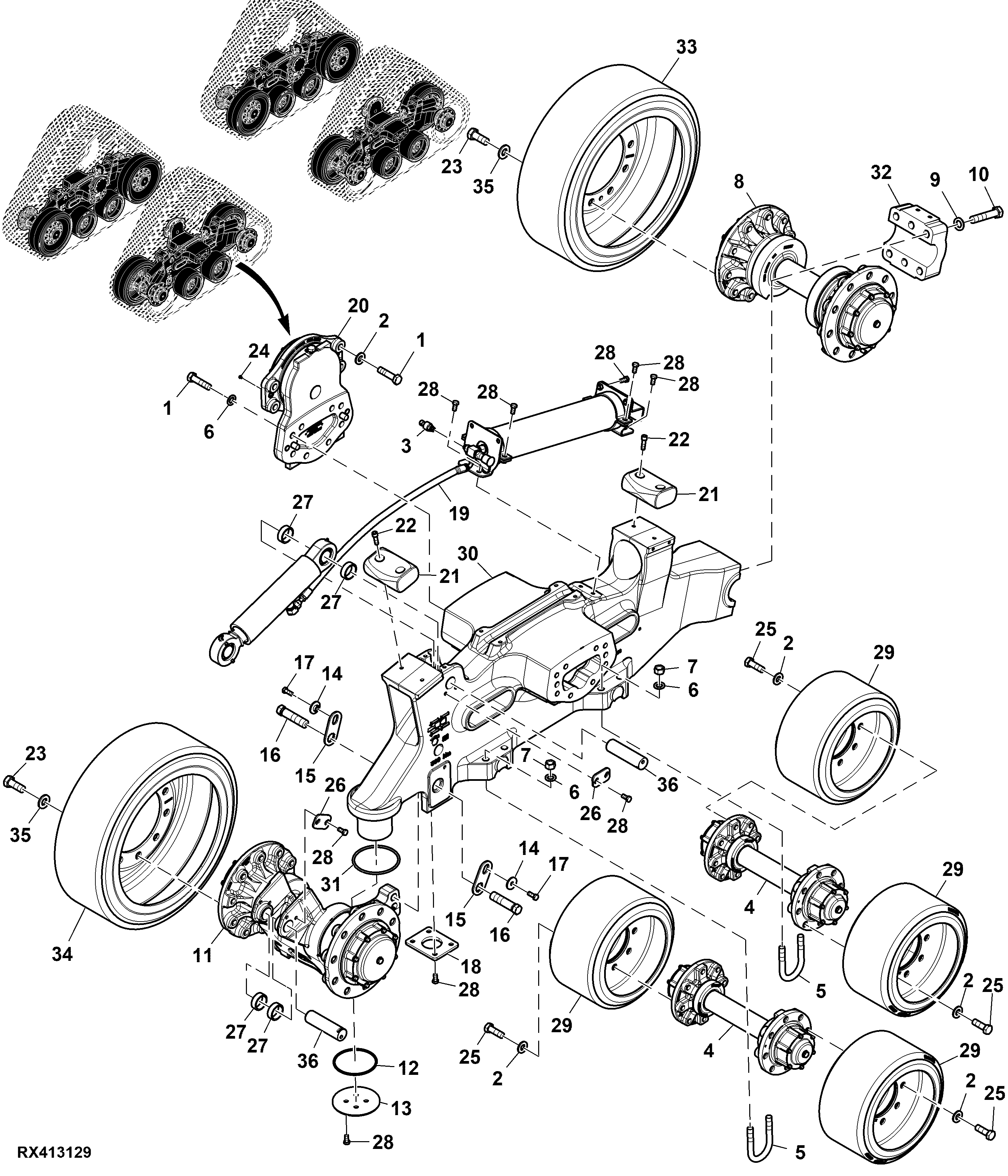

Track Frame and Support Assembly, Polyeurathane Midroller Wheel, Wide Undercarriage (Front, LH Illustrated)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M9134	48	Cap Screw	M20 X 80
2	24M7242	144	Washer	21.400 X 42 X 5 mm
3	RE204264	1	Trans Oil Pressure Sensor	B267, Front Right Track Tension Sensor (4-Track Only)
3	RE204264	1	Trans Oil Pressure Sensor	B268, Rear Left Track Tension Sensor (4-Track Only)
3	RE204264	1	Trans Oil Pressure Sensor	B269, Rear Right Track Tension Sensor (4-Track Only)
3	RE204264	1	Trans Oil Pressure Sensor	B266, Front Left Track Tension Sensor (4-Track Only)
4	RE566976	8	Spindle	-
5	R247177	16	U-Bolt	-
6	24M7344	64	Washer	22 X 37 X 3 mm
7	14M7277	32	Nut	M20
8	-	4	Part 11	Track Idler Assembly Components On Separate page
9	L113738	24	Washer	-
10	19M7903	24	Cap Screw	M24 X 120
11	-	4	Part 14	Tensionlink Assembly Components On Separate page
12	R543843	4	O-Ring	-
13	R543805	4	End Plate	-
14	R273543	8	Spacer	-
15	AT364555	8	Plate	-
16	R544379	8	Set Screw	-
17	19M8011	8	Cap Screw	M12 X 30
18	R543816	4	Plate	-
19	-	2	Part 23	RH Components On Separate page
19	-	2	Part 22	LH Components On Separate page
20	-	4	Part 24	Pivot Mounting Components On Separate page
21	R543821	8	Stop	-
22	19M8395	16	Screw	M12 X 40
23	19M7888	80	Cap Screw	M24 X 60
24	37H225	8	Screw	0.182" X 5/16"
25	19M9154	128	Cap Screw	M20 X 60
26	R136346	8	Plate	-
27	R254407	16	Spacer	-
28	19M7872	48	Cap Screw	M12 X 25
29	RE575013	16	Tire And Wheel Assembly	-
30	R552446	4	Center Frame	-
31	R553347	4	O-Ring	-
32	R551641	4	Center Frame	-
33	RE581209	4	Wheel	-
34	RE581208	4	Wheel	-
35	24M7243	80	Washer	25.400 X 50 X 6 mm
36	R254393	8	Pin	-

Track Frame and Support Assembly, Polyeurathane Midroller Wheel, Wide Undercarriage (Front, LH Illustrated)
