Открытый узел

Selective Control Valve, W/O Hitch, 6 Rear SCV, High Flow, Double Reduction Axle

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE574941	1	Cover	Number I, Green, SCV Coupler
2	RE574660	1	Cover	Number II, Blue, SCV Coupler
3	RE574942	1	Cover	Number III, Brown, SCV Coupler
4	RE574943	1	Cover	Number IV, Black, SCV Coupler
5	RE574944	1	Cover	Number V, Violet, SCV Coupler
6	RE574945	1	Cover	Number VI, Gray, SCV Coupler
7	14M7327	3	Lock Nut	M8
8	24M7095	27	Washer	8.400 X 15 X 1.600 mm
9	R266977	24	Socket Head Screw	-
10	R267667	2	Cap	-
11	R267668	2	Hose Fitting	-
12	RE272882	8	Tube	-
13	R10093	20	O-Ring	-
14	RE292728	1	Manifold	ORDER RE271469
15	RE190805	4	Diagnostic Coupling	-
16	51M7041	5	O-Ring	11.300 X 2.200 mm
17	R77175	4	Cover	-
18	R116115	1	Fitting	ALSO ORDER 51M7045; USE WITH RE292728
19	RE308284	6	Selective Control Valve	-
19	RE588375	6	Selective Control Valve	140 LPM, SUB FOR RE580227
20	RE594724	1	Manifold	-
20	RE557710	1	Manifold	ORDER RE594724
21	RE304830	1	Stud Kit	-
21	RE304819	1	Stud Kit	USE WITH BRE10168
22	64M1022	2	Drain Plug	-
23	51M7047	2	O-Ring	23.600 X 2.900 mm
24	RE46685	1	Fitting Plug	-
25	51M7043	1	O-Ring	15.300 X 2.200 mm
26	RE283453	1	Manifold	-
27	RE260570	1	Manifold	-
28	RE46684	1	Fitting Plug	-
29	RE557857	2	Tube	-
30	RE559659	1	Breakaway Coupler	Low Profile
31	RE559660	3	Breakaway Coupler	Mid Profile
32	RE559661	2	Breakaway Coupler	High Profile
33	14M7275	2	Nut	M12
34	24M7240	2	Washer	13 X 25 X 3 mm
35	T122075	2	O-Ring	-
36	R538342	1	Rod	-
37	42M7132	1	Stud	-
38	51M7045	1	O-Ring	19.300 X 2.200 mm, USE WITH RE292728
39	RE271469	1	Manifold	-

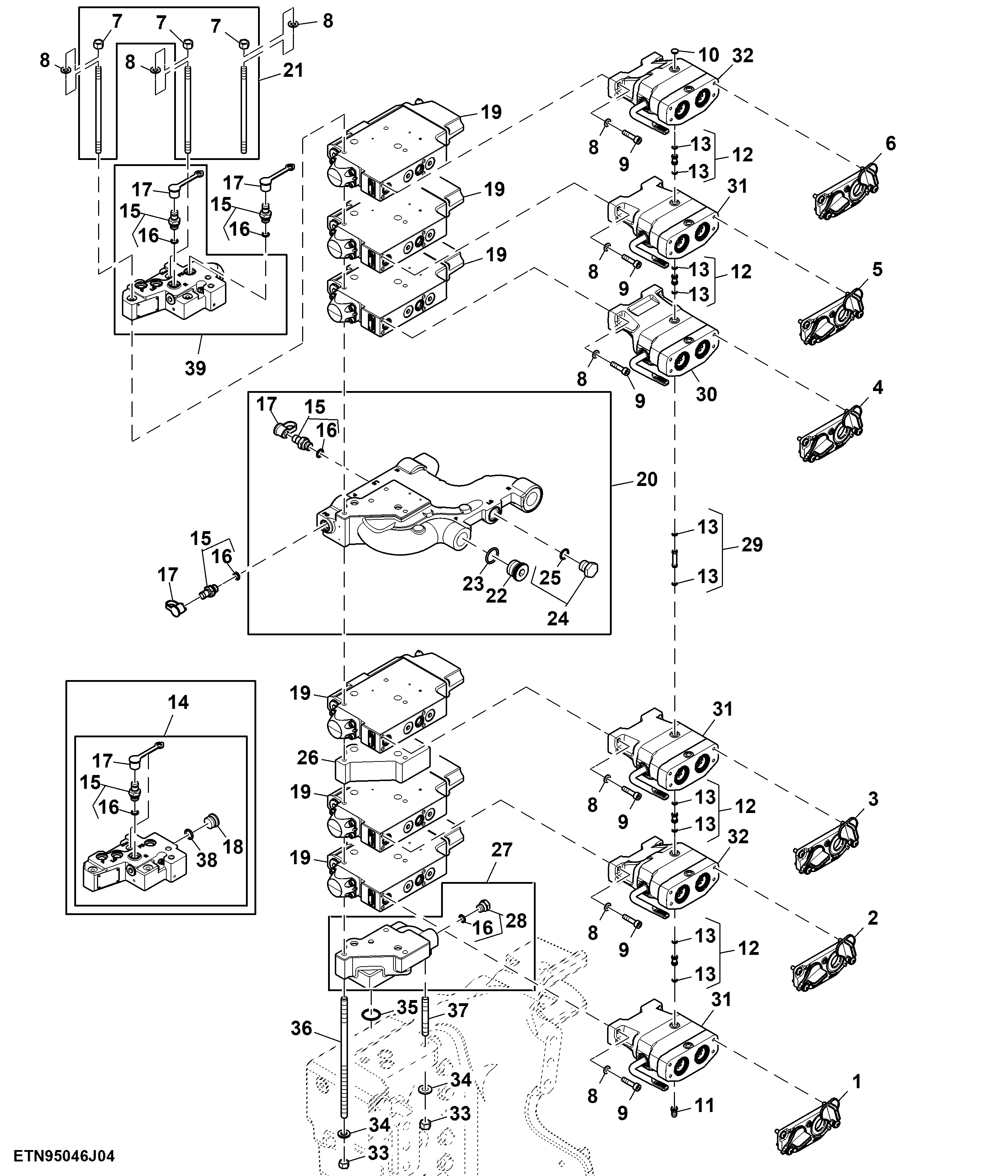

Selective Control Valve, W/O Hitch, 6 Rear SCV, High Flow, Double Reduction Axle

Нет текстового описания
