Selective Control Valve, 8 SCV W/ 3 x 3/4" Couplers (2/2) (807001 - 809011)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	51M7041	3	O-Ring	11.300 X 2.200 mm
2	RE588376	2	Selective Control Valve	170 LPM
3	RE588375	2	Selective Control Valve	140 LPM
4	RE283453	1	Manifold	-
5	RE271469	1	Manifold	-
6	RE190805	3	Diagnostic Coupling	INCLUDES 51M7041
7	R77175	3	Cover	-
8	24M7095	11	Washer	8.400 X 15 X 1.600 mm
9	14M7327	3	Lock Nut	M8
10	38H5121	4	Adapter Fitting	-
11	T77858	4	O-Ring	-
12	51M7045	4	O-Ring	19.300 X 2.200 mm
13	RE590178	2	Breakaway Coupler	-
14	R267668	2	Hose Fitting	-
15	RE559661	1	Breakaway Coupler	-
16	R266977	8	Socket Head Screw	-
17	RE272882	2	Tube	-
18	RE559660	1	Breakaway Coupler	-
19	R267667	2	Cap	-
20	RE557706	1	Manifold	-
21	RE589911	1	Stud Kit	-
22	RE589990	1	Manifold	INCLUDES RE582808
23	R28776	2	O-Ring	-
24	RE319571	2	Tube	-
25	R10093	8	O-Ring	-
26	19M10443	3	Screw	M12 X 220
27	14M7299	3	Flange Nut	M12
28	RE566926	1	Bracket	-
29	19M7790	1	Screw	M12 X 35
30	24M7242	3	Washer	21.400 X 42 X 5 mm
31	19M9135	3	Cap Screw	M20 X 100
32	RE591428	1	Support	-
33	R565648	1	Support	-
34	19M7791	2	Bolt	M12 X 40
35	19M7866	2	Screw	M8 X 20
36	RE575270	1	Cover	3/4" Coupler, Number V SCV, Violet
37	RE575271	1	Cover	3/4" Coupler, Number VI SCV, Grey
38	RE574946	1	Cover	1/2" Coupler, Number VII SCV, White
39	RE574947	1	Cover	1/2" Coupler, Number VIII SCV, Light Green
40	RE582808	1	Seal Kit	-

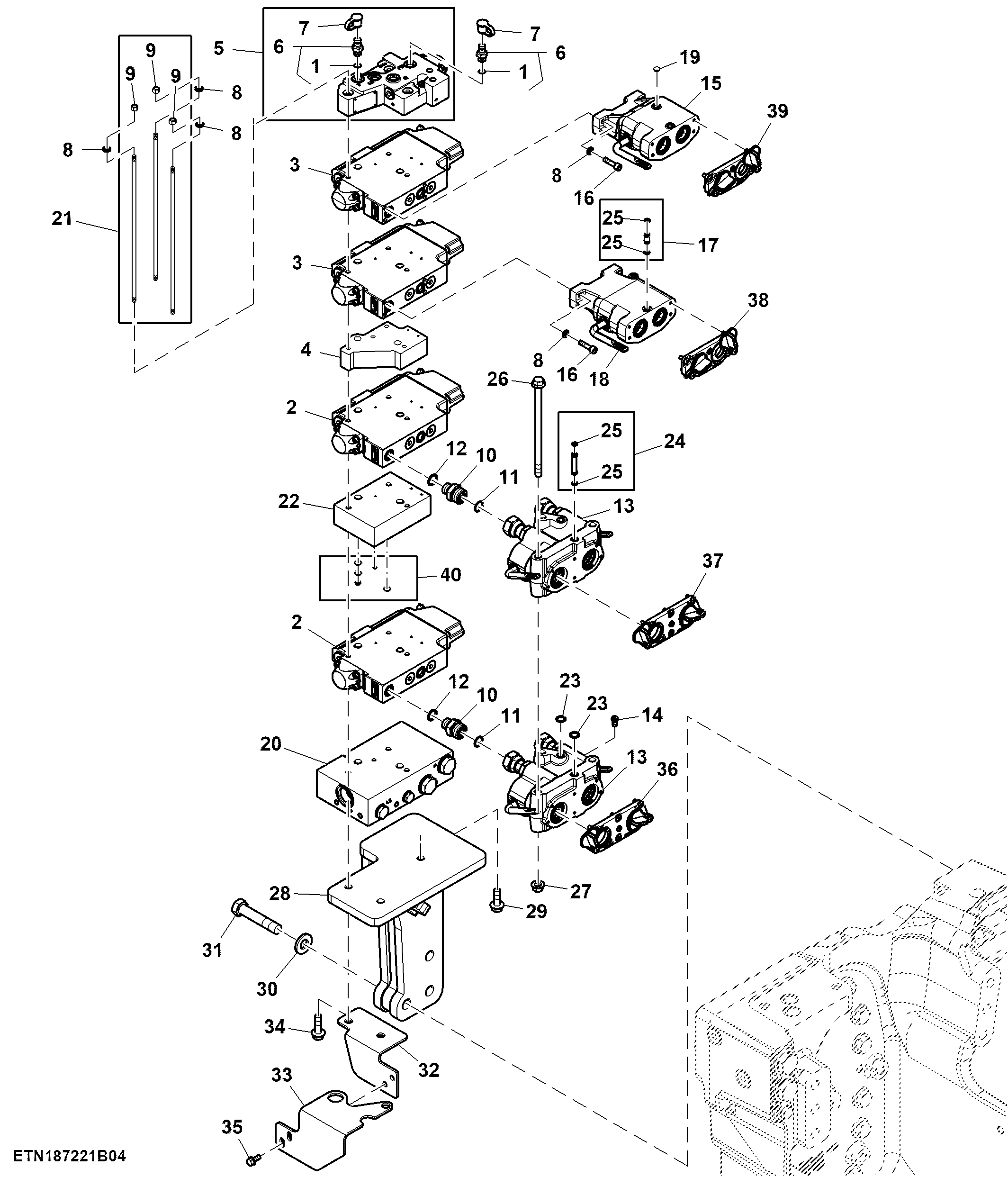

Selective Control Valve, 8 SCV W/ 3 x 3/4" Couplers (2/2) (807001 - 809011)

Нет текстового описания
