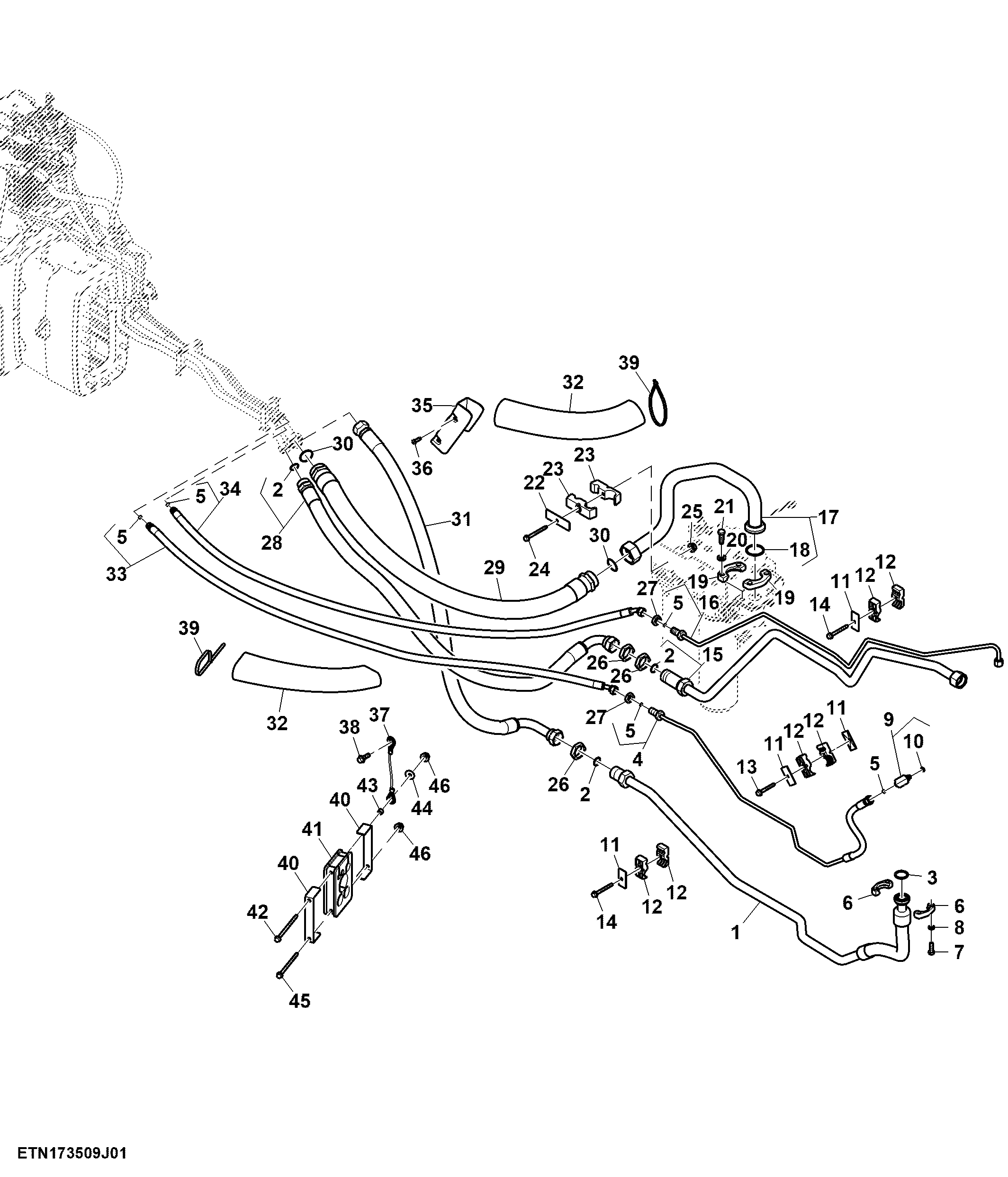

SCV Lines, High Flow, W/O Hitch, 1/2" Rear Quick Coupler, PST (2/2) (804101 - 805770)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE576775	1	Hydraulic Hose	SCV Pressure INCLUDES T78313 AND T76938
2	T76938	3	O-Ring	-
3	T78313	1	O-Ring	-
4	RE591439	1	Oil Line	Load Sense SUB FOR RE587418
5	T77613	5	O-Ring	-
6	H61354	2	Flange Fitting	-
7	19M7662	4	Cap Screw	M10 X 30
8	24M7106	4	Washer	10 X 18 X 2.500 mm
9	38H5022	1	Elbow Fitting	-
10	51M7040	1	O-Ring	9.300 X 2.200 mm
11	H112567	4	Plate	-
12	R129325	6	Clamp	-
13	19M7801	1	Screw	M8 X 60
14	19M7803	2	Screw	M8 X 70
15	RE577785	1	Oil Line	SCV Flow Pressure
16	RE580039	1	Oil Line	Flow Pump Load Sense
17	RE567130	1	Oil Line	SCV Return at Filter
18	T34248	1	O-Ring	-
19	X51H-24	2	Flange Fitting	-
20	24M7240	4	Washer	13 X 25 X 3 mm
21	19M7403	4	Cap Screw	M12 X 35
22	H114901	1	Plate	-
23	R342142	2	Block Clamp	-
24	19M8039	1	Screw	M8 X 80
25	14M7298	1	Flange Nut	M8
26	38H5095	3	Nut	1-7/16"
27	38H5091	2	Nut	11/16"
28	RE587405	1	Hydraulic Hose	SCV Supply SUB FOR RE566028
29	RE574609	1	Hydraulic Hose	SCV Return INCLUDES (2) T78784
30	T78784	2	O-Ring	-
31	RE587428	1	Hydraulic Hose	High Flow Pressure SUB FOR RE574610
32	R551064	2	Hose Guard	-
33	RE575169	1	Hydraulic Hose	High Flow Load Sense
34	RE597299	1	Hydraulic Hose	Load Sense SUB FOR APPL RE567489
35	R543914	1	Guide	-
36	21M7580	2	Socket Head Screw	M8 X 25
37	RE570861	1	Cable	-
38	R519426	1	Screw	-
39	R76477	4	Tie Band	-
40	R544978	2	Cover	-
41	R552360	1	Clamp	-
42	19M9915	1	Screw	M8 X 130
43	H159104	1	Washer	9.250 X 13.720 X 9.520 mm (0.364" X 0.540" X 3/8")
44	24H1294	1	Washer	11/32" X 1-1/8" X 1/16"
45	19M8006	1	Screw	M8 X 120
46	14M7573	2	Flange Nut	M8

SCV Lines, High Flow, W/O Hitch, 1/2" Rear Quick Coupler, PST (2/2) (804101 - 805770)
