Открытый узел

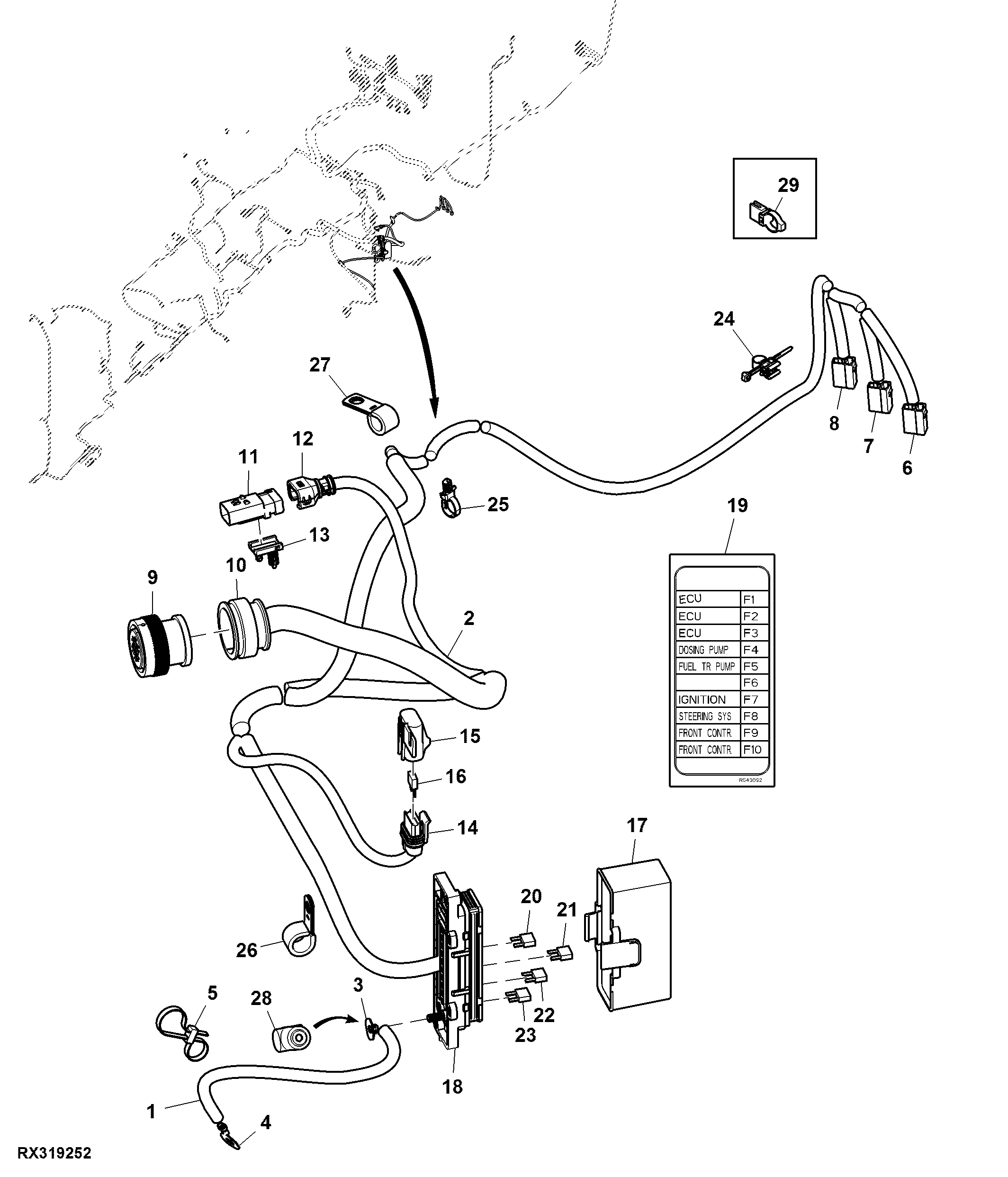

Load Center Wiring Harness, 13.5 L, T2 / T3 Engine

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE575979	1	Wiring Harness	-
2	RE575285	1	Chassis Wiring Harness	-
2	RE583611	1	Chassis Wiring Harness	-
2	RE586851	1	Chassis Wiring Harness	-
3	57M11530	1	Elec. Connector Terminal	FEXX-L1, Load Center Power
4	57M8866	1	Elec. Connector Terminal	KSW2
5	57M10421	1	Elec. Connector Accessory	-
6	57M7144	1	Elec. Connector Housing	M01, Front Washer Pump
6	RWA11076	1	Repair Wire Assembly	-
7	57M7144	1	Elec. Connector Housing	M02, Rear Washer Pump
7	RWA11076	1	Repair Wire Assembly	-
8	57M7144	1	Elec. Connector Housing	M03, Right Washer Pump
8	RWA11076	1	Repair Wire Assembly	-
9	57M9514	1	Elec. Connector Housing	X340B, Chassis Interconnect
9	RWA11058	1	Repair Wire Assembly	Cavity 4, 6, 7, 15, 21, 22, 23, 27
10	57M9383	1	Elec. Connector Accessory	-
11	57M9784	1	Elec. Connector Housing	X339B
11	RWA11025	1	Repair Wire Assembly	Cavity 2, 3
12	57M9838	1	Elec. Connector Accessory	-
13	57M9940	1	Elec. Connector Accessory	-
14	RWA11093	1	Repair Wire Assembly	-
14	57M8267	1	Elec. Connector Housing	FE12
15	57M8487	1	Electrical Connector Cap	-
16	57M7688	1	Fuse	5 A
17	RE554428	1	Cover	-
18	RE554429	1	Fuse Holder	FEXX, Load Center
18	RWA11045	1	Repair Wire Assembly	Cavity B4, B7, B9, B10
19	R543092	1	Label	-
20	57M7691	1	Fuse	20 A, B4, F2, ECU
21	57M7689	1	Fuse	10 A, B7, F5, Fuel Transfer Pump / DEF
22	57M7689	1	Fuse	10 A, B9, F7, Keyswitch
23	57M7690	1	Fuse	15 A, B10, F8, Steering Controller
24	AH225363	1	Clip	USE WITH RE583611 OR RE586851
25	57M10233	1	Tie Band	USE WITH RE575285 OR RE586851
26	57M12137	2	Clamp	SUB FOR 57M10837; USE WITH RE583611
26	57M12137	1	Clamp	SUB FOR 57M10837; USE WITH RE575285 OR RE586851
27	57M13293	1	Clamp	USE WITH RE583611
28	57M12177	1	Elec. Connector Accessory	-
29	57M10362	1	Clamp	USE WITH RE575285

Load Center Wiring Harness, 13.5 L, T2 / T3 Engine

Нет текстового описания
