Открытый узел

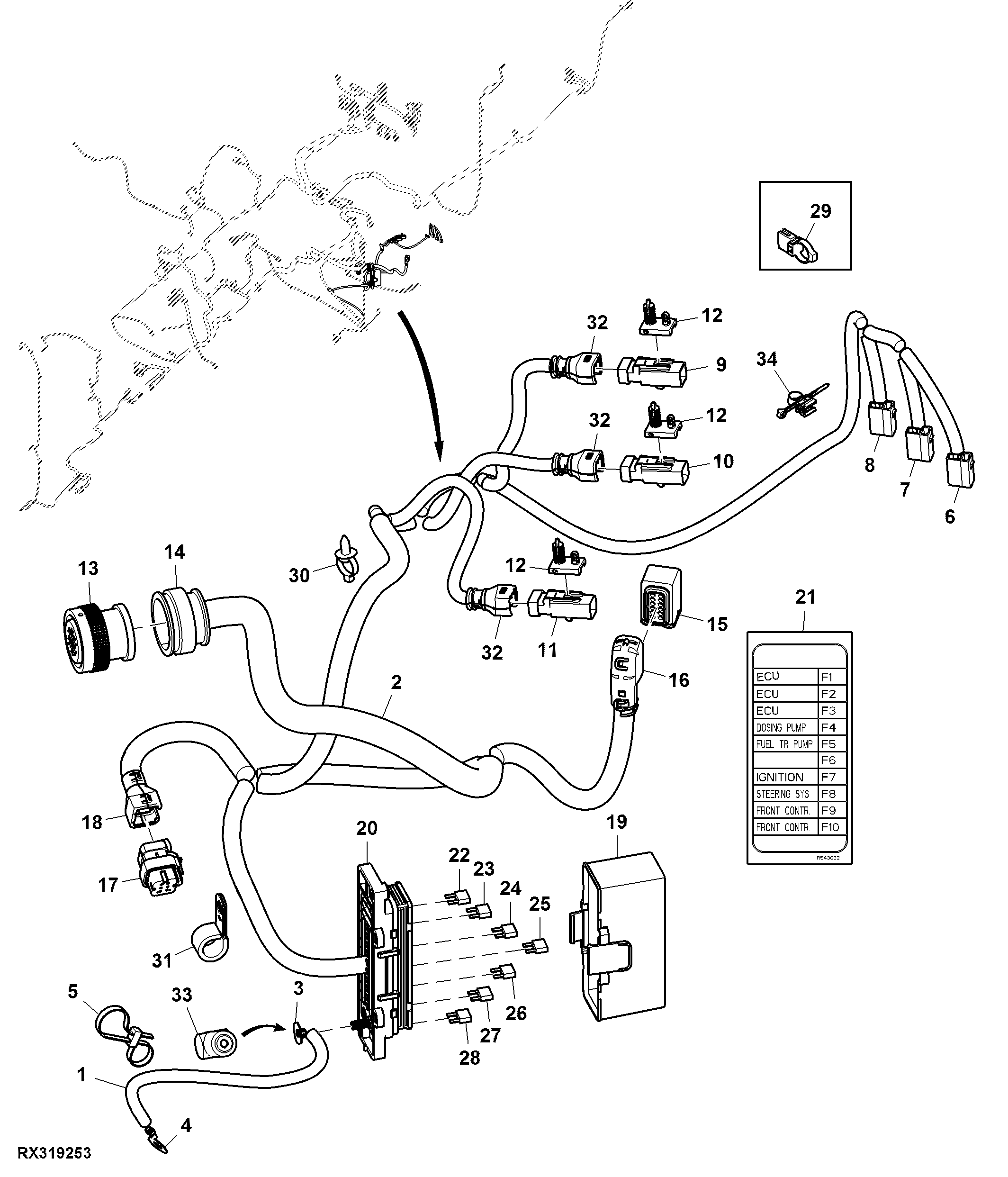

Load Center Wiring Harness, 13.5 L FT4 Engine ( - 801999)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE575979	1	Wiring Harness	-
2	RE577277	1	Chassis Wiring Harness	-
2	RE586850	1	Chassis Wiring Harness	-
3	57M11530	1	Elec. Connector Terminal	FEXX-L1, Load Center Power
4	57M8866	1	Elec. Connector Terminal	KSW2
5	57M10421	1	Elec. Connector Accessory	-
6	57M7144	1	Elec. Connector Housing	M01, Front Washer Pump
6	RWA11076	2	Repair Wire Assembly	-
7	57M7144	1	Elec. Connector Housing	M02, Rear Washer Pump
7	RWA11076	2	Repair Wire Assembly	-
8	57M7144	1	Elec. Connector Housing	M03, Right Washer Pump
8	RWA11076	2	Repair Wire Assembly	-
9	57M9776	1	Elec. Connector Housing	E5602, DEF Fluid Line Heaters - Suction Line
10	57M9778	1	Elec. Connector Housing	E5603, DEF Fluid Line Heaters - Return Line
11	57M9777	1	Elec. Connector Housing	E5601, DEF Fluid Line Heaters - Pressure Line
12	57M9940	3	Elec. Connector Accessory	-
13	57M9514	1	Elec. Connector Housing	X340B, Chassis Interconnect
13	RWA11058	31	Repair Wire Assembly	-
14	57M9383	1	Elec. Connector Accessory	-
15	57M10958	1	Elec. Connector Housing	B5501, SCR Supply Module
15	RWA10718	10	Repair Wire Assembly	Cavity 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
16	57M11439	1	Elec. Connector Accessory	-
17	RWA11027	5	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
17	57M9788	1	Elec. Connector Housing	A5507, Assembly DEF Tank Header (Fluid Level and Temperature)
18	57M9841	1	Elec. Connector Accessory	-
19	RE554428	1	Cover	-
20	RE554429	1	Fuse Holder	FEXX, Load Center
20	RWA11045	7	Repair Wire Assembly	Cavity B10, B3, B4, B5, B6, B7, B9
21	R543092	1	Label	-
22	57M7691	1	Fuse	20 A, B3, F1, ECU
23	57M7691	1	Fuse	20 A, B4, F2, ECU
24	57M7691	1	Fuse	20 A, B5, F3, ECU / DEF Headers
25	57M7690	1	Fuse	15 A, B6, F4, Dosing Pump/After-Treatment
26	57M7690	1	Fuse	15 A, B7, F5, Fuel Transfer Pump / DEF
27	57M7689	1	Fuse	10 A, B9, F7, Keyswitch
28	57M7690	1	Fuse	15 A, B10, F8, Steering Controller
29	57M10362	1	Clamp	USE WITH RE577277
30	57M10233	1	Tie Band	-
31	57M12137	1	Clamp	SUB FOR 57M10837
32	57M9837	3	Elec. Connector Accessory	-
33	57M12177	1	Elec. Connector Accessory	-
34	AH225363	1	Clip	USE WITH RE586850

Load Center Wiring Harness, 13.5 L FT4 Engine ( - 801999)

Нет текстового описания
