Hydraulic Pump Lines, High Flow, W/O PTO (1/2) ( - 800140)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7662	12	Cap Screw	M10 X 30
2	19M8011	20	Cap Screw	M12 X 30
3	24M7047	20	Washer	13 X 24 X 2.500 mm
4	24M7106	12	Washer	10 X 18 X 2.500 mm
5	RE342016	1	Line	-
6	19M7867	1	Screw	M8 X 25
7	38H5020	1	Elbow Fitting	-
8	51M7048	2	O-Ring	29.600 X 2.900 mm
9	T76938	2	O-Ring	-
10	H114901	1	Plate	-
11	X51H-24	10	Flange Fitting	-
12	H61354	4	Flange Fitting	-
13	38H5005	1	Adapter Fitting	-
14	T77858	3	O-Ring	-
15	51M7047	2	O-Ring	23.600 X 2.900 mm
16	R29424	2	Flange Fitting	-
17	CB11489177	1	Clamp	-
18	19M7866	2	Screw	M8 X 20
19	38H5019	1	Elbow Fitting	-
20	R125346	2	Clamp	-
21	R46667	1	Clamp	-
22	RE568376	1	Oil Line	-
23	RE567116	1	Oil Line	-
24	38H5004	1	Adapter Fitting	-
25	T77932	3	O-Ring	-
26	51M7045	2	O-Ring	19.300 X 2.200 mm
27	H150222	2	Hose Clamp	-
28	19M8039	1	Screw	M8 X 80
29	RE568218	1	Line	-
30	RE571593	1	Oil Line	-
31	T59014	1	O-Ring	-
32	19M7807	1	Screw	M10 X 60
33	R553314	1	Clamp	-
34	R553318	1	Bracket	-
35	RE575362	1	Hydraulic Hose	-
36	RE576814	1	Oil Line	ORDER RE579369
36	RE579369	1	Oil Line	-
37	RE576812	1	Oil Line	ORDER RE579367
37	RE579367	1	Oil Line	-
38	RE576813	1	Oil Line	ORDER RE579370
38	RE579370	1	Oil Line	-
39	R191781	1	Hose Clamp	-
40	RE576815	1	Hydraulic Hose	ORDER RE579368
40	RE579368	1	Hydraulic Hose	-
41	RE575875	1	Oil Line	ORDER RE579388
41	RE579388	1	Oil Line	-
42	T102934	2	Clamp	-
43	H121166	1	Plate	-
44	19M7801	1	Screw	M8 X 60
45	RE576757	1	Oil Line	-
46	RE46689	1	Fitting Plug	-
47	38H5124	1	Tee Fitting	-
48	R77175	1	Cover	-
49	RE567607	1	Oil Line	-
50	RE575360	1	Hydraulic Hose	-
51	RE60702	1	Diagnostic Coupling	-
52	T78313	1	O-Ring	-
53	T34248	1	O-Ring	-
54	51M7065	4	O-Ring	47.219 X 3.531 mm

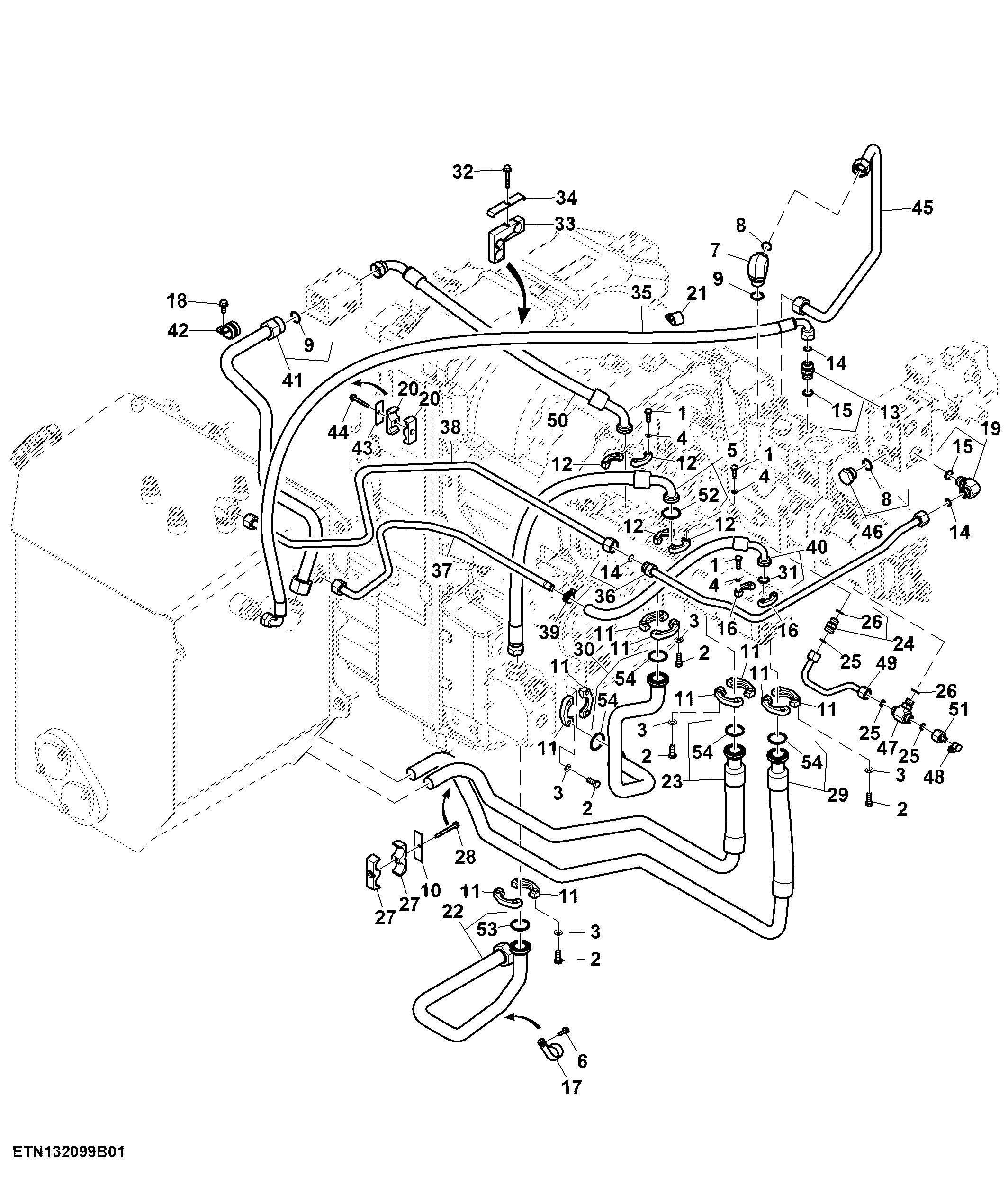

Hydraulic Pump Lines, High Flow, W/O PTO (1/2) ( - 800140)

Нет текстового описания
