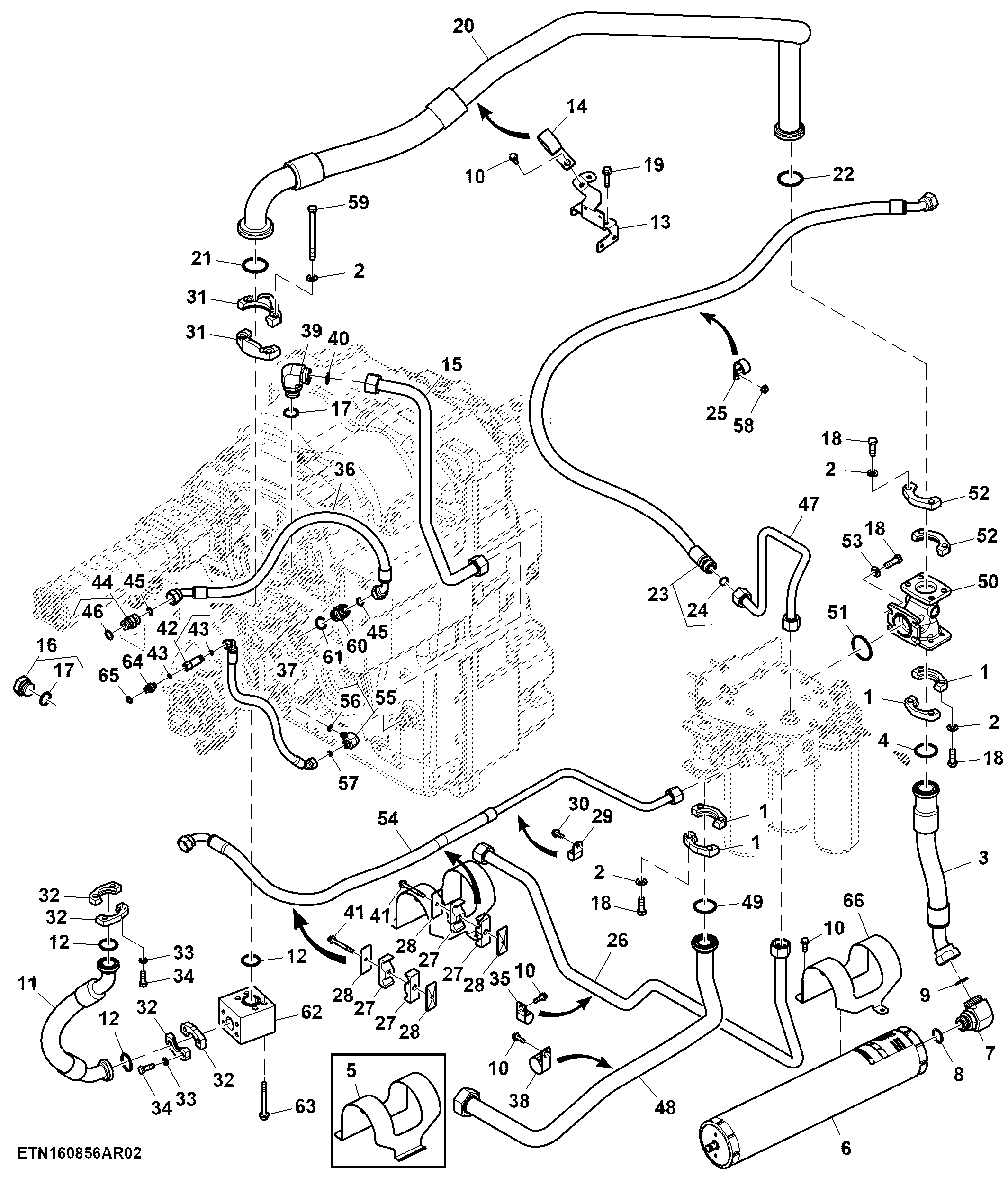

Hydraulic Pump Lines, 90cc Pump (For Scraper) (For EU28+) (1/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	X51H-24	4	Flange Fitting	-
2	24M7047	16	Washer	13 X 24 X 2.500 mm
3	RE569827	1	Hydraulic Hose	INCLUDES 51M7065
4	51M7065	1	O-Ring	47.219 X 3.531 mm
5	R550500	1	Clamp	ORDER R571911
6	RE332185	1	Hydraulic Accumulator	-
7	38H1053	1	Elbow Fitting	-
8	R29936	1	O-Ring	-
9	T78612	1	O-Ring	-
10	19M7867	5	Screw	M8 X 25
11	RE574890	1	Hydraulic Hose	INCLUDES (2) T78393
12	T78393	3	O-Ring	-
13	RE580724	1	Support	-
14	R530587	1	Hose Clamp	-
15	RE576757	1	Oil Line	-
16	RE46689	1	Fitting Plug	-
17	51M7048	2	O-Ring	29.600 X 2.900 mm
18	19M7403	16	Cap Screw	M12 X 35
19	19M7804	1	Screw	M10 X 40
20	RE580926	1	Oil Line	INCLUDES U12331 AND U46457
21	U12331	1	O-Ring	-
22	U46457	1	O-Ring	-
23	RE567487	1	Hydraulic Hose	INCLUDES T77858
24	T77858	1	O-Ring	-
25	R109479	1	Clamp	-
26	RE567155	1	Oil Line	-
27	R125346	6	Clamp	-
28	R125347	6	Plate	-
29	T24959	1	Clamp	-
30	19M7866	1	Screw	M8 X 20
31	T195864	2	Flange Fitting	-
32	R29867	4	Flange Fitting	-
33	24M7106	8	Washer	10 X 18 X 2.500 mm
34	19M7662	8	Cap Screw	M10 X 30
35	R72659	1	Clamp	-
36	RE567471	1	Hydraulic Hose	-
37	RE567175	1	Hydraulic Hose	-
38	CB11489177	1	Clamp	-
39	38H5020	1	Elbow Fitting	-
40	T76938	1	O-Ring	-
41	19M7803	3	Screw	M8 X 70
42	RE264764	1	Check Valve	-
43	T77814	1	O-Ring	-
44	38H5004	1	Adapter Fitting	INCLUDES 51M7045
45	T77932	2	O-Ring	-
46	51M7045	1	O-Ring	19.300 X 2.200 mm
47	RE567154	1	Line	-
48	RE571214	1	Oil Line	INCLUDES T34248
49	T34248	1	O-Ring	-
50	R546363	1	Flange Fitting	-
51	51M7066	1	O-Ring	56.744 X 3.531 mm
52	R37023	2	Flange Fitting	-
53	24M7623	4	Washer	13 X 24 X 2.500 mm
54	RE571685	1	Oil Line	-
55	38H5022	1	Elbow Fitting	INCLUDES 51M7040
56	51M7040	1	O-Ring	9.300 X 2.200 mm
57	T77613	1	O-Ring	-
58	14M7298	1	Flange Nut	M8
59	19M8061	4	Cap Screw	M12 X 140
60	38H5152	1	Adapter Fitting	-
61	51M7047	1	O-Ring	23.600 X 2.900 mm
62	R552894	1	Manifold	-
63	19M7811	4	Screw	M10 X 90
64	38H5011	1	Adapter Fitting	-
65	51M7041	1	O-Ring	11.300 X 2.200 mm
66	R571911	1	Clamp	-

Hydraulic Pump Lines, 90cc Pump (For Scraper) (For EU28+) (1/2)

Нет текстового описания
