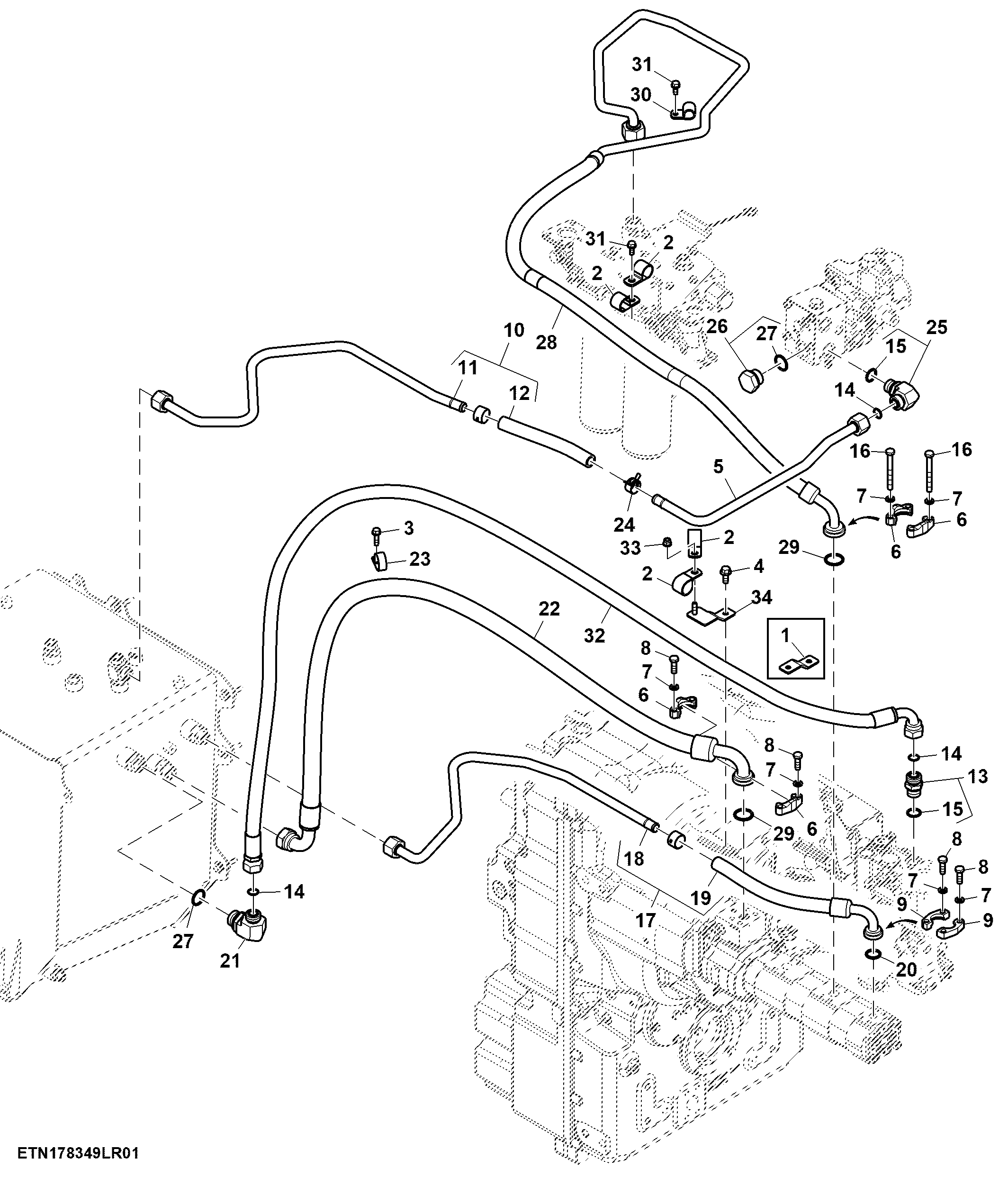

Hydraulic Lines, Standard Flow, W/ PTO, Double Reduction Axle (1/3) (804101 - 809001)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE586913	1	Bracket	ORDER RE590545
2	R46667	4	Clamp	-
3	19M7868	1	Screw	M8 X 30
4	19M7785	1	Screw	M10 X 25
5	RE579369	1	Oil Line	Zero Pressure Manifold Return
6	H61354	4	Flange Fitting	-
7	24M7106	12	Washer	10 X 18 X 2.500 mm
8	19M7662	8	Cap Screw	M10 X 30
9	R29424	2	Flange Fitting	-
10	RE579392	1	Oil Line	Zero Pressure Manifold Return
11	RE579370	1	Oil Line	Low Pressure Manifold Return
12	RE579384	1	Hydraulic Hose	Suspension Cab Low Pressure Manifold to Reservoir
13	38H5005	1	Adapter Fitting	-
14	T77858	3	O-Ring	-
15	51M7047	2	O-Ring	23.600 X 2.900 mm
16	19M8183	4	Cap Screw	M10 X 90
17	RE582845	1	Oil Line	Front Axle Scavenge Pump Outlet
18	RE579367	1	Oil Line	Front Axle Scavenge Return
19	RE582844	1	Hydraulic Hose	Front Axle Scavenge Pump Outlet INCLUDES T59014
20	T59014	1	O-Ring	-
21	38H5013	1	Adapter Fitting	USE WITH RE575362
21	38H5403	1	Adapter Fitting	USE WITH RE590460
22	RE580134	1	Hydraulic Hose	Transmission Scavenge Pump Return INCLUDES T78313
23	57M10314	1	Half Clamp	-
24	R191781	1	Hose Clamp	-
25	38H5019	1	Elbow Fitting	-
26	RE46689	1	Fitting Plug	-
27	51M7048	2	O-Ring	29.600 X 2.900 mm
28	RE587406	1	Oil Line	Pump Outlet Axle Supply INCLUDES T78313
29	T78313	2	O-Ring	-
30	R73291	1	Clamp	-
31	19M7866	2	Screw	M8 X 20
32	RE590460	1	Hydraulic Hose	Cooler Bypass to Reservoir SUB FOR RE575362
33	14M7396	1	Lock Nut	M8
34	RE590545	1	Bracket	-

Hydraulic Lines, Standard Flow, W/ PTO, Double Reduction Axle (1/3) (804101 - 809001)
