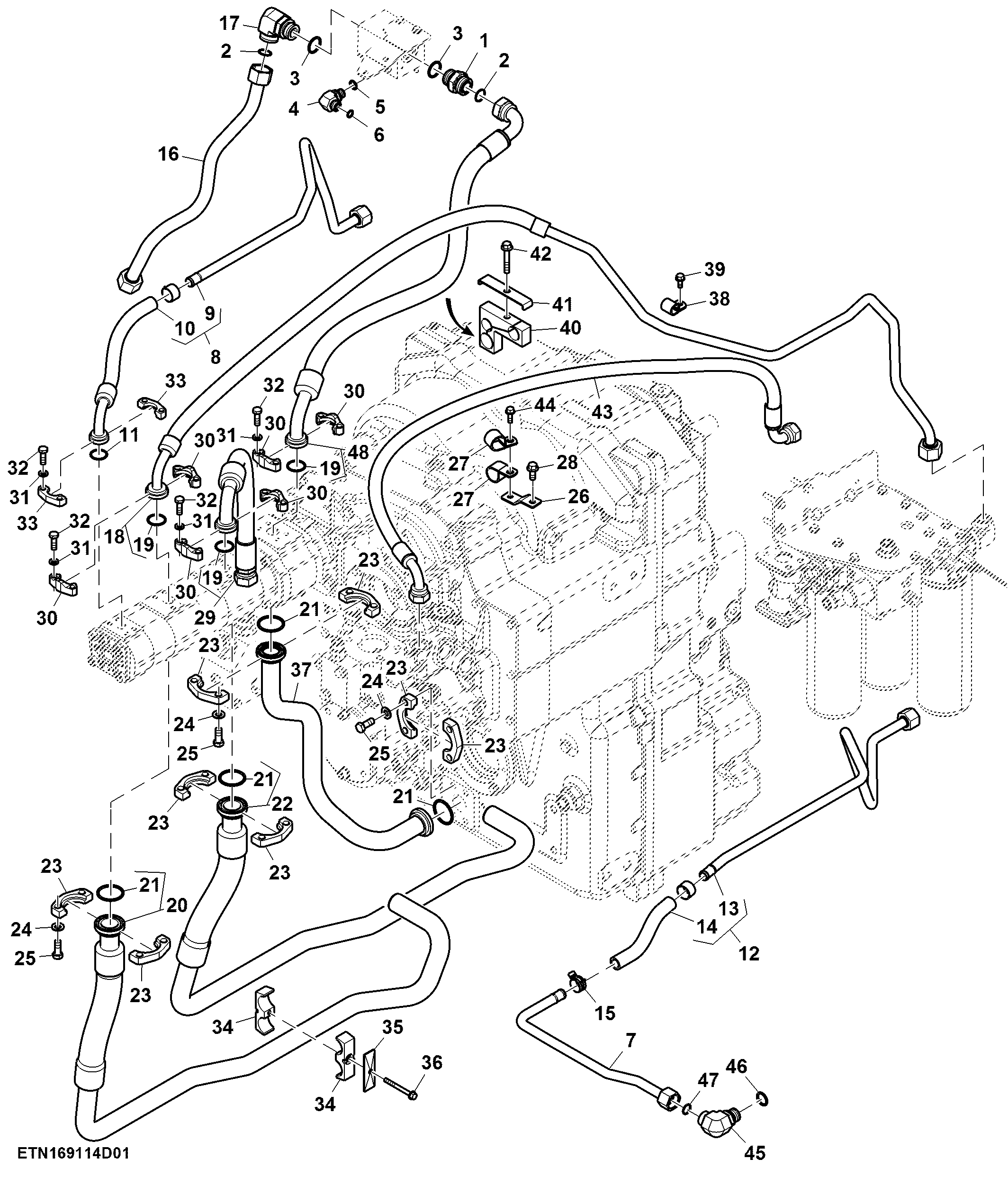

Hydraulic Lines, Standard Flow, W/ PTO, Double Reduction Axle (1/2) (801461 - 804100)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H5006	1	Adapter Fitting	INCLUDES 51M7048
2	T76938	2	O-Ring	-
3	51M7048	2	O-Ring	29.600 X 2.900 mm
4	38H5017	1	Elbow Fitting	-
5	51M7043	1	O-Ring	15.300 X 2.200 mm
6	T77857	1	O-Ring	-
7	RE579369	1	Oil Line	-
8	RE582845	1	Oil Line	-
9	RE579367	1	Oil Line	-
10	RE582844	1	Hydraulic Hose	INCLUDES T59014
11	T59014	1	O-Ring	-
12	RE579392	1	Oil Line	-
13	RE579370	1	Oil Line	-
14	RE579384	1	Hydraulic Hose	-
15	R191781	1	Hose Clamp	-
16	RE584449	1	Oil Line	PTO Lube Valve to Reservoir
17	38H5020	1	Elbow Fitting	-
18	RE584925	1	Oil Line	-
19	T78313	3	O-Ring	-
20	RE568218	1	Line	-
21	51M7065	4	O-Ring	47.219 X 3.531 mm
22	RE567116	1	Oil Line	-
23	X51H-24	8	Flange Fitting	-
24	24M7047	16	Washer	13 X 24 X 2.500 mm
25	19M8011	16	Cap Screw	M12 X 30
26	RE575898	1	Bracket	-
27	R46667	2	Clamp	-
28	19M7785	1	Screw	M10 X 25
29	RE342016	1	Line	-
30	H61354	6	Flange Fitting	-
31	24M7106	16	Washer	10 X 18 X 2.500 mm
32	19M7662	16	Cap Screw	M10 X 30
33	R29424	2	Flange Fitting	-
34	H150222	2	Hose Clamp	-
35	H114901	1	Plate	-
36	19M8039	1	Screw	M8 X 80
37	RE571593	1	Oil Line	INCLUDES (2) 51M7065
38	R73291	1	Clamp	-
39	19M7866	1	Screw	M8 X 20
40	R553314	1	Clamp	-
41	R553318	1	Bracket	-
42	19M7807	1	Screw	M10 X 60
43	RE575362	1	Hydraulic Hose	-
44	19M7867	1	Screw	M8 X 25
45	38H5019	1	Elbow Fitting	INCLUDES 51M7047
46	51M7047	1	O-Ring	23.600 X 2.900 mm
47	T77858	1	O-Ring	-
48	RE575360	1	Hydraulic Hose	-

Hydraulic Lines, Standard Flow, W/ PTO, Double Reduction Axle (1/2) (801461 - 804100)

Нет текстового описания
