Открытый узел

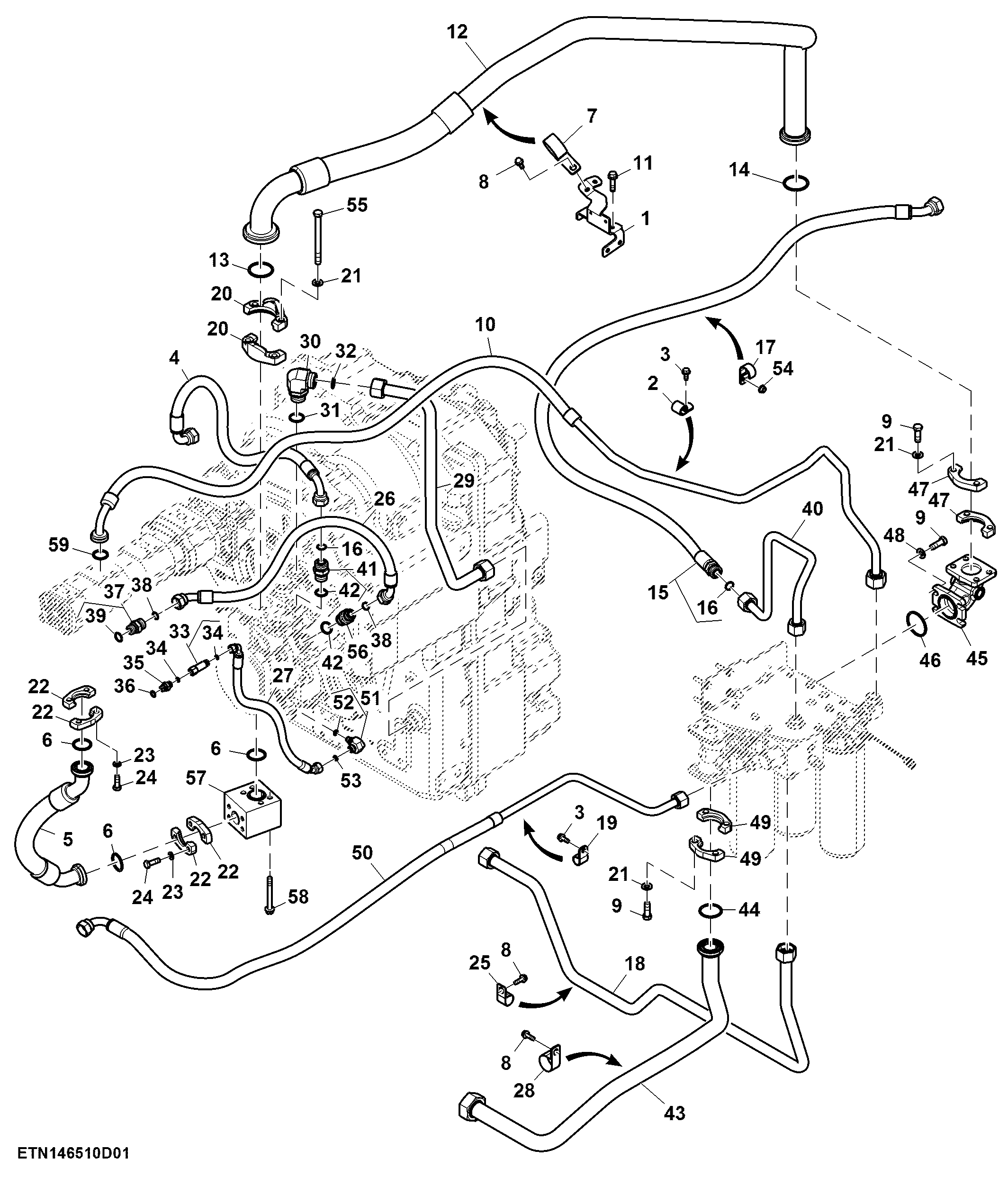

Hydraulic Lines, Standard Flow, W/ PTO, Double Reduction Axle (1/2) ( - 801460)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE580724	1	Support	-
2	R73291	1	Clamp	-
3	19M7866	2	Screw	M8 X 20
4	RE575362	1	Hydraulic Hose	-
5	RE574890	1	Hydraulic Hose	INCLUDES (2) T78393
6	T78393	3	O-Ring	-
7	R530587	1	Hose Clamp	-
8	19M7867	3	Screw	M8 X 25
9	19M7403	12	Cap Screw	M12 X 35
10	RE579600	1	Oil Line	INCLUDES T78313
11	19M7804	1	Screw	M10 X 40
12	RE580926	1	Oil Line	INCLUDES U12331 AND U46457
13	U12331	1	O-Ring	-
14	U46457	1	O-Ring	-
15	RE567487	1	Hydraulic Hose	-
16	T77858	2	O-Ring	-
17	R109479	1	Clamp	-
18	RE567155	1	Oil Line	-
19	T24959	1	Clamp	-
20	T195864	2	Flange Fitting	-
21	24M7047	12	Washer	13 X 24 X 2.500 mm
22	R29867	4	Flange Fitting	-
23	24M7106	8	Washer	10 X 18 X 2.500 mm
24	19M7662	8	Cap Screw	M10 X 30
25	R72659	1	Clamp	-
26	RE567471	1	Hydraulic Hose	-
27	RE567175	1	Hydraulic Hose	-
28	CB11489177	1	Clamp	-
29	RE576757	1	Oil Line	-
30	38H5020	1	Elbow Fitting	-
31	51M7048	1	O-Ring	29.600 X 2.900 mm
32	T76938	1	O-Ring	-
33	RE264764	1	Check Valve	-
34	T77814	2	O-Ring	-
35	38H5011	1	Adapter Fitting	-
36	51M7041	1	O-Ring	11.300 X 2.200 mm
37	38H5004	1	Adapter Fitting	INCLUDES 51M7045
38	T77932	2	O-Ring	-
39	51M7045	1	O-Ring	19.300 X 2.200 mm
40	RE567154	1	Line	-
41	38H5005	1	Adapter Fitting	INCLUDES 51M7047
42	51M7047	2	O-Ring	23.600 X 2.900 mm
43	RE581160	1	Oil Line	INCLUDES T34248; SUB FOR RE571214 APPL
44	T34248	1	O-Ring	-
45	R546365	1	Flange Fitting	-
46	51M7066	1	O-Ring	56.744 X 3.531 mm
47	R37023	2	Flange Fitting	-
48	24M7623	4	Washer	13 X 24 X 2.500 mm
49	X51H-24	2	Flange Fitting	-
50	RE571685	1	Oil Line	-
51	38H5022	1	Elbow Fitting	INCLUDES 51M7040
52	51M7040	1	O-Ring	9.300 X 2.200 mm
53	T77613	1	O-Ring	-
54	14M7298	1	Flange Nut	M8
55	19M8061	4	Cap Screw	M12 X 140
56	38H5152	1	Adapter Fitting	-
57	R552894	1	Manifold	-
58	19M7811	4	Screw	M10 X 90
59	T78313	1	O-Ring	-

Hydraulic Lines, Standard Flow, W/ PTO, Double Reduction Axle (1/2) ( - 801460)

Нет текстового описания
