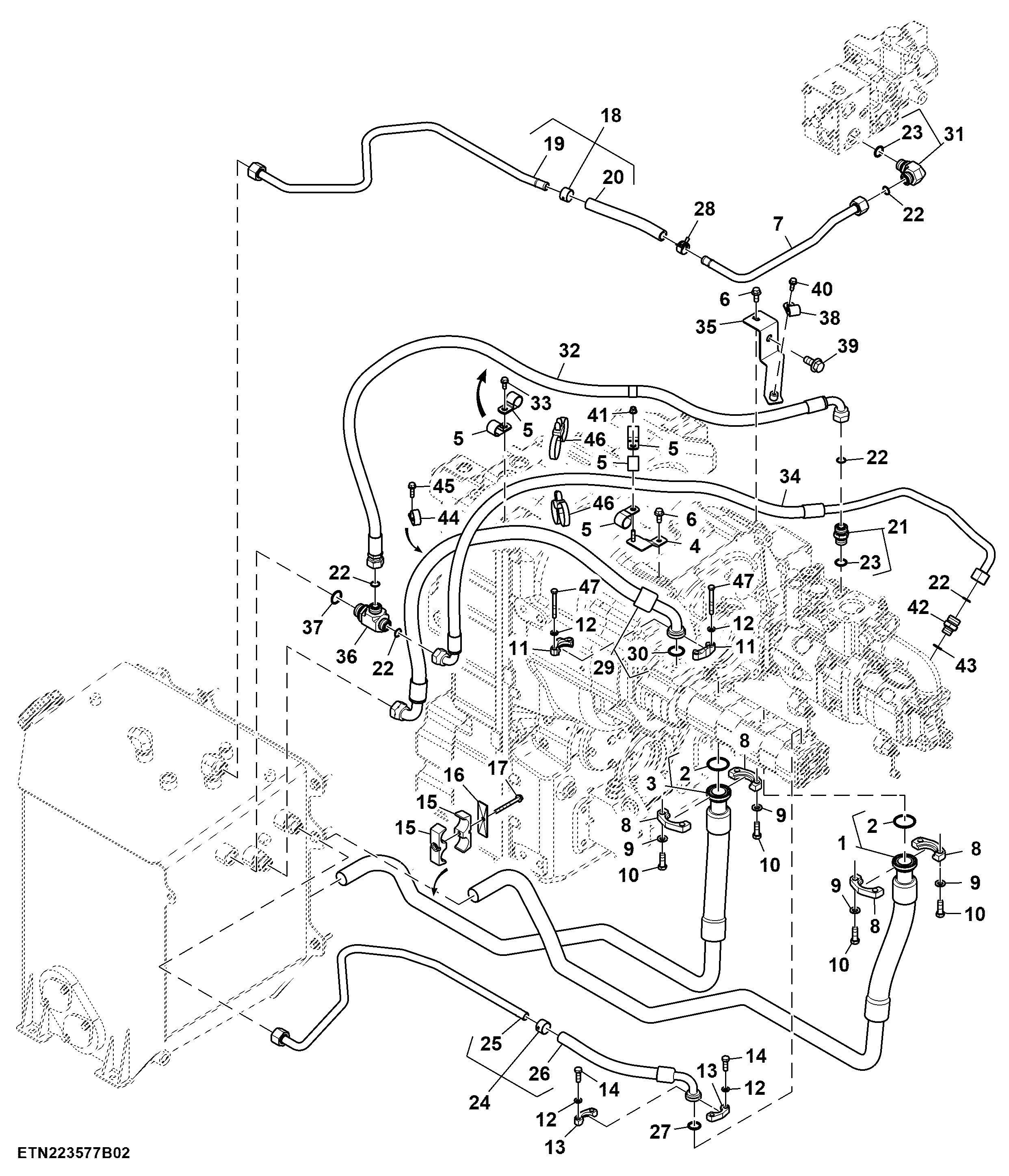

Hydraulic Lines, High Flow, W/ PTO, Double Reduction Axle (2/3) (809003 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE568218	1	Line	Pump to Reservoir
2	51M7065	2	O-Ring	47.219 X 3.531 mm
3	RE567116	1	Oil Line	Reservoir to Pump
4	RE590545	1	Bracket	-
5	R46667	5	Clamp	-
6	19M7785	2	Screw	M10 X 25
7	RE579369	1	Oil Line	Reservoir to Priority Valve
8	X51H-24	4	Flange Fitting	-
9	24M7047	8	Washer	13 X 24 X 2.500 mm
10	19M7403	8	Cap Screw	M12 X 35
11	H61354	2	Flange Fitting	-
12	24M7106	8	Washer	10 X 18 X 2.500 mm
13	R29424	2	Flange Fitting	-
14	19M7662	4	Cap Screw	M10 X 30
15	H150222	2	Hose Clamp	-
16	H114901	1	Plate	-
17	19M8039	1	Screw	M8 X 80
18	RE579392	1	Oil Line	Reservoir to Priority Valve
19	RE579370	1	Oil Line	Low Pressure Manifold Return
20	RE579384	1	Hydraulic Hose	Low Pressure Manifold to Reservoir
21	38H5005	1	Adapter Fitting	-
22	T77858	5	O-Ring	-
23	51M7047	2	O-Ring	23.600 X 2.900 mm
24	RE582845	1	Oil Line	Front Axle Scavenge to Top of Reservoir
25	RE579367	1	Oil Line	Scavenge Return
26	RE582844	1	Hydraulic Hose	Scavenge Pump Outlet INCLUDES T59014
27	T59014	1	O-Ring	-
28	R191781	1	Hose Clamp	-
29	RE580134	1	Hydraulic Hose	Reservoir to Transmission Scavenge Pump
30	T78313	1	O-Ring	-
31	38H5019	1	Elbow Fitting	-
32	RE590460	1	Hydraulic Hose	Reservoir to Cooler Bypass
33	19M7866	1	Screw	M8 X 20
34	RE590498	1	Oil Line	Reservoir to Pump Case Drain
35	RE592182	1	Bracket	SUB FOR RE590499
36	38H5405	1	Tee Fitting	-
37	51M7048	1	O-Ring	29.600 X 2.900 mm
38	R73291	1	Clamp	-
39	19M7843	1	Screw	M16 X 35
40	19M7867	1	Screw	M8 X 25
41	14M7396	1	Lock Nut	M8
42	38H5121	1	Adapter Fitting	-
43	51M7045	1	O-Ring	19.300 X 2.200 mm
44	57M10314	1	Half Clamp	-
45	19M7868	1	Screw	M8 X 30
46	57M12741	2	Elec. Connector Accessory	-
47	19M8183	4	Cap Screw	M10 X 90
