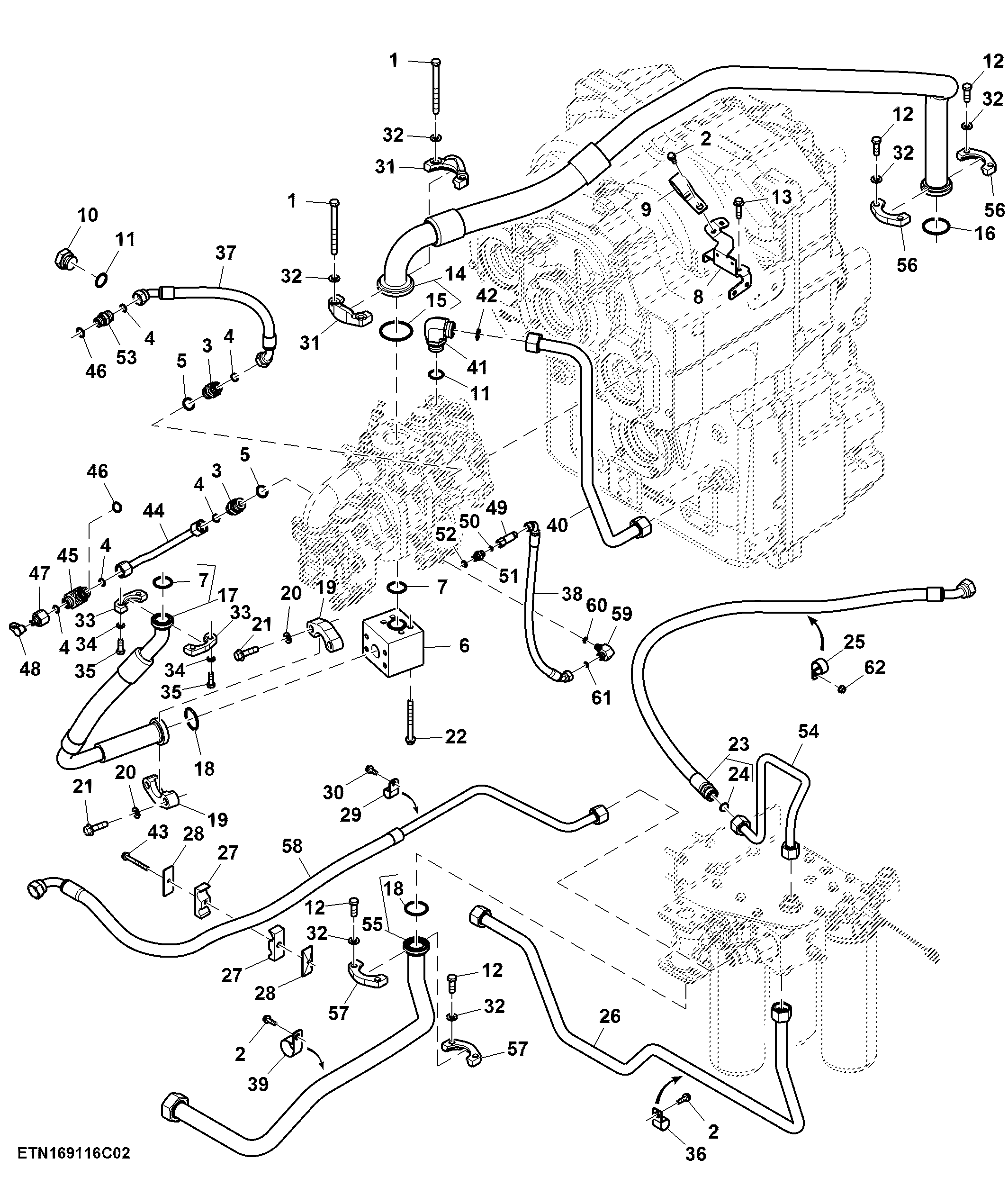

Hydraulic Lines, High Flow, W/ PTO, Double Reduction Axle (2/2) (801465 - 804100)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8061	4	Cap Screw	M12 X 140
2	19M7867	3	Screw	M8 X 25
3	38H5152	2	Adapter Fitting	-
4	T77932	5	O-Ring	-
5	51M7047	2	O-Ring	23.600 X 2.900 mm
6	R556846	1	Manifold	-
7	T78393	2	O-Ring	-
8	RE580724	1	Support	-
9	R530587	1	Hose Clamp	-
10	RE46689	1	Fitting Plug	-
11	51M7048	2	O-Ring	29.600 X 2.900 mm
12	19M7403	8	Cap Screw	M12 X 35
13	19M7804	1	Screw	M10 X 40
14	RE580926	1	Oil Line	Filter Return to Pump INCLUDES U12331 AND U46457
15	U12331	1	O-Ring	-
16	U46457	1	O-Ring	-
17	RE579848	1	Oil Line	Pump Outlet to Priority Valve INCLUDES T34248 AND T78393
18	T34248	2	O-Ring	-
19	T283826	2	Flange Fitting	-
20	24M7240	4	Washer	13 X 25 X 3 mm
21	19M7813	4	Screw	M12 X 45
22	19M7836	4	Screw	M10 X 110
23	RE567487	1	Hydraulic Hose	Rear Axle Lube Supply
24	T77858	1	O-Ring	-
25	R109479	1	Clamp	-
26	RE567155	1	Oil Line	Axle Lube Valve Return
27	R125346	6	Clamp	-
28	R125347	6	Plate	-
29	T24959	1	Clamp	-
30	19M7866	1	Screw	M8 X 20
31	T195864	2	Flange Fitting	-
32	24M7047	12	Washer	13 X 24 X 2.500 mm
33	R29867	2	Flange Fitting	-
34	24M7106	4	Washer	10 X 18 X 2.500 mm
35	19M7662	4	Cap Screw	M10 X 30
36	R72659	1	Clamp	-
37	RE567471	1	Hydraulic Hose	Pump Drain
38	RE567175	1	Hydraulic Hose	Pump Load Sense
39	CB11489177	1	Clamp	-
40	RE576757	1	Oil Line	Transmission Cooler to Cooler Bypass
41	38H5020	1	Elbow Fitting	-
42	T76938	1	O-Ring	-
43	19M7803	3	Screw	M8 X 70
44	RE567607	1	Oil Line	Twin Pump Case Drain
45	38H5030	1	Tee Fitting	-
46	51M7045	2	O-Ring	19.300 X 2.200 mm
47	RE60702	1	Diagnostic Coupling	-
48	R77175	1	Cover	-
49	RE264764	1	Check Valve	INCLUDES T77814
50	T77814	2	O-Ring	-
51	38H5011	1	Adapter Fitting	-
52	51M7041	1	O-Ring	11.300 X 2.200 mm
53	38H5004	1	Adapter Fitting	INCLUDES 51M7045
54	RE567154	1	Line	Rear Axle Lube
55	RE581160	1	Oil Line	Return Manifold to Filter
56	R37023	2	Flange Fitting	-
57	X51H-24	2	Flange Fitting	-
58	RE571685	1	Oil Line	Front Axle Lube Supply
59	38H5022	1	Elbow Fitting	INCLUDES 51M7040
60	51M7040	1	O-Ring	9.300 X 2.200 mm
61	T77613	1	O-Ring	-
62	14M7298	1	Flange Nut	M8

Hydraulic Lines, High Flow, W/ PTO, Double Reduction Axle (2/2) (801465 - 804100)
