Hydraulic Lines, High Flow, Double Reduction Axle (For Scraper) (1/3) (804101 - 805527)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE568218	1	Line	Lube Pump Inlet INCLUDES 51M7065
2	51M7065	4	O-Ring	47.219 X 3.531 mm
3	RE567116	1	Oil Line	Hydraulic Charge Pump Inlet INCLUDES 51M7065
4	X51H-24	8	Flange Fitting	-
5	24M7047	16	Washer	13 X 24 X 2.500 mm
6	19M8011	16	Cap Screw	M12 X 30
7	RE579369	1	Oil Line	-
8	H61354	2	Flange Fitting	-
9	24M7106	8	Washer	10 X 18 X 2.500 mm
10	R29424	2	Flange Fitting	-
11	19M7662	8	Cap Screw	M10 X 30
12	H150222	2	Hose Clamp	-
13	H114901	1	Plate	-
14	19M8039	1	Screw	M8 X 80
15	RE579392	1	Oil Line	Zero Pressure Manifold Return
16	RE579370	1	Oil Line	-
17	RE579384	1	Hydraulic Hose	-
18	RE571593	1	Oil Line	Transmission Scavenge Pump Inlet INCLUDES (2) 51M7065
19	RE582845	1	Oil Line	Front Axle Scavenge Pump Outlet
20	RE579367	1	Oil Line	-
21	RE582844	1	Hydraulic Hose	INCLUDES T59014
22	T59014	1	O-Ring	-
23	R191781	1	Hose Clamp	-
24	RE580135	1	Hydraulic Hose	Transmission Scavenge Pump Return INCLUDES T78313
24	RE572275	1	Hydraulic Hose	USE WITH BRE10270 OR BRE10271 OR BRE10335 OR BRE10336
25	T78313	1	O-Ring	-
26	57M10314	1	Half Clamp	-
27	38H5019	1	Elbow Fitting	-
28	51M7047	1	O-Ring	23.600 X 2.900 mm
29	T77858	1	O-Ring	-
30	19M7868	1	Screw	M8 X 30

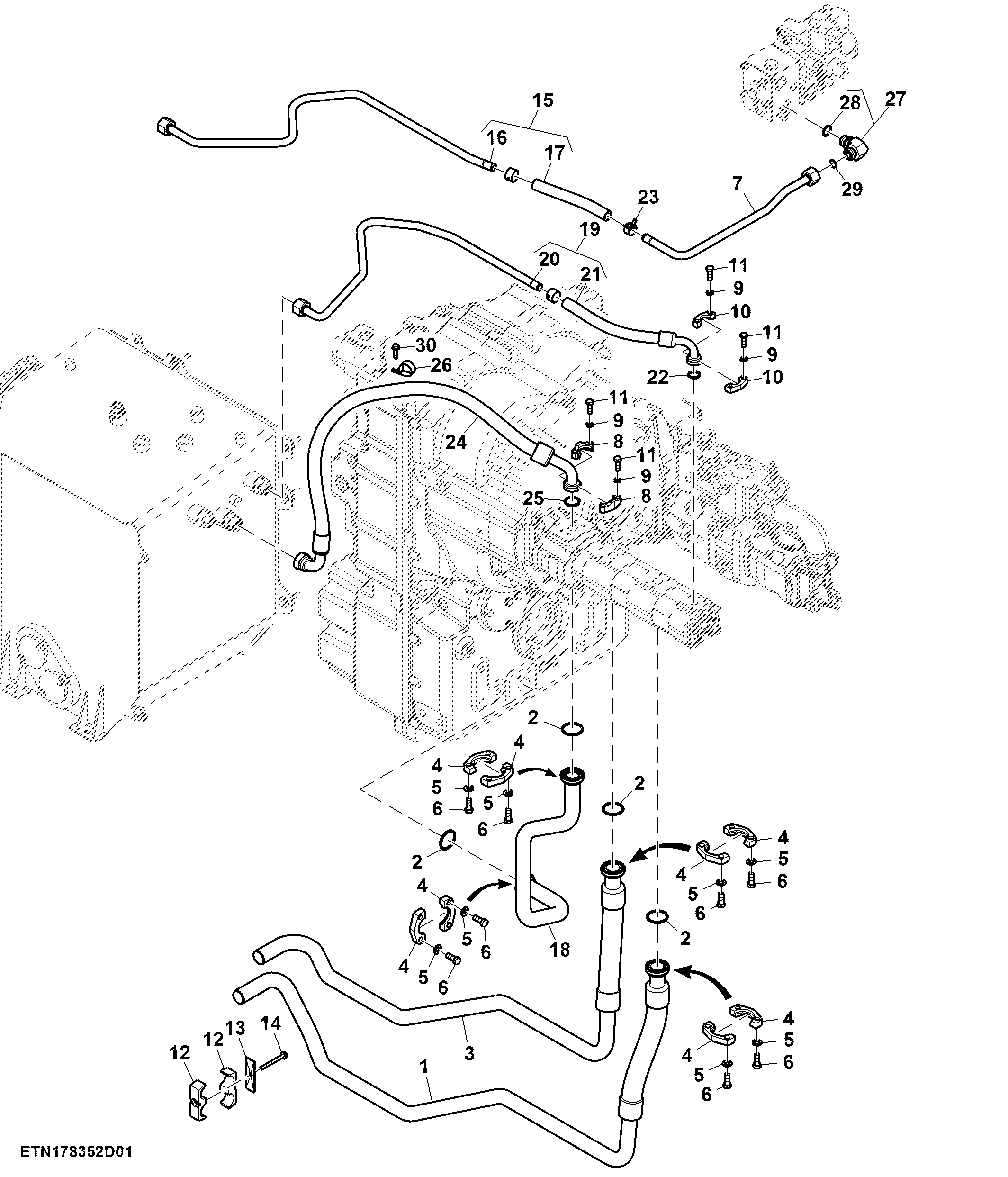

Hydraulic Lines, High Flow, Double Reduction Axle (For Scraper) (1/3) (804101 - 805527)
