Hydraulic Lines, High Flow, 8 SCV, Double Reduction (1/2) (807001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE581155	1	Oil Line	Power Beyond Load Sense
2	38H5002	4	Adapter Fitting	-
3	T77613	8	O-Ring	-
4	51M7041	4	O-Ring	11.300 X 2.200 mm
5	R344704	1	Cover	-
6	R552359	3	Block Clamp	-
7	19M7970	5	Screw	M8 X 100
8	R344628	1	Cover	-
9	19M7866	2	Screw	M8 X 20
10	E53830	2	Clamp	-
11	14M7298	3	Flange Nut	M8
12	M84309	1	Nut	-
13	RE580328	1	Oil Line	SCV Supply
14	RE575195	1	Oil Line	SCV High Flow Pressure
15	38H5419	1	Adapter Fitting	-
16	T76938	4	O-Ring	-
17	28H1497	1	Bushing	0.493" X 0.675" X 1-1/2"
18	19M7801	2	Screw	M8 X 60
19	T77814	2	O-Ring	-
20	T78784	4	O-Ring	-
21	R202160	5	Clamp	-
22	R184956	2	Hose	SCV Drain Hose At Bottom Of SCV Stack
23	RE187161	2	Clamp	-
24	R552580	1	Block Clamp	-
25	RE571819	1	Bracket	-
26	RE264764	1	Check Valve	-
27	19M7803	1	Screw	M8 X 70
28	RE575200	1	Line	SCV Load Sense
29	RE580551	1	Oil Line	SCV Load Sense
30	38H5541	1	Adapter Fitting	-
31	51M7048	4	O-Ring	29.600 X 2.900 mm
32	RE580590	1	Oil Line	SCV Return Line
33	RE586433	1	Hydraulic Hose	SCV Right Hand Stack Return
34	38H5540	1	Adapter Fitting	-
35	38H5203	1	Adapter Fitting	-
36	RE590259	1	Hydraulic Hose	SCV Load Sense To Right Hand Stack
37	RE560509	1	Line	SCV Load Sense To Left Hand Stack
38	38H1378	1	Elbow Fitting	-
39	T77857	2	O-Ring	-
40	38H5172	1	Adapter Fitting	-
41	T78612	1	O-Ring	-
42	RE560507	1	Line	Right Hand Stack SCV Supply
43	38H5006	1	Adapter Fitting	-
44	38H5105	1	Tee Fitting	-
45	RE60701	2	Diagnostic Coupling	-
46	R77175	2	Cover	-
47	R551248	1	Hydraulic Hose	SCV To TEE
48	R551249	1	Hydraulic Hose	-
49	N404296	1	Tee Fitting	-
50	RE559128	1	Hydraulic Hose	SCV Zero Pressure Drain
51	RE587736	1	Bracket	-
52	H150983	2	Clamp	-
53	H112567	1	Plate	-

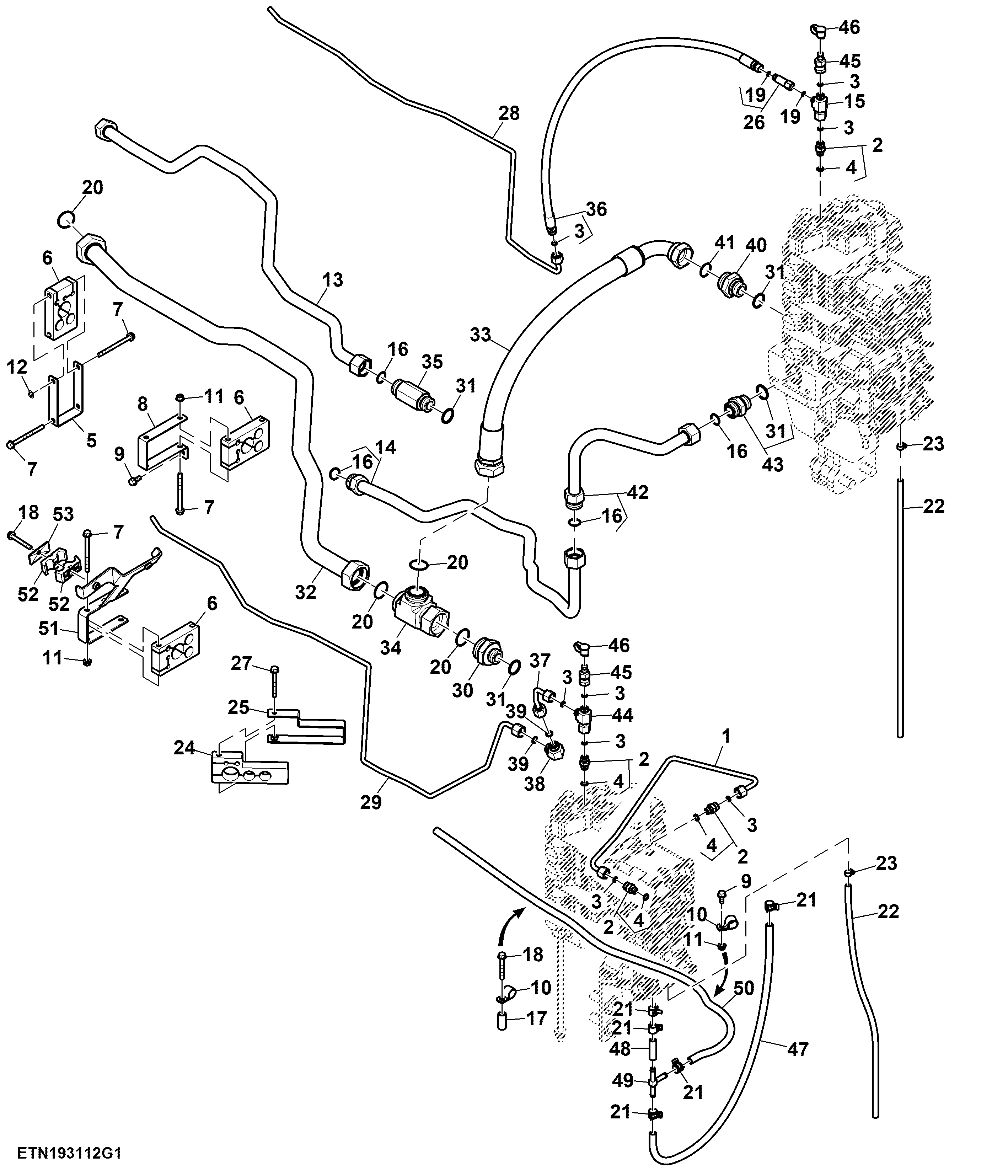

Hydraulic Lines, High Flow, 8 SCV, Double Reduction (1/2) (807001 - )
