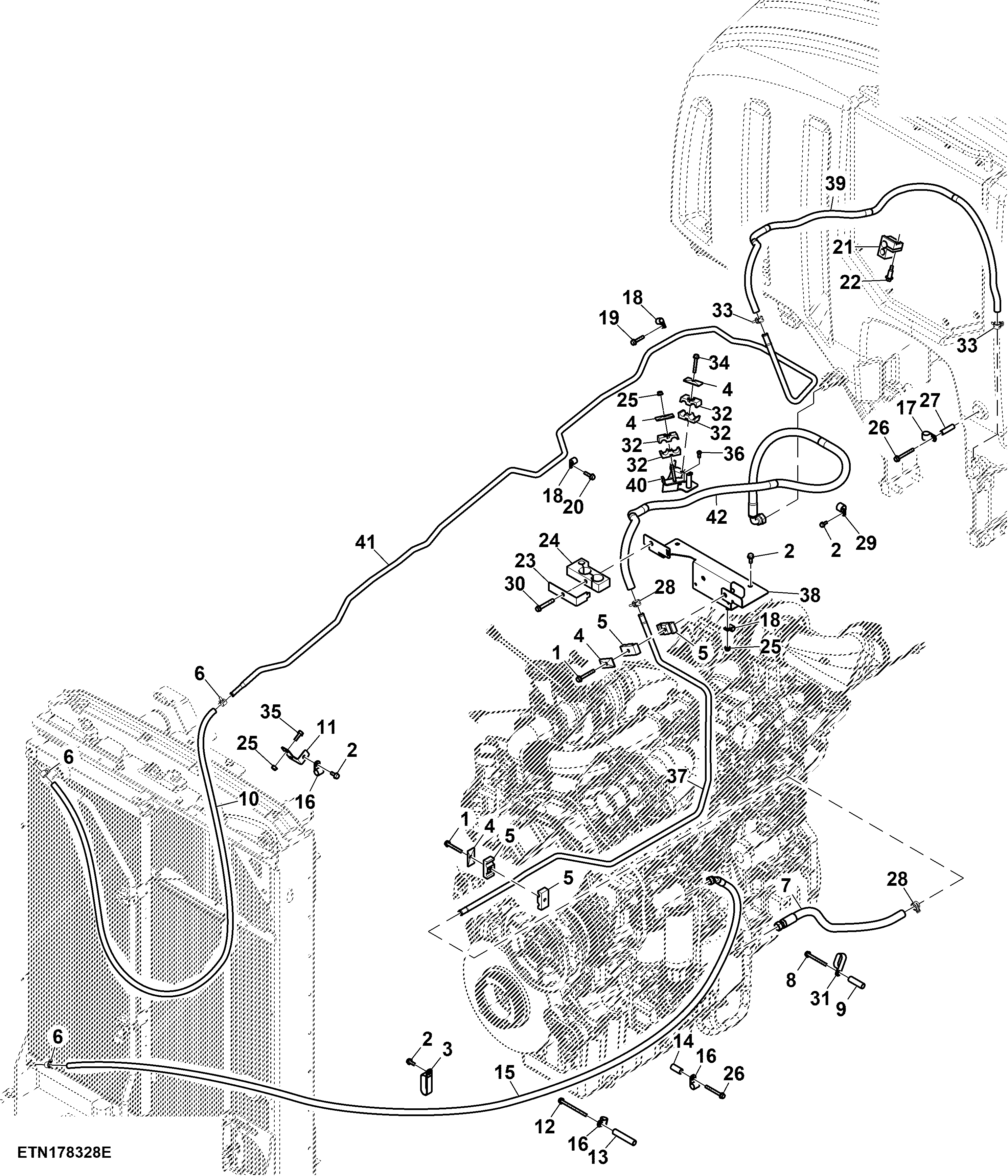

Fuel Lines, W/O Water Separator, Double Reduction Axle, 13.5 L FT4 Engine (804101 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7801	4	Screw	M8 X 60
2	19M7866	7	Screw	M8 X 20
3	AH77884	1	Clip	-
4	H112567	6	Plate	-
5	H141706	8	Clamp	-
6	R202160	3	Clamp	-
7	RE567571	1	Hose	Fuel Supply
8	19M8039	1	Screw	M8 X 80
9	28H3485	1	Bushing	0.493" X 0.675" X 2-1/4"
10	R545763	1	Hose	Return from Cooler
11	RE569545	1	Bracket	-
12	19M7873	1	Screw	M8 X 110
13	28H3464	1	Spacer	0.493" X 0.675" X 3-1/2"
14	28H1497	1	Bushing	0.493" X 0.675" X 1-1/2"
15	RE569882	1	Hose	Return to Cooler
16	T76252	4	Clamp	-
17	E53830	2	Clamp	-
18	H75541	7	Clamp	-
19	19M7798	1	Screw	M8 X 40
20	19M7868	5	Screw	M8 X 30
21	R554586	1	Block Clamp	-
22	M159158	1	Screw	-
23	R554636	1	Bracket	-
24	R554634	1	Block Clamp	-
25	14M7298	4	Flange Nut	M8
26	19M7800	2	Screw	M8 X 50
27	28H3387	1	Bushing	0.493" X 0.675" X 1-1/4"
28	T184924	2	Hose Clamp	-
29	R72659	1	Clamp	SUB FOR APPL T72393
30	19M7803	1	Screw	M8 X 70
31	F122159	1	Clamp	-
32	R550794	4	Clamp	-
33	R184863	2	Hose Clamp	-
34	19M7979	1	Screw	M8 X 55
35	19M7867	2	Screw	M8 X 25
36	R532007	2	Screw	-
37	R556907	1	Fuel Line	Engine Fuel Supply
38	RE582610	1	Bracket	-
39	R563145	1	Fuel Line	Fuel Return Through Gudgeon
40	RE587569	1	Bracket	-
41	R561292	1	Fuel Line	Fuel Return to Tank SUB FOR R558063
42	RE587568	1	Hose	Fuel Supply Through Gudgeon

Fuel Lines, W/O Water Separator, Double Reduction Axle, 13.5 L FT4 Engine (804101 - )
