ECU Shield and Sensor Wiring Harness, 13.5 L, T3 Engine (807001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7784	1	Screw	M10 X 20, USE WITH R334140
2	R334140	1	Shield	-
3	RE524730	4	Cap Screw	-
4	RE577213	1	Engine Sensor WRG Harness	-
5	57M9514	1	Elec. Connector Housing	X5015, Engine Interface
5	RWA11116	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 6, 8, 9, 11, 12, 13, 15, 16, 17, 18, 19, 20, 21, 23, 24, 25, 26, 30, 31
6	57M10939	1	Elec. Connector Housing	X5016, Engine Interface
6	RWA11022	1	Repair Wire Assembly	Cavity 1, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 15, 18, 19, 20, 24, 25, 26, 27, 30, 31
7	57M9227	2	Elec. Connector Accessory	-
8	57M10606	1	Elec. Connector Housing	A5513, ECU J3 Connector
8	RWA11030	1	Repair Wire Assembly	Cavity A2, A3, A4, B1, B2, B4, C1, C2, C3, C4, D1, D2, D3, E2, E4, F1, F2, F3, F4
8	RWA10888	1	Repair Wire Assembly	Cavity G3, G4, H3, H4
9	57M10605	1	Elec. Connector Housing	A5511, ECU J1 Connector
9	RWA11032	1	Repair Wire Assembly	Cavity G1, G2, G3, G4, H3, H4
9	RWA11030	1	Repair Wire Assembly	Cavity A1, B1, B3, B4, C1, C3, C4, D1, D2, D3, D4, E1, E2, E4, F1
10	57M10604	2	Elec. Connector Housing	-
11	57M12137	5	Clamp	-
12	57M12124	1	Clamp	-

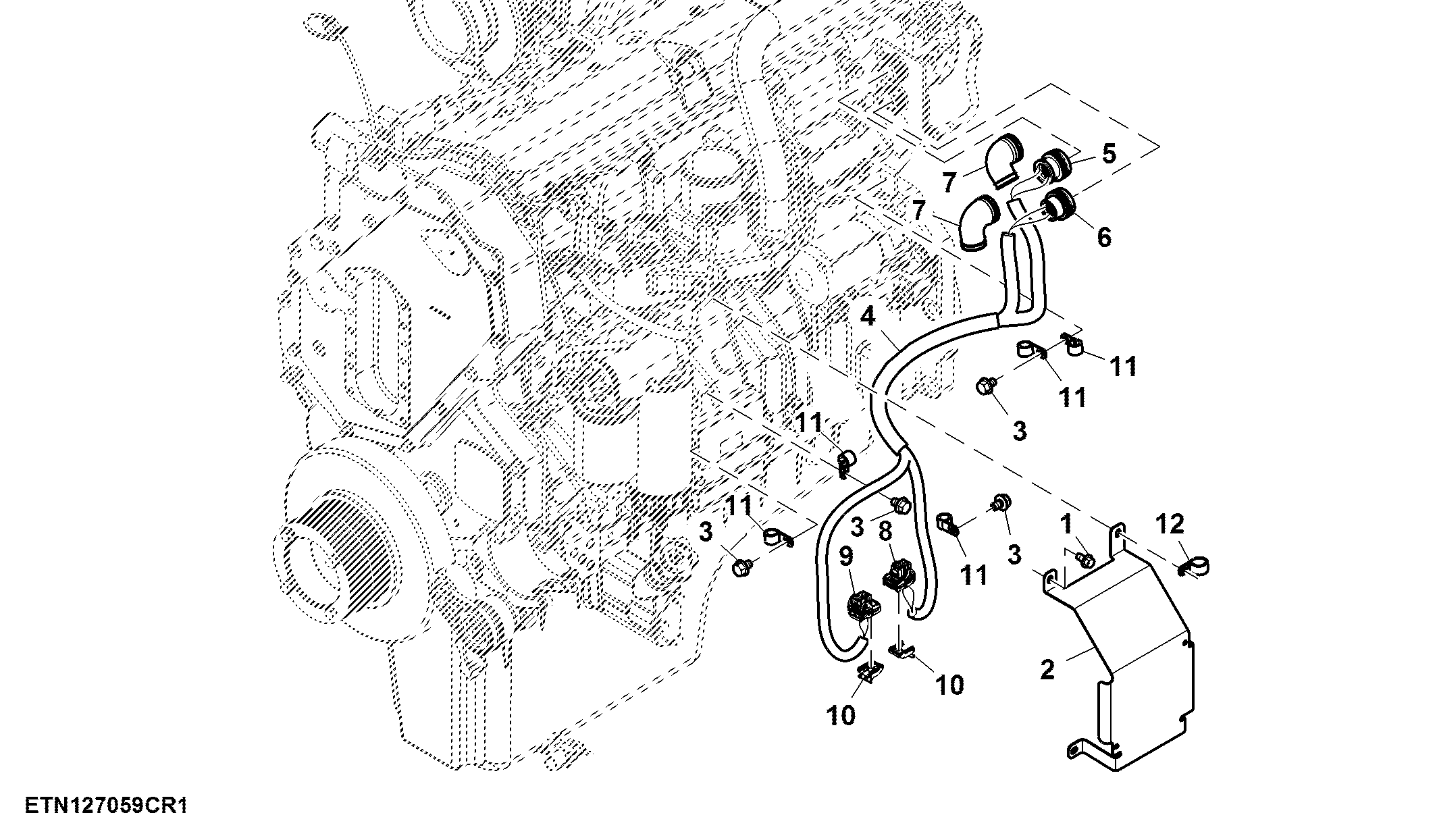

ECU Shield and Sensor Wiring Harness, 13.5 L, T3 Engine (807001 - )

Нет текстового описания
