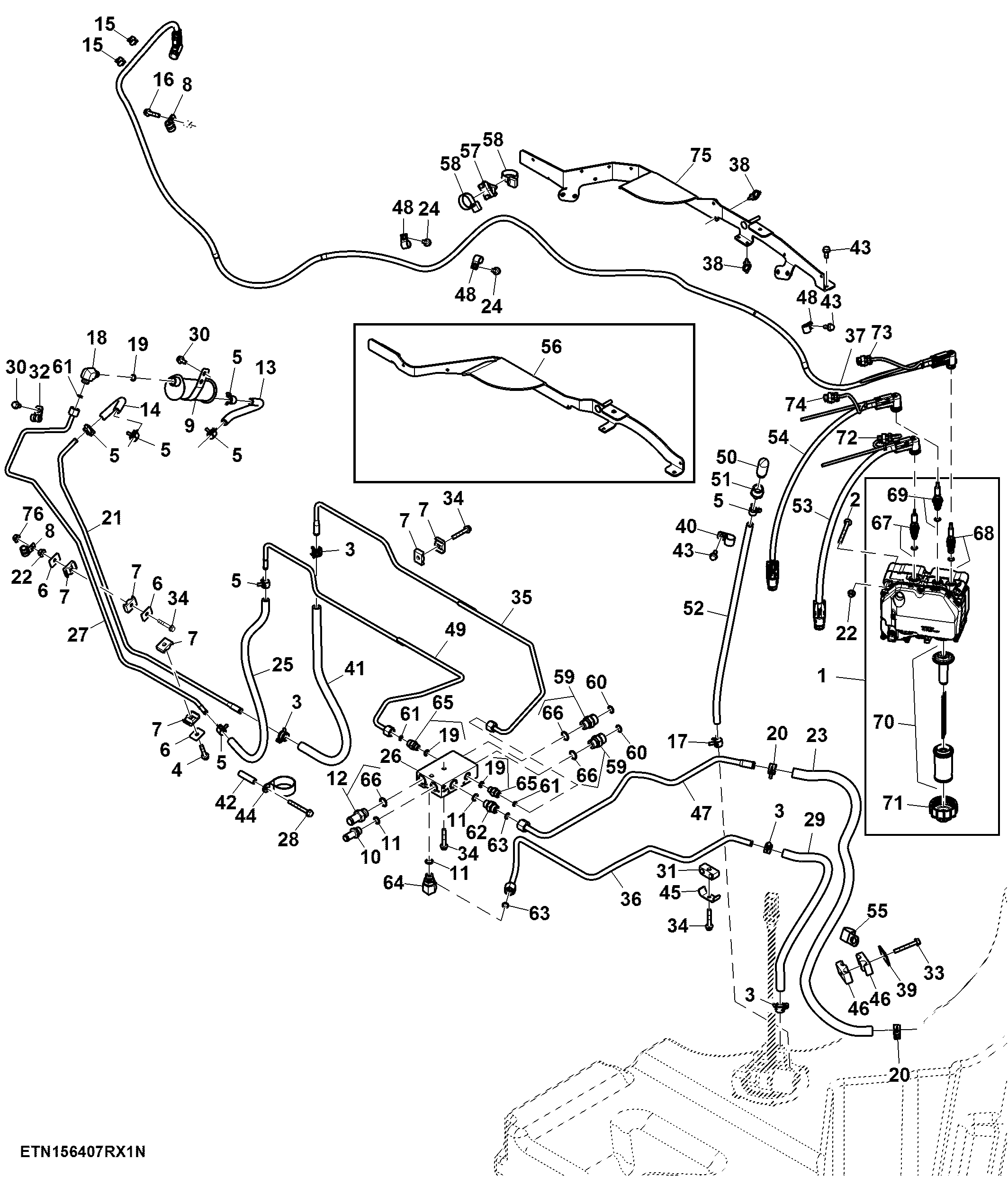

Diesel Exhaust Fluid Lines and Pump, 13.5 L Engine (802000 - 807000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	DZ119474	1	DEF Dosing Unit Pump	ORDER DZ121770; SUB FOR DZ111283
1	RE552175	1	DEF Dosing Unit Pump	ORDER DZ111283
2	03M7295	3	Bolt	M8 X 90
3	R184863	4	Hose Clamp	-
4	19M7798	1	Screw	M8 X 40
5	R202160	7	Clamp	-
6	H121163	3	Strap	-
7	H128515	6	Clamp	-
8	T269640	2	Clamp	-
9	RE572217	1	Reservoir	-
10	R543495	1	Fitting	-
11	51M7043	3	O-Ring	15.300 X 2.200 mm
12	RE223627	1	Hose Fitting	-
13	R551015	1	Hose	DEF Doser Coolant
14	R551016	1	Hose	DEF Doser Coolant Upper
15	L156247	2	Clamp	-
16	19M7897	1	Screw	M8 X 35
17	R251581	1	Clamp	-
18	38H5016	1	Elbow Fitting	-
19	51M7041	3	O-Ring	11.300 X 2.200 mm
20	T184924	2	Hose Clamp	-
21	RE575126	1	DEF Line	Doser Coolant Supply
22	14M7298	4	Flange Nut	M8
23	R562779	1	Hose	Coolant Supply SUB FOR R558227
24	19M7865	2	Screw	M8 X 16
25	R552818	1	Hose	-
26	R556479	1	Manifold	-
27	RE572614	1	Line	-
28	19M7803	1	Screw	M8 X 70
29	R558266	1	Hose	Coolant Return
30	19M10489	3	Screw	M8 X 16
31	R184066	2	Clamp	-
32	T269643	1	Clamp	-
33	19M7801	1	Screw	M8 X 60
34	19M7800	5	Screw	M8 X 50
35	RE579563	1	Line	Coolant Manifold To Doser
36	RE579562	1	Line	DEF Tank to Manifold
37	RE573112	1	DEF Line	-
38	RE258807	10	Tie Band	USE WITH RE587080
38	RE258807	7	Tie Band	USE WITH RE586263
39	H112567	1	Plate	-
40	E53830	1	Clamp	-
41	R552817	1	Hose	Coolant Undercab To Doser
42	28H3470	1	Spacer	0.364" X 0.540" X 2"
43	19M7866	4	Screw	M8 X 20
44	Z75620	1	Clamp	-
45	R184060	1	Cover	-
46	H114897	2	Clamp	-
47	RE579561	1	Line	Coolant Manifold to DEF Tank
48	R34557	3	Clamp	-
49	RE579564	1	Line	Coolant Doser To Manifold
50	H216169	1	Breather	-
51	H216170	1	Fitting	-
52	R551084	1	Hose	DEF Tank Vent
53	RE572158	1	DEF Line	Supply Module Inlet To DEF Pump
54	RE572155	1	DEF Line	Supply Module back flow To DEF Pump
55	R194708	1	Clamp	-
56	RE586263	1	Bracket	-
57	AN209168	1	Swivel	-
58	H224073	2	Tie Band	-
59	38H5004	2	Adapter Fitting	-
60	T77932	2	O-Ring	-
61	T77613	3	O-Ring	-
62	38H5003	1	Adapter Fitting	-
63	T77857	2	O-Ring	-
64	38H5017	1	Elbow Fitting	-
65	38H5002	2	Adapter Fitting	-
66	51M7045	3	O-Ring	19.300 X 2.200 mm
67	RE549603	1	Adapter Fitting	-
68	RE549604	1	Adapter Fitting	-
69	RE549605	1	Adapter Fitting	-
70	DZ114640	1	Filter Kit	DEF Supply Module Filter SUB FOR RE554498
71	RE555351	1	Cap	-
72	57M9772	1	Elec. Connector Housing	-
73	57M9773	1	Elec. Connector Housing	-
74	57M9774	1	Elec. Connector Housing	-
75	RE587080	1	Bracket	ORDER RE590624; USE WITH RE580548
75	RE590624	1	Bracket	USE WITH RE580548 OR RE590436
76	19M7800	1	Screw	M8 X 50

Diesel Exhaust Fluid Lines and Pump, 13.5 L Engine (802000 - 807000)
