Открытый узел

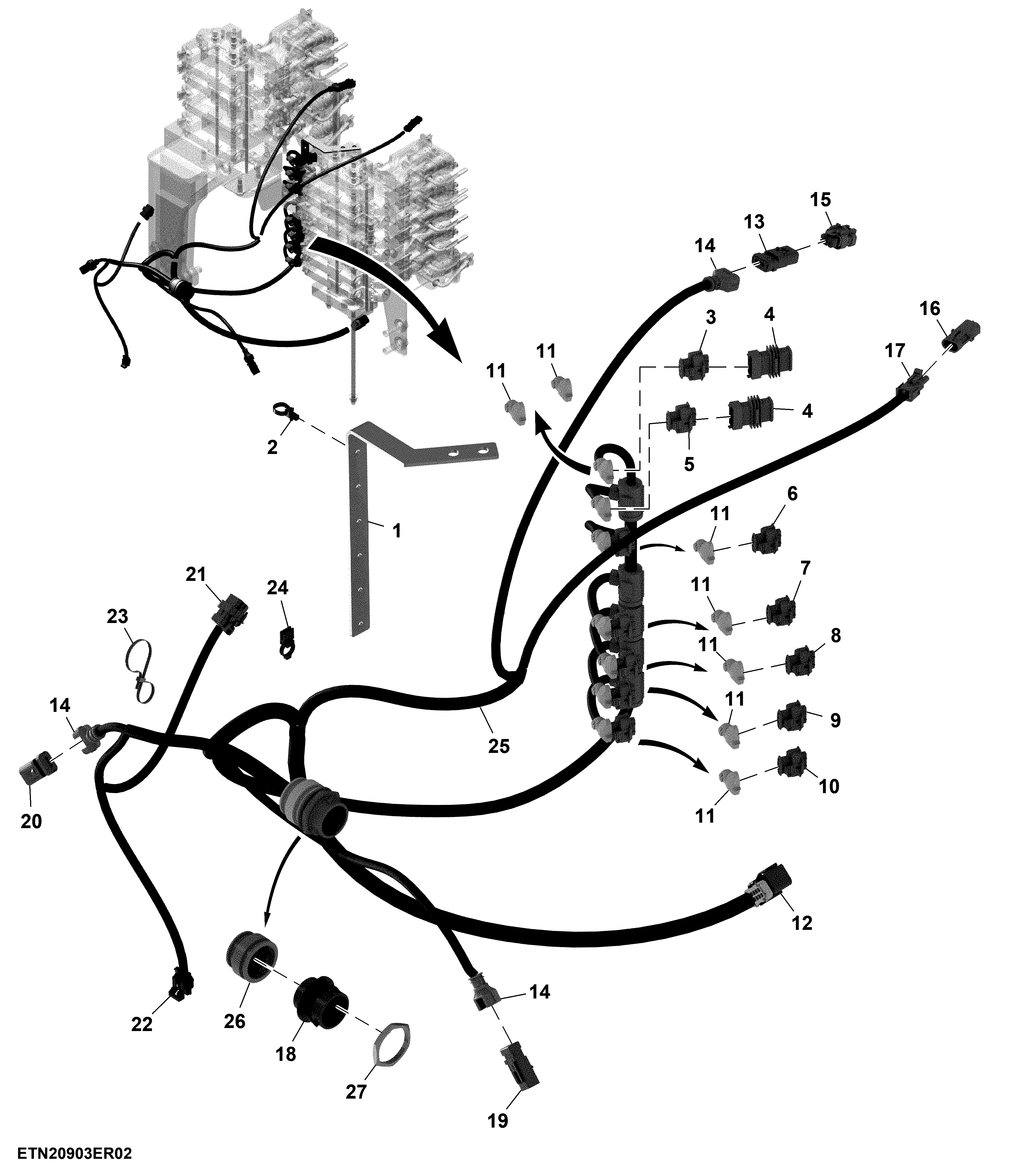

Chassis Wiring Harness, W/ Hitch, Double Reduction Axle

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R552932	1	Bracket	SUB FOR APPL R333767
2	57M10233	3	Tie Band	-
3	57M9500	1	Elec. Connector Accessory	-
3	RWA11112	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
3	57M9498	1	Elec. Connector Housing	SCV 6 A706
4	57M11354	2	Elec. Connector Housing	-
5	57M9498	1	Elec. Connector Housing	SCV 5 A705
5	57M9500	1	Elec. Connector Accessory	-
5	RWA11112	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
6	57M9498	1	Elec. Connector Housing	SCV 4 A704
6	RWA11112	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
7	57M9498	1	Elec. Connector Housing	SCV 3 A703
7	RWA11112	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
8	57M9498	1	Elec. Connector Housing	Hitch SCV A800
8	RWA11112	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
9	57M9498	1	Elec. Connector Housing	SCV 2 A702
9	RWA11112	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
10	57M9498	1	Elec. Connector Housing	SCV 1 A701
10	RWA11112	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
11	57M11897	7	Elec. Connector Accessory	-
12	57M10299	1	Elec. Connector Housing	Trailer Lighting Connector 2 X017A
12	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8
13	57M9784	1	Elec. Connector Housing	Outlet Rear Trailer Lighting and Accessories X192
13	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3
14	57M9838	3	Elec. Connector Accessory	ORDER 57M15917
14	57M15917	3	Elec. Connector Accessory	-
15	57M9780	1	Elec. Connector Housing	-
16	R78053	1	Electrical Connector Assy	-
17	RE12363	1	Electrical Connector Assy	Implement Switch (NC) S549A
17	RWA11147	1	Repair Wire Assembly	Cavity A, B
18	57M11419	1	Elec. Connector Housing	Chassis to Rear Chassis Harness Interconnect 1 X320B
18	57M9383	1	Elec. Connector Accessory	-
18	57M8035	1	Nut	-
18	RWA11119	1	Repair Wire Assembly	Cavity 3, 4
18	RWA11056	1	Repair Wire Assembly	Cavity 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29
19	57M9784	1	Elec. Connector Housing	4 Track Tension Left Rear X124
19	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3
20	57M9784	1	Elec. Connector Housing	4 Track Tension Right Rear X125
20	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3
21	57M9786	1	Elec. Connector Housing	Rear Hitch Position Sensor B698
21	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
22	57M7255	1	Elec. Connector Housing	Draft Sensor B231
22	57M7290	1	Elec. Connector Accessory	-
22	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
23	57M10421	1	Elec. Connector Accessory	-
24	57M10362	1	Clamp	-
25	RE580841	1	Chassis Wiring Harness	-
26	57M9383	1	Elec. Connector Accessory	-
27	57M8035	1	Nut	-

Chassis Wiring Harness, W/ Hitch, Double Reduction Axle

Нет текстового описания
