Chassis Wiring Harness, W/ ACS™ and Back Up Pump, 13.5 L, FT4 Engine (3/4) (802000 - 804100)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE580195	1	Chassis Wiring Harness	-
2	57M11380	2	Elec. Connector Accessory	-
3	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3
3	57M9784	1	Elec. Connector Housing	X123
4	57M9939	1	Elec. Connector Accessory	-
5	57M8924	1	Elec. Connector Housing	Y750
5	RWA11097	1	Repair Wire Assembly	Cavity A, B
5	57M8633	1	Elec. Connector Accessory	-
6	RWA11097	1	Repair Wire Assembly	Cavity A, B
6	57M8633	1	Elec. Connector Accessory	-
6	57M9210	1	Elec. Connector Housing	Y751
7	57M9210	1	Elec. Connector Housing	Y752
7	57M8633	1	Elec. Connector Accessory	-
7	RWA11097	1	Repair Wire Assembly	Cavity A, B
8	57M8924	1	Elec. Connector Housing	Y753
8	57M8633	1	Elec. Connector Accessory	-
8	RWA11097	1	Repair Wire Assembly	Cavity A, B
9	57M9210	1	Elec. Connector Housing	Y754
9	RWA11097	1	Repair Wire Assembly	Cavity A, B
9	57M8633	1	Elec. Connector Accessory	-
10	57M9210	1	Elec. Connector Housing	Y755
10	57M8633	1	Elec. Connector Accessory	-
10	RWA11097	1	Repair Wire Assembly	Cavity A, B
11	57M9780	1	Elec. Connector Housing	B760
11	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
12	57M9780	1	Elec. Connector Housing	B761
12	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
13	57M9780	1	Elec. Connector Housing	B762
13	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
14	57M9780	1	Elec. Connector Housing	B763
14	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
15	57M8924	1	Elec. Connector Housing	B694
15	RWA11097	1	Repair Wire Assembly	Cavity A, B
15	57M8633	1	Elec. Connector Accessory	-
16	57M9804	1	Elec. Connector Housing	X342A
16	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 10, 11, 12
17	57M9940	1	Elec. Connector Accessory	-
18	57M9776	1	Elec. Connector Housing	X133A
18	R78053	1	Electrical Connector Assy	-
18	RWA11025	1	Repair Wire Assembly	Cavity 1, 2
19	57M10614	1	Elec. Connector Housing	A570-J1
19	RWA11030	1	Repair Wire Assembly	Cavity A1, A3, A4, B1, B2, B3, B4, C1, D1, E1, E4, F1, F4, G1, G2, H1, H2, J1, J3, K1, K2
19	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
20	57M10613	3	Elec. Connector Housing	-
21	RWA11032	1	Repair Wire Assembly	Cavity 6, 18, 29, 41, 42, 53
21	RWA11030	1	Repair Wire Assembly	Cavity 7, 9, 11, 12, 13, 14, 20, 21, 22, 23, 24, 25, 26, 34, 35, 37, 38, 39, 40, 45, 51
21	RWA11034	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
21	57M10367	1	Elec. Connector Housing	A570-J2
22	57M10401	1	Elec. Connector Accessory	-
23	57M9789	1	Elec. Connector Housing	X563A
23	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6
24	57M11265	1	Elec. Connector Accessory	-
25	57M9940	1	Elec. Connector Accessory	-
26	57M9786	1	Elec. Connector Housing	-
27	57M7262	1	Elec. Connector Housing	X116A
27	57M7281	1	Elec.Connect Locking Device	-
27	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, E, F, G, H, J, K
28	57M7265	1	Elec. Connector Housing	-
28	57M7281	1	Elec.Connect Locking Device	-
29	57M9555	1	Clip	-
30	RWA11029	1	Repair Wire Assembly	Cavity 1, 3, 4, 6, 7, 8, 9, 10, 12
30	57M9800	1	Elec. Connector Housing	X330A
31	57M12116	2	Elec. Connector Accessory	-
32	57M11524	1	Elec. Connector Housing	X500
32	RWA11029	1	Repair Wire Assembly	Cavity 3, 6, 7, 8, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26
32	RWA11118	1	Repair Wire Assembly	Cavity 1, 2, 27, 28
33	57M11523	1	Elec. Connector Housing	X501
33	RWA10614	1	Repair Wire Assembly	Cavity 3, 4, 5, 6, 7, 8, 9, 10, 11, 13, 15, 16, 19, 20, 23, 24, 25, 26
33	RWA11118	1	Repair Wire Assembly	Cavity 1, 27, 28
34	57M11528	2	Elec. Connector Accessory	-
35	57M10605	1	Elec. Connector Housing	A985-J1
35	RWA11030	1	Repair Wire Assembly	Cavity A2, B2, C2, C4, F3
35	RWA11032	1	Repair Wire Assembly	Cavity G1, G4, H3, H4
36	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
36	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, A4, B1, C2, C3, F1, F4, G1, G3, H1, H3, H4, J1, K1, K2, K4
36	57M10614	1	Elec. Connector Housing	A985-J2
37	57M10611	1	Elec. Connector Housing	A985-J3
37	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B4, C1, C3, C4, D1, D2, D3, E3, F1, F3, F4
37	RWA11032	1	Repair Wire Assembly	Cavity G1, G2, H1, H2
38	57M10604	4	Elec. Connector Housing	-
39	57M8924	1	Elec. Connector Housing	Y683_13-5L
39	RWA11097	1	Repair Wire Assembly	Cavity A, B
40	57M9800	1	Elec. Connector Housing	X506A
40	RWA11029	1	Repair Wire Assembly	Cavity 2, 3
41	57M7261	1	Elec. Connector Housing	X505A
41	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, E
42	57M10605	1	Elec. Connector Housing	A986-J1
42	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, B1, B2, C4, D2, D4, E1, E4, F1, F3, F4
42	RWA11032	1	Repair Wire Assembly	Cavity G1, G4, H3, H4
43	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
43	57M10614	1	Elec. Connector Housing	A986-J2
43	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, A3, A4, B1, B4, C2, C3, D3, D4, E1, E2, F1, F2, F4, G1, G2, G3, G4, H1, H3, J1, J2, K4, J3, J4, K1, K2, K3, K4
44	57M10611	1	Elec. Connector Housing	A986-J3
44	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B4, C1, C3, C4, D2, D3, D4, E2, E3, E4, F1, F3, F4
44	RWA11032	1	Repair Wire Assembly	Cavity G2, G3, H1, H2
45	57M9792	1	Elec. Connector Housing	X780
45	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
46	57M9842	1	Elec. Connector Accessory	-
47	57M9800	1	Elec. Connector Housing	X503A
47	RWA11029	1	Repair Wire Assembly	Cavity 1, 4
48	57M7261	1	Elec. Connector Housing	X504A
48	57M7296	1	Elec. Connector Accessory	-
48	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, E
49	57M9772	1	Elec. Connector Housing	A100-X4
49	RWA11029	1	Repair Wire Assembly	Cavity 1, 2
50	RE336303	1	Relay Module	INCLUDES 57M10797 AND 57M12929
51	RE574020	1	Wiring Harness	-
52	57M8866	1	Elec. Connector Terminal	KX-X1
53	57M8865	1	Elec. Connector Terminal	X008A
54	57M10747	3	Elec. Connector Accessory	-
55	57M10233	10	Tie Band	-
56	57M10316	6	Half Clamp	-
57	57M9855	2	Clamp	-
58	R213663	1	Clamp	-
59	R543182	1	Clamp	-
60	57M8872	1	Elec. Connector Terminal	A100-X3
61	57M11530	1	Elec. Connector Terminal	A100-X2
62	57M10797	1	Fuse	60A
63	57M12929	1	Fuse	30A

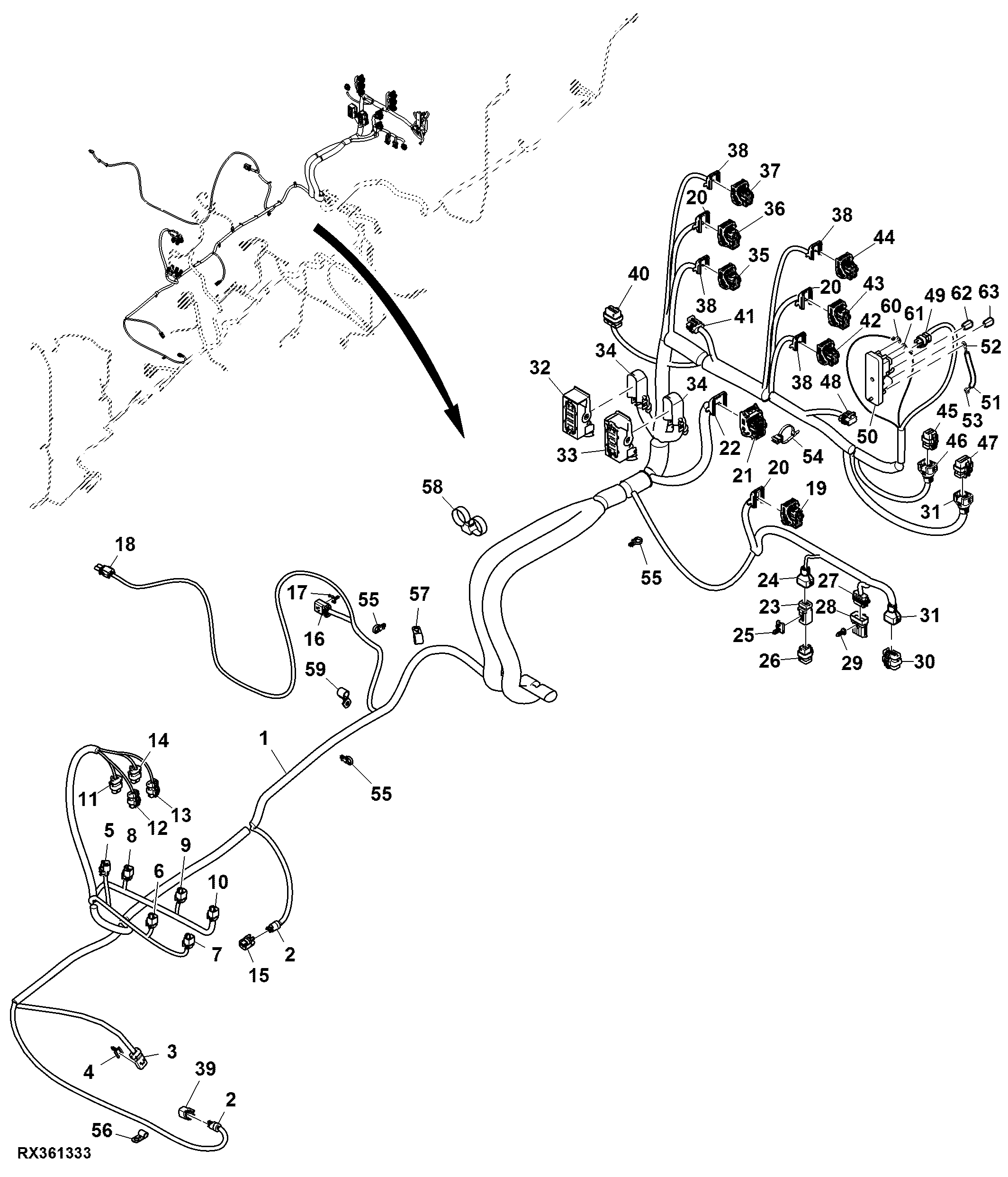

Chassis Wiring Harness, W/ ACS™ and Back Up Pump, 13.5 L, FT4 Engine (3/4) (802000 - 804100)
