Открытый узел

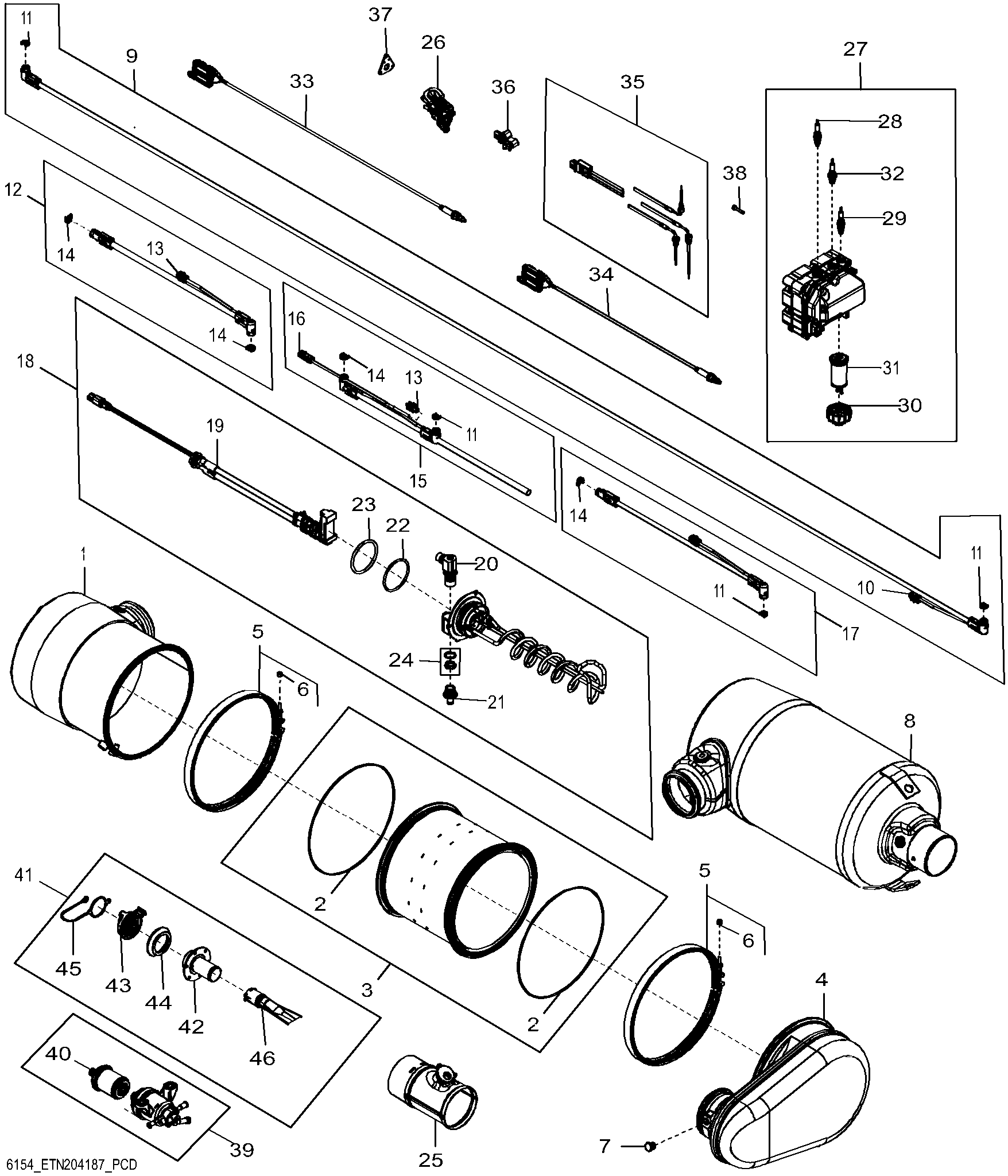

6154 Aftertreatment, Exhaust System (9420/9470/9520R Tractor) (021647 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	DZ101396	1	Diesel Oxidation Catalyst	MARKED DZ101395 ; INCLUDES R537860
2	R537860	2	Gasket	-
3	DZ100175	1	Diesel Particulate Filter	MARKED DZ100147
4	DZ100419	1	Exhaust Pipe	MARKED DZ100416; INCLUDES R537860
5	RE554373	2	Clamp	-
6	R536784	2	Nut	-
7	RE552445	1	Fitting Plug	-
8	DZ100952	1	Converter	Size 7 Selective Catalytic Reduction
9	RE573112	1	DEF Line	12 V,LGTH = 3875 mm, Pressure Line
10	57M9773	1	Elec. Connector Housing	-
11	R536735	4	Clip	-
12	DZ113640	1	DEF Line	12 V, LGTH = 640 mm, Suction Line
13	57M9772	2	Elec. Connector Housing	-
14	R536734	4	Clip	-
15	DZ113641	1	DEF Line	12 V, LGTH = 370 mm, Suction Jumper
16	57M9776	1	Elec. Connector Housing	-
17	RE572094	1	DEF Line	12 V, LGTH = 670 mm, Backflow Line
18	DZ110478	1	DEF Tank Header Assembly	12 V; LGTH = 525 mm, Gen 2 ORDER DZ118681
18	DZ118681	1	DEF Tank Header Assembly	12 V; LGTH = 525 mm, Gen 3
19	DZ104875	1	Sensor Kit	12 V / 24 V; LGTH = 525 mm, Gen 2 ORDER DZ119426
19	DZ119426	1	Sensor Kit	12 V / 24 V; LGTH = 525 mm, Gen 3
20	DZ104871	1	Solenoid Valve	-
21	DZ104993	1	Fitting	Coolant Inlet
22	R539112	1	O-Ring	-
23	R539113	1	O-Ring	-
24	DZ104994	1	O-Ring Kit	Coolant Valve Assembly
25	RE565685	1	Tube	-
26	RE555626	1	DEF Dosing Injector	ALSO ORDER RE572248
27	DZ121770	1	DEF Dosing Unit Pump	12 V, Backflow SUB FOR DZ119474 OR DZ111283 OR RE552175
28	RE549603	1	Adapter Fitting	Supply Module Inlet
29	RE549604	1	Adapter Fitting	Supply Module Outlet
30	RE555351	1	Cap	-
31	DZ114640	1	Filter Kit	-
32	RE549605	1	Adapter Fitting	Supply Module Backflow
33	DZ110621	1	Chemical Sensor	LGTH = 915 mm, NOx Chemical Sensor SUB FOR DZ109689
34	DZ112080	1	Chemical Sensor	LGTH = 615 mm, NOx Chemical Sensor SUB FOR DZ109690
35	RE575421	1	Temperature Sensor	LGTH = 1530 mm, Selective Catalyst Reduction
35	RE575421	1	Temperature Sensor	LGTH = 615 mm, Diesel Particulate Filter
35	RE575421	1	Temperature Sensor	LGTH = 1196 mm, Diesel Oxidation Catalyst
36	RE546719	1	Pressure Sensor	Delta
37	RE572248	1	Gasket	-
38	R537624	3	Bolt	-
39	DZ124402	1	Filter	Diesel Exhaust Fluid Inline Filter Assembly SUB FOR APPL DZ118548
40	DZ124403	1	Filter Kit	Diesel Exhaust Fluid Inline Service Kit SUB FOR APPL DZ110513
41	DZ122992	1	Filler Neck	SUB FOR DZ115040
42	-	1	Part 46	ORDER AT472916
42	AT472916	1	Filler Neck	-
43	DZ114204	1	Filler Cap	-
44	T386561	1	Guard	Wiper
45	T386562	1	Retainer	Lanyard
46	DZ114695	1	Insert	-

6154 Aftertreatment, Exhaust System (9420/9470/9520R Tractor) (021647 - )

Нет текстового описания
