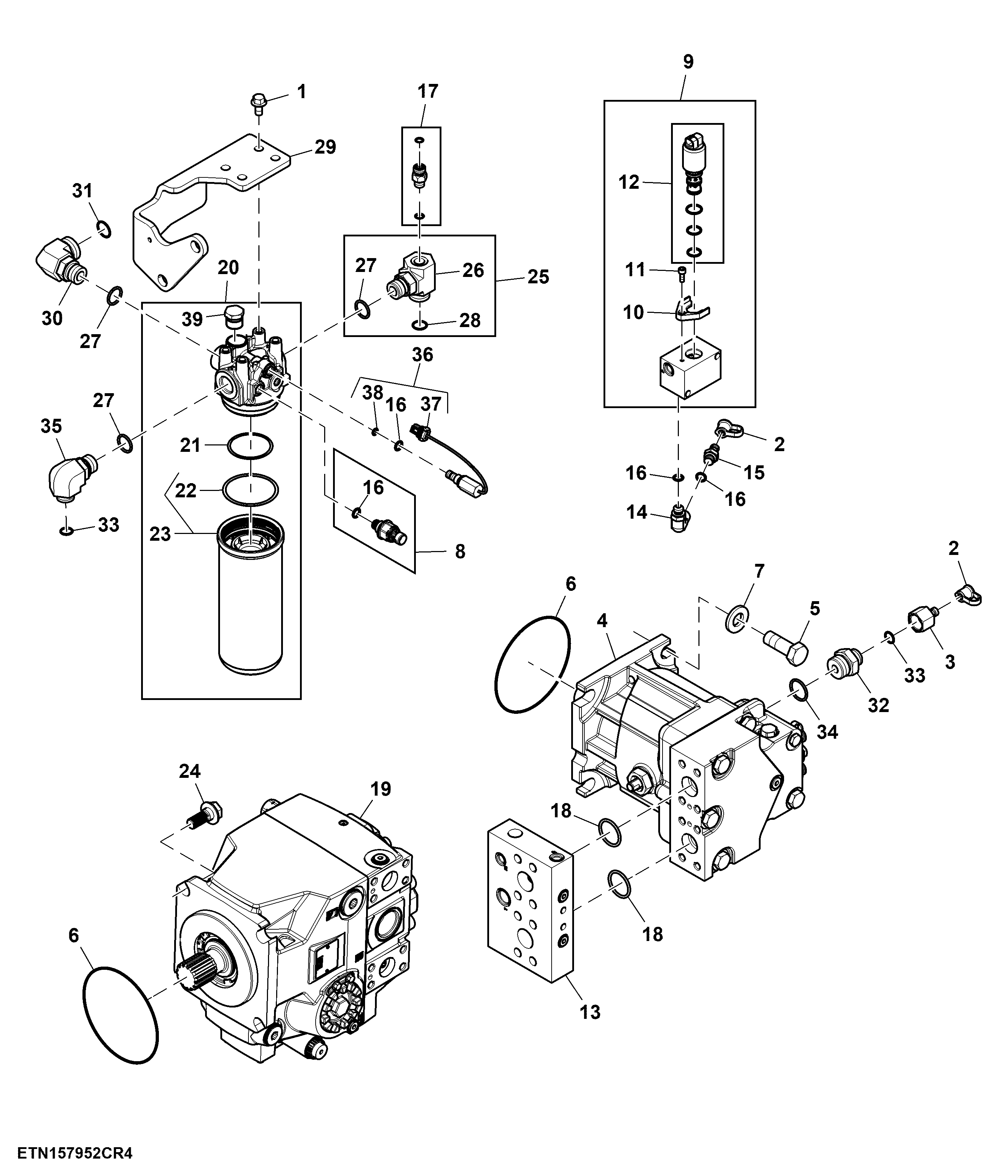

Hydraulic Pump, Steering Components, 130 cc (917101 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7784	4	Screw	M10 X 20
2	R77175	2	Cover	-
3	RE60702	1	Diagnostic Coupling	-
4	RE581525	1	Hydraulic Motor	SUB FOR RE320442
4	RE343426	1	Seal Kit	Not Illustrated
5	19M8002	4	Cap Screw	M20 X 55
6	R136314	2	O-Ring	-
7	24M7242	4	Washer	21.400 X 42 X 5 mm
8	RE581543	1	Pressure Sensor	Hydro Charge Pressure Sensor B206; SUB FOR RE567839
9	RE582117	1	Elec-Hyd Proportional Valve	-
10	R558716	1	Clamp	-
11	19M7768	1	Screw	M6 X 16
12	RE211157	1	Solenoid Valve	-
13	RE578844	1	Hyd Actuated Control Valve	-
14	AL117978	1	Adapter Fitting	-
15	RE190805	1	Diagnostic Coupling	INCLUDES 51M7041
16	51M7041	4	O-Ring	11.300 X 2.200 mm
17	RE195863	1	Check Valve	-
18	T78393	2	O-Ring	-
19	RE586104	1	Hydraulic Pump	-
20	RE585872	1	Filter Head	-
21	R319585	1	Wear Ring	ORDER R567277
21	R567277	1	Ring	-
22	R319582	1	O-Ring	ORDER TR119745
22	TR119745	1	O-Ring	-
23	RE577250	1	Hydraulic Filter	-
24	R560100	4	Cap Screw	-
25	RE586663	1	Tee Fitting	-
26	R562299	1	Tee Fitting	-
27	51M7047	3	O-Ring	23.600 X 2.900 mm
28	T77858	1	O-Ring	-
29	R562892	1	Support	-
30	38H5028	1	Elbow Fitting	INCLUDES 51M7047
31	T76938	1	O-Ring	-
32	38H1447	1	Adapter Fitting	-
33	T77932	2	O-Ring	-
34	R29936	1	O-Ring	-
35	38H5337	1	Elbow Fitting	-
36	RE573828	1	Pressure Switch	Steering Charge Pressure Switch S632
37	57M7254	1	Elec. Connector Housing	-
37	57M7289	1	Elec.Connect Locking Device	-
38	R27976	1	O-Ring	-
39	R27474	1	Drain Plug	-

Hydraulic Pump, Steering Components, 130 cc (917101 - )
