Hydraulic Filter, 90 cc and 85 cc Pump (For Scraper) (916000 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7784	11	Screw	M10 X 20
2	R552073	1	Bracket	-
3	RE590268	1	Hydraulic Filter	SUB FOR RE577056
4	R550880	1	Manifold	-
5	51M7066	2	O-Ring	56.744 X 3.531 mm
6	38H1165	1	Adapter Fitting	-
7	T78612	2	O-Ring	-
8	U13639	1	O-Ring	-
9	RE332185	1	Hydraulic Accumulator	-
10	RE572530	1	Hydraulic Hose	-
11	RE575920	1	Oil Line	Filter Outlet INCLUDES 51M7066
12	19M8061	4	Cap Screw	M12 X 140
13	T195864	2	Flange Fitting	-
14	24M7240	8	Washer	13 X 25 X 3 mm
15	19M7289	4	Cap Screw	M12 X 110
16	R37023	2	Flange Fitting	-
17	H215566	2	Hose Clamp	-
18	19M9789	1	Cap Screw	M8 X 100
19	19M8039	1	Screw	M8 X 80
20	R550882	2	Clamp	ORDER R565691
21	RE572501	1	Support	ORDER RE584372; ALSO ORDER 03M7184 AND 14M7298
22	19M7865	4	Screw	M8 X 16, USE WITH RE572501
23	U12331	1	O-Ring	-
24	38H1053	1	Elbow Fitting	-
25	R29936	1	O-Ring	-
26	24M7298	2	Washer	8.400 X 25 X 2 mm
27	T77857	2	O-Ring	-
28	RE577612	2	Filter Element	SUB FOR RE310653 OR RE577060
29	RE573829	1	Pressure Switch	Filter Restriction
30	51M7041	3	O-Ring	11.300 X 2.200 mm
31	R27976	1	O-Ring	-
32	RE43774	2	Diagnostic Coupling	-
33	R77175	2	Cover	-
34	R319548	2	Ring	ORDER R564922; USE WITH RE577060
34	R564922	2	Ring	USE WITH RE577612
35	38H5023	2	Elbow Fitting	-
36	R319545	2	O-Ring	ORDER R568323
36	R568323	2	O-Ring	-
37	RE584372	1	Support	-
38	03M7184	4	Bolt	M8 X 20, USE WITH RE584372
39	14M7298	4	Flange Nut	M8, USE WITH RE584372

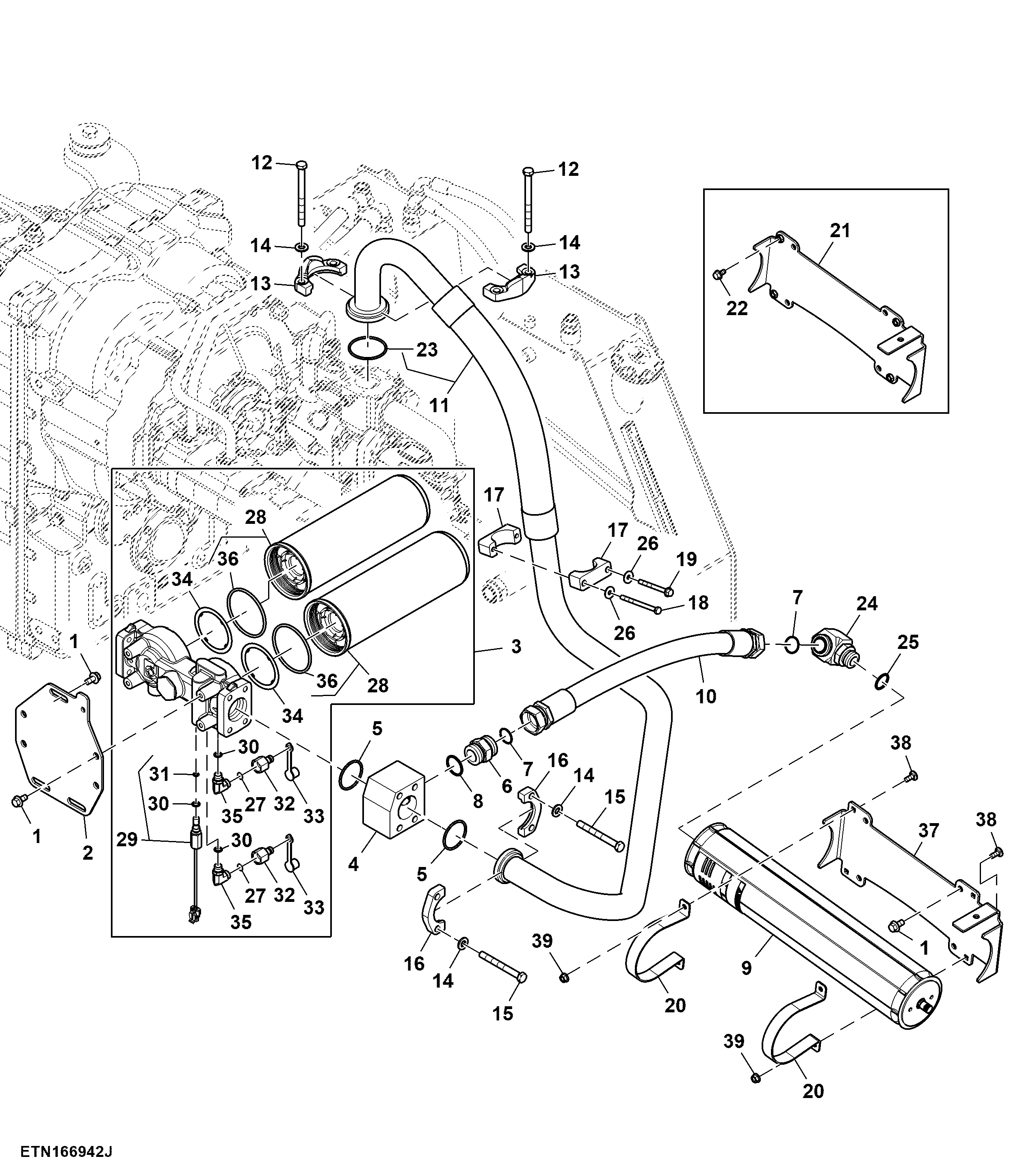

Hydraulic Filter, 90 cc and 85 cc Pump (For Scraper) (916000 - )

Нет текстового описания
