Chassis Wiring Harness, SCV Ext, AG, 2 Tracks, 8 SCV

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RWA11056	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 7, 9, 11, 13, 15
1	57M9511	1	Elec. Connector Housing	SCV Interconnect X321B
1	RWA11056	1	Repair Wire Assembly	Cavity 17
1	RWA11119	1	Repair Wire Assembly	Cavity 8, 10, 12, 14, 16, 18
2	57M10485	2	Elec. Connector Accessory	-
3	57M11837	1	Elec. Connector Housing	SCV Interconnect X320B
3	57M7613	1	Elec. Connector Terminal	Cavity S, U
3	RWA11119	1	Repair Wire Assembly	Cavity T, V, W
3	RWA11119	1	Repair Wire Assembly	Cavity X
4	57M9498	1	Elec. Connector Housing	SCV 5 A705
4	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
5	57M9498	1	Elec. Connector Housing	SCV 6 A706
5	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
6	57M9498	1	Elec. Connector Housing	SCV 7 A707
6	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
7	57M9498	1	Elec. Connector Housing	SCV 8 A708
7	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
8	57M9498	1	Elec. Connector Housing	SCV 1 A701
8	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
9	57M9498	1	Elec. Connector Housing	SCV 2 A702
9	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
10	57M9498	1	Elec. Connector Housing	SCV 3 A703
10	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
11	57M9498	1	Elec. Connector Housing	SCV 4 A704
11	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
12	57M10299	1	Elec. Connector Housing	Trailer Interconnect X016A
12	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 4, 5, 6, 7, 8
12	RWA11137	1	Repair Wire Assembly	Cavity 3
13	R78053	1	Electrical Connector Assy	Implement Switch
14	RE12363	1	Electrical Connector Assy	Implement Switch S549
14	RWA11147	1	Repair Wire Assembly	Cavity A, B
15	RWA10820	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
15	R208787	1	Seal	-
15	57M8884	1	Elec. Connector Accessory	-
15	57M8927	1	Elec.Connect Locking Device	-
15	57M14213	1	Elec. Connector Housing	Implement Connector X224
16	57M8015	1	Electrical Connector Assy	Breakway Greenstar X221
16	57M7618	1	Electrical Connector Assy	-
16	RWA11058	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
17	R333767	1	Bracket	-
18	57M10233	6	Tie Band	-
19	57M9856	1	Clamp	-
20	RE574033	1	Chassis Wiring Harness	-
21	57M11897	8	Elec. Connector Accessory	-
22	57M9061	2	Elec.Connect Locking Device	-
23	57M8035	2	Nut	-

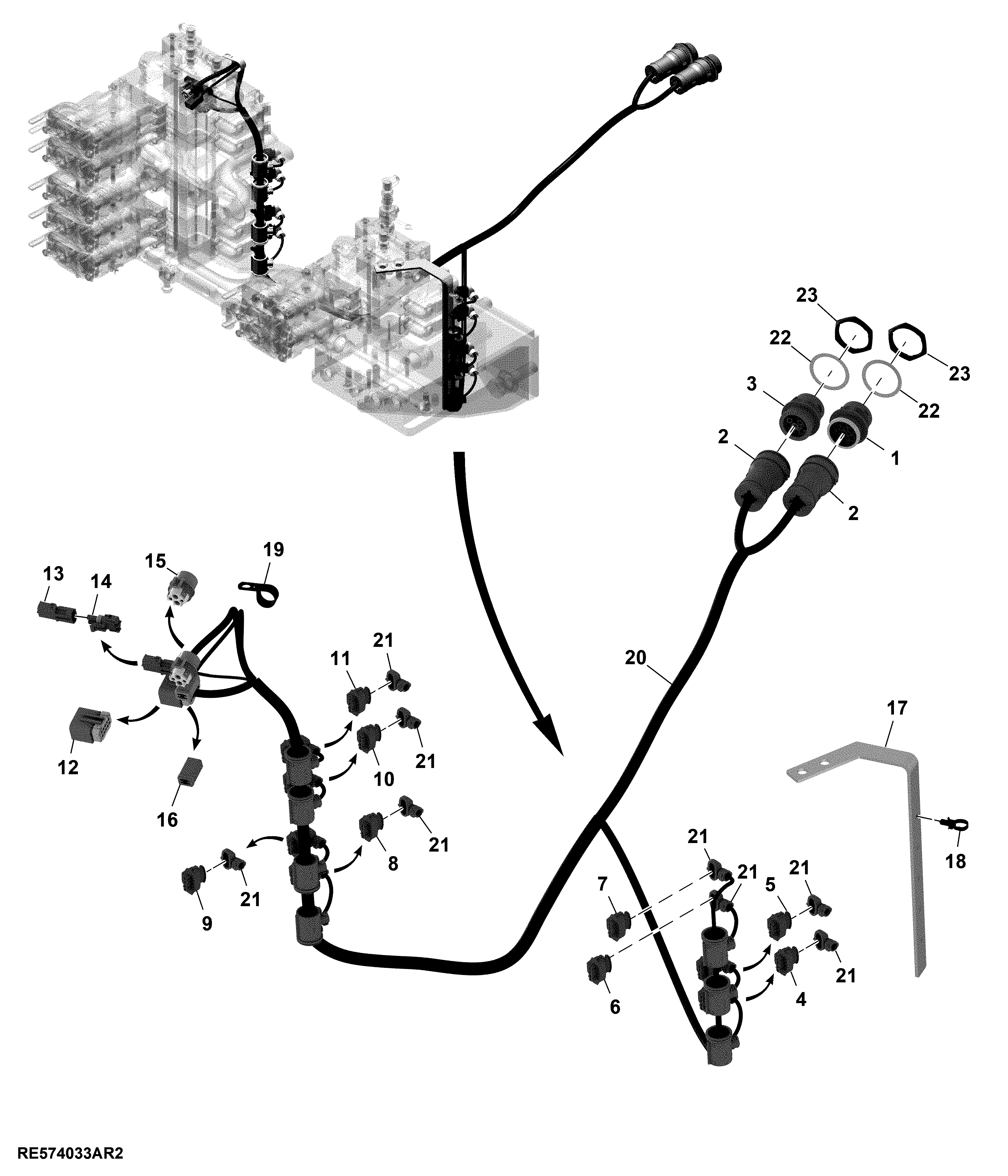

Chassis Wiring Harness, SCV Ext, AG, 2 Tracks, 8 SCV
