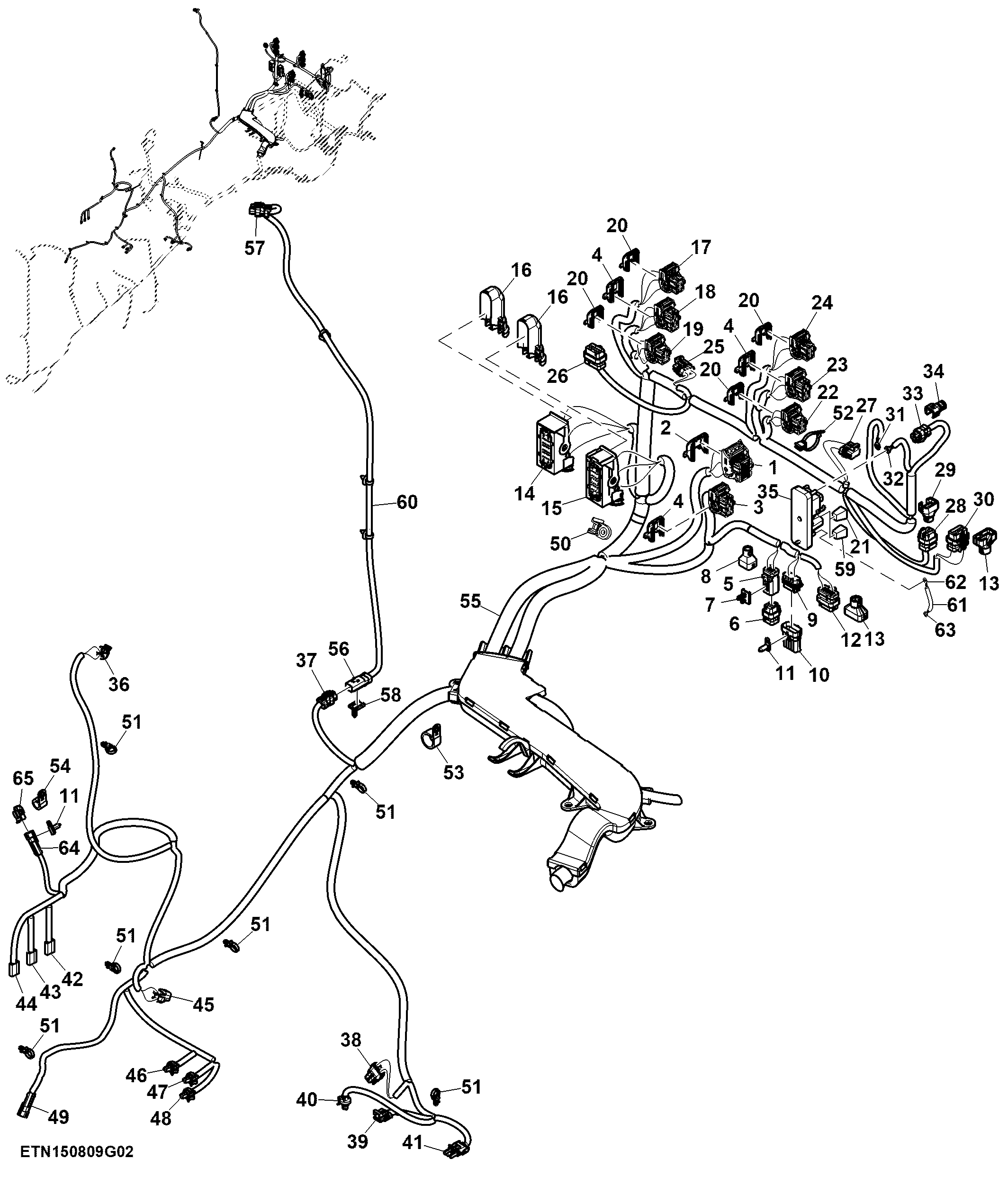

Chassis Wiring Harness, 13.5 L, T2 / T3 Engine (4/4) (917101 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RWA11032	1	Repair Wire Assembly	Cavity 6, 18, 29, 41, 42, 53
1	57M10367	1	Elec. Connector Housing	A570-J2, Vehicle Control Unit 2
1	RWA11030	1	Repair Wire Assembly	Cavity 7, 9, 19, 22, 23, 24, 11, 12, 35, 34, 20, 21, 33, 25, 13, 28, 14, 26, 37, 40, 38, 39
1	RWA11034	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
2	57M10401	1	Elec. Connector Accessory	-
3	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
3	RWA11030	1	Repair Wire Assembly	Cavity A1, F1, A3, J1, D1, B2, B1, G1, G2, J3, F4, C1, H1, K2, E4, H2, B3, E1, K1
3	57M10614	1	Elec. Connector Housing	A570-J1, Vehicle Control Unit J1
4	57M10613	3	Elec. Connector Housing	-
5	57M9789	1	Elec. Connector Housing	X563B, Rear PTO Extension
5	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6
6	57M9786	1	Elec. Connector Housing	-
7	57M9940	1	Elec. Connector Accessory	-
8	57M9841	1	Elec. Connector Accessory	-
9	57M7262	1	Elec. Connector Housing	X116A, Hitch Following
9	CB01489384	1	Elec. Connector Accessory	-
9	RWA11083	1	Repair Wire Assembly	Cavity G, E, D, F, A, B, C, J, K, H
10	57M9213	1	Elec. Connector Housing	-
11	57M8910	2	Clip	-
12	57M9800	1	Elec. Connector Housing	X330A, Transmission Interconnect
12	RWA10998	1	Repair Wire Assembly	Cavity 1
12	RWA11029	1	Repair Wire Assembly	Cavity 3, 6, 4, 11, 12, 7, 10, 9, 8
13	57M9844	2	Elec. Connector Accessory	-
14	57M11524	1	Elec. Connector Housing	X500A, Cab Connection 2
14	RWA11029	1	Repair Wire Assembly	Cavity 26, 3, 6, 7, 8, 10, 12, 13, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 14, 25
14	RWA11118	1	Repair Wire Assembly	Cavity 1, 2, 27, 28
15	57M11523	1	Elec. Connector Housing	X501A, Cab Connection
15	RWA10612	4	Repair Wire Assembly	Cavity 24, 25
15	RWA11118	1	Repair Wire Assembly	Cavity 1, 2, 27, 28
15	RWA11029	1	Repair Wire Assembly	Cavity 26, 3, 4, 5, 6, 7, 8, 9, 10, 11, 13, 15, 16, 19, 20, 23
16	57M11528	2	Elec. Connector Accessory	-
17	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B4, C3, C4, D1, D2, D3, E2, E3, F1, F3, F4
17	57M10611	1	Elec. Connector Housing	A985-J3, ActiveCommand Steering Unit J3
17	RWA11032	1	Repair Wire Assembly	Cavity H1, H2, G4, G2
18	57M10614	1	Elec. Connector Housing	A985-J2, ActiveCommand Steering Unit J2
18	RWA11030	1	Repair Wire Assembly	Cavity A1, H3, C3, A2, F2, H4, C4, B1, G2, J3, J4, D3, A4, F4, J2, B4, K2, K3, E2, C2, H2, K4, E1, G3, K1
18	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
19	57M10605	1	Elec. Connector Housing	A985-J1, ActiveCommand Steering Unit J1
19	RWA11032	1	Repair Wire Assembly	Cavity G1, G4
19	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, A4, B1, B2, B4, C2, C3, D3, E2, F2, F3
20	57M10604	5	Elec. Connector Housing	-
21	57M12929	1	Fuse	30 A
22	57M10605	1	Elec. Connector Housing	A986-J1, ActiveCommand Steering Unit J1
22	RWA11030	1	Repair Wire Assembly	Cavity A2, B1, C3, C4, D2, D3, E4, F3, F4
22	RWA11032	1	Repair Wire Assembly	Cavity G1, G4, G2, H2
23	RWA11032	1	Repair Wire Assembly	Cavity M1, L2, M2, L4, M4, L1
23	57M10614	1	Elec. Connector Housing	A986-J2, ActiveCommand Steering Unit J2
23	RWA11030	1	Repair Wire Assembly	Cavity A1, H3, C3, A3, A2, F2, C4, B1, G2, J3, J4, D4, A4, J2, G4, K2, E2, C2, H2, K4, E1, G3, K1
24	57M10611	1	Elec. Connector Housing	A986-J3, ActiveCommand Steering Unit J3
24	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B4, C3, C4, D1, D2, D3, E3, F1, F3, F4
24	RWA11032	1	Repair Wire Assembly	Cavity G1, H1, G2, H2
25	57M7261	1	Elec. Connector Housing	X505, Cab 6 Interconnect
25	57M7296	1	Elec. Connector Accessory	-
25	RWA11083	1	Repair Wire Assembly	Cavity B, C, D, A
26	57M9800	1	Elec. Connector Housing	X506A, Cab Interconnect
26	RWA11029	1	Repair Wire Assembly	Cavity 2, 3
27	57M7261	1	Elec. Connector Housing	X504, Cab 5 Interconnect
27	57M7296	1	Elec. Connector Accessory	-
27	RWA11083	1	Repair Wire Assembly	Cavity B, C, D, A
28	57M9792	1	Elec. Connector Housing	X502A, GYRO
28	RWA11026	1	Repair Wire Assembly	Cavity 1, 2, 4, 5, 6, 7
29	57M9842	1	Elec. Connector Accessory	-
30	RWA11029	1	Repair Wire Assembly	Cavity 4, 1
30	57M9800	1	Elec. Connector Housing	X503, Cab 7 Interconnect
31	57M8872	1	Elec. Connector Terminal	A100-X3, Power Relay Module Unswitched Power Output
32	57M11530	1	Elec. Connector Terminal	A100-X2, Power Mod Switch Power Output
33	57M9772	1	Elec. Connector Housing	A100-X4, Power Relay Module
33	RWA11029	2	Repair Wire Assembly	Cavity 2, 1
34	57M9837	1	Elec. Connector Accessory	-
35	RE336303	1	Relay Module	Implement Power Relay INCLUDES 57M10797 AND 57M12929
36	57M8625	1	Elec. Connector Housing	B307_13.5L, Air Filter Restriction Sensor
36	57M8624	1	Elec.Connect Locking Device	-
36	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
37	57M9772	1	Elec. Connector Housing	X047A, Fuel Level Interconnect
37	RWA11029	1	Repair Wire Assembly	Cavity 2, 1
38	RE12364	1	Electrical Connector Assy	B709, Track Suspension Position Sensor
38	RWA11092	1	Repair Wire Assembly	Cavity A, C, B
39	57M7255	1	Elec. Connector Housing	Y684, Suspension Bleed Valve
39	57M7290	1	Elec. Connector Accessory	-
39	RWA11083	1	Repair Wire Assembly	Cavity B, A
40	57M13833	1	Elec. Connector Housing	B710, Track Suspension Pressure Sensor
40	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
40	57M8624	1	Elec.Connect Locking Device	-
41	RE12364	1	Electrical Connector Assy	M302, Suspension Pressure Motor
41	RWA11092	1	Repair Wire Assembly	Cavity B, A
42	57M7144	1	Elec. Connector Housing	M01, Front Washer Pump
42	RWA11076	1	Repair Wire Assembly	Cavity B, A
43	57M7144	1	Elec. Connector Housing	M02, Rear Washer Pump
43	RWA11076	1	Repair Wire Assembly	Cavity B, A
44	57M7144	1	Elec. Connector Housing	M03, Right-Washer-Pump
44	RWA11076	1	Repair Wire Assembly	Cavity B, A
45	57M8924	1	Elec. Connector Housing	B694, Hydraulic Oil Temperature Sensor
45	57M8633	1	Elec. Connector Accessory	-
45	RWA11097	1	Repair Wire Assembly	Cavity B, A
46	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
46	57M8624	1	Elec.Connect Locking Device	-
46	57M8625	1	Elec. Connector Housing	B261, Main Hydraulic Pump Pressure Sensor 1
47	57M8625	1	Elec. Connector Housing	B263, Backup Hydraulic Pump Pressure Sensor
47	57M8624	1	Elec.Connect Locking Device	-
47	RWA11097	1	Repair Wire Assembly	Cavity 2, 3, 1
48	57M8625	1	Elec. Connector Housing	B262, Main Hydraulic Pump Pressure Sensor 2
48	57M8624	1	Elec.Connect Locking Device	-
48	RWA11097	1	Repair Wire Assembly	Cavity 2, 1, 3
49	57M9712	1	Elec. Connector Accessory	-
49	RWA11082	1	Repair Wire Assembly	Cavity A, B
49	57M7365	1	Elec. Connector Housing	S551, Hyd Oil Filter Restriction Switch
50	H224072	1	Clamp	-
51	57M10233	10	Tie Band	-
52	57M10747	3	Elec. Connector Accessory	-
53	57M12125	1	Clamp	-
54	57M12129	2	Clamp	-
55	RE584669	1	Chassis Wiring Harness	-
55	RE595030	1	Chassis Wiring Harness	-
55	RE591708	1	Chassis Wiring Harness	-
55	RE587340	1	Chassis Wiring Harness	-
56	57M9776	1	Elec. Connector Housing	X047-B, Chassis Harness
56	RWA11025	1	Repair Wire Assembly	Cavity 1, 2
57	57M9772	1	Elec. Connector Housing	B692, Fuel Level Sensor
57	RWA11029	1	Repair Wire Assembly	Cavity 1, 2
58	57M9939	2	Elec. Connector Accessory	-
59	57M10797	1	Fuse	60 A
60	RE574015	1	Chassis Wiring Harness	-
61	RE574020	1	Wiring Harness	-
62	57M8866	1	Elec. Connector Terminal	KX-X1
63	57M8865	1	Elec. Connector Terminal	X008A, VC Ring M10 Power Stud
64	57M7256	1	Elec. Connector Housing	XX403-RH Side Marker USE WITH RE595030
65	57M7254	1	Elec. Connector Housing	-

Chassis Wiring Harness, 13.5 L, T2 / T3 Engine (4/4) (917101 - )

Нет текстового описания
