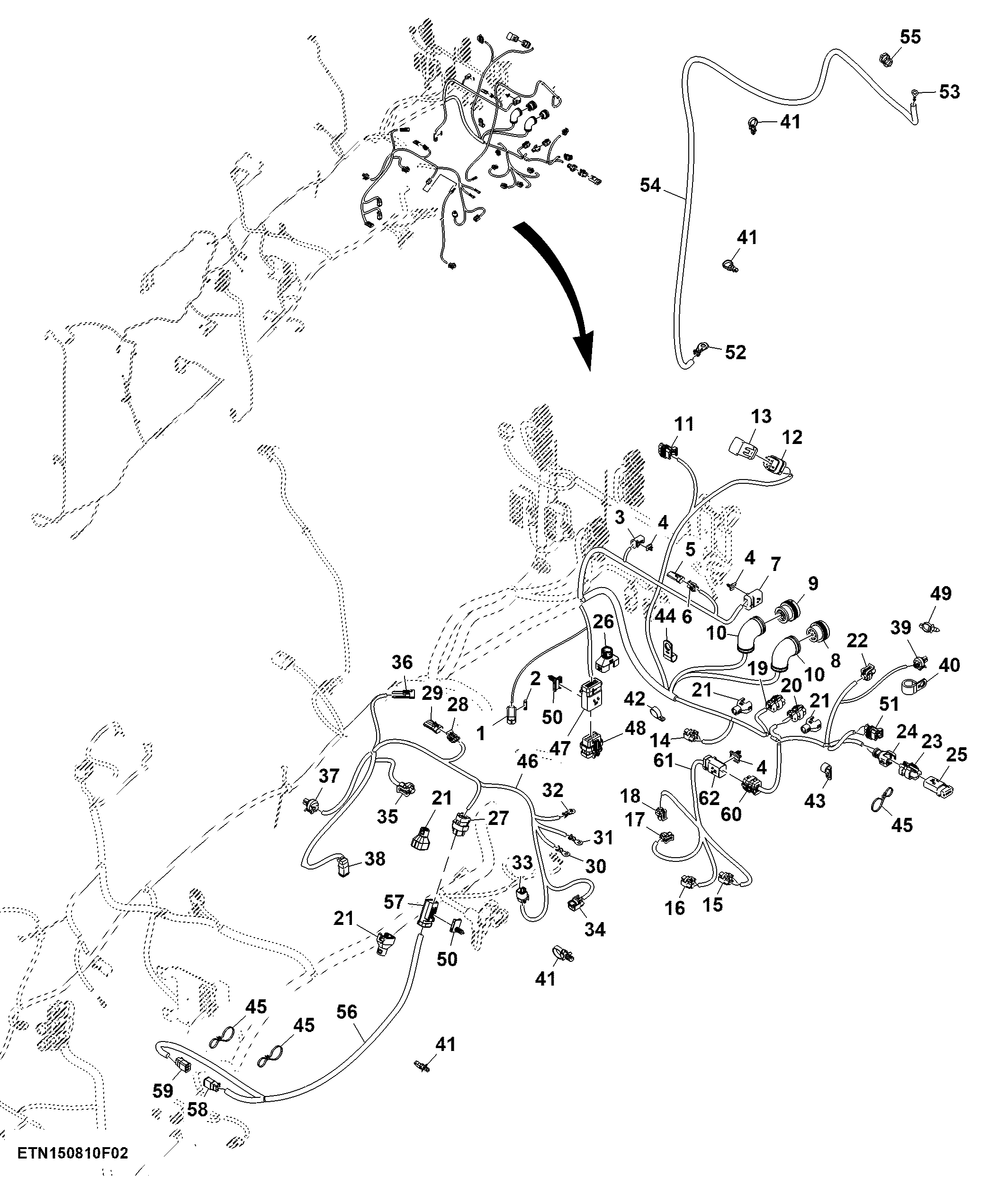

Chassis Wiring Harness, 13.5 L, FT4 Engine (3/4) (917101 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M9712	1	Elec. Connector Accessory	-
1	57M7985	1	Electrical Connector Assy	S555, Axle Filter Restrict Switch
1	RWA11081	1	Repair Wire Assembly	Cavity A, B
2	57M8910	1	Clip	-
3	RWA11025	1	Repair Wire Assembly	-
3	57M9796	1	Elec. Connector Housing	X044A, Right Fender Harness Interconnect
4	57M9940	3	Elec. Connector Accessory	-
5	57M7256	1	Elec. Connector Housing	-
6	57M7254	1	Elec. Connector Housing	X014A, Backup Alarm
6	57M9712	1	Elec. Connector Accessory	-
6	RWA11083	1	Repair Wire Assembly	Cavity B, A
7	57M9804	1	Elec. Connector Housing	X043A, Left Fender Harness Interconnect
7	RWA11025	1	Repair Wire Assembly	-
8	57M10162	1	Elec. Connector Housing	X320A, SCV Trailer Jumper 1
8	RWA10820	1	Repair Wire Assembly	Cavity S, X, U
8	RWA11120	1	Repair Wire Assembly	Cavity W, V, T, Y, Z
9	RWA11058	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 11, 13, 15, 17
9	RWA11120	1	Repair Wire Assembly	Cavity 8, 10, 12, 14, 16, 18
9	57M9513	1	Elec. Connector Housing	X321A, SCV Trailer Jumper 2
10	57M9227	2	Elec. Connector Accessory	-
11	57M7255	1	Elec. Connector Housing	X955A, Right Tracks Tension
11	57M7290	1	Elec. Connector Accessory	-
11	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
12	57M9786	1	Elec. Connector Housing	B698, Rockshaft Position
12	RWA11027	1	Repair Wire Assembly	Cavity 3, 2, 1
13	57M11336	1	Elec. Connector Accessory	-
14	57M8924	1	Elec. Connector Housing	Y716, Brake Pressure
14	57M8633	1	Elec. Connector Accessory	-
14	RWA11097	1	Repair Wire Assembly	Cavity B, A
15	RWA11097	1	Repair Wire Assembly	Cavity B, A
15	57M8924	1	Elec. Connector Housing	Y718, Right Brake ON/OFF
15	57M8633	1	Elec. Connector Accessory	-
16	57M8924	1	Elec. Connector Housing	Y717, Left Brake ON/OFF
16	57M8633	1	Elec. Connector Accessory	-
16	RWA11097	1	Repair Wire Assembly	Cavity B, A
17	57M8625	1	Elec. Connector Housing	B228, Left Brake Pressure
17	57M8624	1	Elec.Connect Locking Device	-
17	RWA11097	1	Repair Wire Assembly	Cavity 3, 1, 2
18	57M8625	1	Elec. Connector Housing	B229, Right Brake Pressure
18	57M8624	1	Elec.Connect Locking Device	-
18	RWA11097	1	Repair Wire Assembly	Cavity 3, 1, 2
19	57M9817	1	Elec. Connector Housing	B208, Right Steering Cross Shaft Speed Sensor
19	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 4
19	RWA11026	1	Repair Wire Assembly	Cavity 3
20	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 4
20	RWA11026	1	Repair Wire Assembly	Cavity 3
20	57M9817	1	Elec. Connector Housing	B201, Left Steering Cross Shaft Speed Sensor
21	57M9840	3	Elec. Connector Accessory	-
22	57M8625	1	Elec. Connector Housing	B711, DR Axle Supply Pressure
22	57M8624	1	Elec.Connect Locking Device	-
22	RWA11097	1	Repair Wire Assembly	Cavity 3, 1, 2
23	57M9780	1	Elec. Connector Housing	X721A, Draft Sensor
23	RWA11029	1	Repair Wire Assembly	Cavity 3, 2, 1
24	57M9838	1	Elec. Connector Accessory	-
25	57M11334	1	Elec. Connector Accessory	-
26	57M9844	1	Elec. Connector Accessory	-
27	57M9817	1	Elec. Connector Housing	X715A, Inter To Steering Pump Jumper
27	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
28	57M7255	1	Elec. Connector Housing	X289, Diagnostic Pressure 1
28	RWA11083	1	Repair Wire Assembly	Cavity C, A, B
29	57M7257	1	Elec. Connector Housing	-
30	57M8897	1	Elec. Connector Terminal	GND14B, Rear Chassis Ground
31	-	1	Part 63	XGND4C, Chassis Ground 3
32	57M8897	1	Elec. Connector Terminal	XGND4A, Chassis Ground 1
33	57M8924	1	Elec. Connector Housing	Y5014, Fan Solenoid - Increase
33	57M8633	1	Elec. Connector Accessory	-
33	RWA11097	1	Repair Wire Assembly	Cavity B, A
34	57M8924	1	Elec. Connector Housing	Y5015, Fan Solenoid - Decrease
34	57M8633	1	Elec. Connector Accessory	-
34	RWA11097	1	Repair Wire Assembly	Cavity B, A
35	57M8625	1	Elec. Connector Housing	B202, B Loop Press
35	57M8624	1	Elec.Connect Locking Device	-
35	RWA11097	1	Repair Wire Assembly	Cavity 2, 1, 3
36	57M7256	1	Elec. Connector Housing	S632, Steering Filter Restrict Switch
36	57M9712	1	Elec. Connector Accessory	-
36	RWA11082	1	Repair Wire Assembly	Cavity B, A
37	57M8624	1	Elec.Connect Locking Device	-
37	RWA11097	1	Repair Wire Assembly	Cavity 2, 3, 1
37	57M8625	1	Elec. Connector Housing	B206, Hydro Charge Pressure
38	57M8924	1	Elec. Connector Housing	Y719, Hydro Loop Override 1
38	57M8633	1	Elec. Connector Accessory	-
38	RWA11097	1	Repair Wire Assembly	Cavity A, B
39	57M8625	1	Elec. Connector Housing	B203, Right Hydro Pressure Sensor
39	57M8624	1	Elec.Connect Locking Device	-
39	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
40	57M12123	2	Clamp	-
41	57M10233	19	Tie Band	-
42	57M9859	1	Clamp	-
43	57M12137	1	Clamp	-
44	57M12128	3	Clamp	-
45	57M10421	3	Elec. Connector Accessory	-
46	RE587341	1	Wiring Harness	-
46	RE591709	1	Wiring Harness	-
46	RE595031	1	Wiring Harness	-
46	RE584670	1	Wiring Harness	-
47	57M9805	1	Elec. Connector Housing	X790-1, Brake Manifold
47	RWA11025	1	Repair Wire Assembly	Cavity 3, 4, 5, 6, 1, 9, 10, 8, 2, 11, 7
48	57M9801	1	Elec. Connector Housing	X790AA, CAP
49	RE258807	1	Tie Band	-
50	57M9939	2	Elec. Connector Accessory	-
51	57M7255	1	Elec. Connector Housing	X954A, Left Tracks Tension
51	57M7290	1	Elec. Connector Accessory	-
51	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
52	57M8901	1	Elec. Connector Terminal	XGND14A, Chassis Ground 2
53	57M8872	1	Elec. Connector Terminal	XGND3, Fuel Tank Static Ground
54	RE576514	1	Chassis Wiring Harness	-
55	57M11231	2	Clip Kit	-
56	RE584668	1	Chassis Wiring Harness	-
57	57M9821	1	Elec. Connector Housing	X715B, Inter To Chassis
57	RWA11025	1	Repair Wire Assembly	Cavity 1
57	RWA11095	1	Repair Wire Assembly	Cavity 2
57	RWA10618	1	Repair Wire Assembly	Cavity 3
57	RWA11100	1	Repair Wire Assembly	Cavity 4
58	57M10523	1	Elec. Connector Housing	XY715-1, C2 Right Steer
58	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
59	57M10523	1	Elec. Connector Housing	XY715-2, C1 Left Steer
59	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
60	57M9792	1	Elec. Connector Housing	-
61	RE588575	1	Wiring Harness	-
62	57M9796	1	Elec. Connector Housing	XX024B, HTB/ Chassis Interconnect

Chassis Wiring Harness, 13.5 L, FT4 Engine (3/4) (917101 - )
