Step, LH Platform, FT4 Engine ( - 052788)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE577524	1	Plate	(For Scraper) SUB FOR RE575184; ALSO ORDER RE576777 AND (2) 19M8327
1	RE577524	1	Plate	SUB FOR RE575184
2	19M7807	4	Screw	M10 X 60
3	RE578315	1	Fender	SUB FOR RE575002; ALSO ORDER R555662 AND (3) 14M7299
4	19M7790	4	Screw	M12 X 35
5	19M8914	55	Screw	M10 X 25
6	RE588422	1	Support	SUB FOR RE571603
7	RE571605	1	Support	-
8	R550499	1	Bracket	-
9	RE572773	1	Support	-
10	19M7804	20	Screw	M10 X 40
11	H173411	7	Nut	-
12	RE588541	1	Battery Box	SUB FOR RE572247
13	03M7191	2	Bolt	M10 X 25
14	14M7296	2	Flange Nut	M10
15	R218343	2	Bracket	-
16	R192571	2	Hook Bolt	-
17	L208466	2	Flange Nut	M8
18	RE574581	1	Support	-
19	RE576887	1	Platform	SUB FOR RE574899; ALSO ORDER R557248
20	R541273	1	Support	-
21	RE570860	1	Fender	-
22	R540855	1	Step	-
23	R552663	1	Plate	-
24	R545718	1	Bracket	-
25	RE572317	1	Bracket	-
26	RE572319	1	Bracket	-
27	R545716	1	Step	-
28	24M7047	3	Washer	13 X 24 X 2.500 mm
29	R208851	1	Bolt	-
30	24M7298	1	Washer	8.400 X 25 X 2 mm
31	14M7327	1	Lock Nut	M8
32	H25220	1	Bushing	-
33	14M7298	7	Flange Nut	M8
34	N275220	2	Catch	-
35	21M7265	6	Screw	M5 X 12
36	AN273411	2	Latch	-
37	RE572318	1	Step	-
38	RE572316	1	Bracket	-
39	RE569676	1	Handrail	-
40	03M7196	4	Bolt	M10 X 50
41	R111382	7	Washer	-
42	12H304	2	Lock Washer	3/8"
43	R552919	1	Panel	-
44	L55969	3	Nut	-
45	RE572016	1	Ramp	-
46	R551159	1	Pad	-
47	R538617	3	Cap Screw	-
48	RE574462	1	Door	-
49	24M7299	3	Washer	10.500 X 30 X 2.500 mm
50	RE569297	1	Support	-
51	R231096	2	Support	-
52	R550736	2	Plate	-
53	R151799	1	Step	-
54	T208074	2	Strap	-
55	R550492	1	Ramp	-
56	RE574438	1	Restrictor	-
57	40M7244	2	Snap Ring	-
58	R544990	1	Bumper	-
59	M82222	9	Nut	-
60	R186344	1	Grommet	-
61	R552664	2	Bracket	-
62	24M7180	7	Washer	13 X 37 X 3 mm
63	19M8327	10	Screw	M8 X 25
64	19M7806	6	Screw	M10 X 50
65	19M9327	9	Screw	M10 X 30
66	19M9357	42	Screw	M8 X 16
67	RE573277	1	Hinge	INCLUDES 40M7244
68	R552679	1	Handrail	-
69	R342239	1	Handrail	-
70	R552130	1	Plate	USE WITH RE574899
70	R557248	1	Plate	USE WITH RE576887
71	19H1936	2	Cap Screw	3/8" X 3/4"
72	RE574995	1	Box	-
73	03M7184	4	Bolt	M8 X 20
74	R552688	1	Cover	-
75	H217200	2	Nut	-
76	19M7513	2	Cap Screw	M8 X 30
77	R555662	1	Bracket	USE WITH RE578315
78	14M7299	3	Flange Nut	M12, USE WITH RE578315 AND R555662
..	RE576777	1	Support	(Not Illustrated)

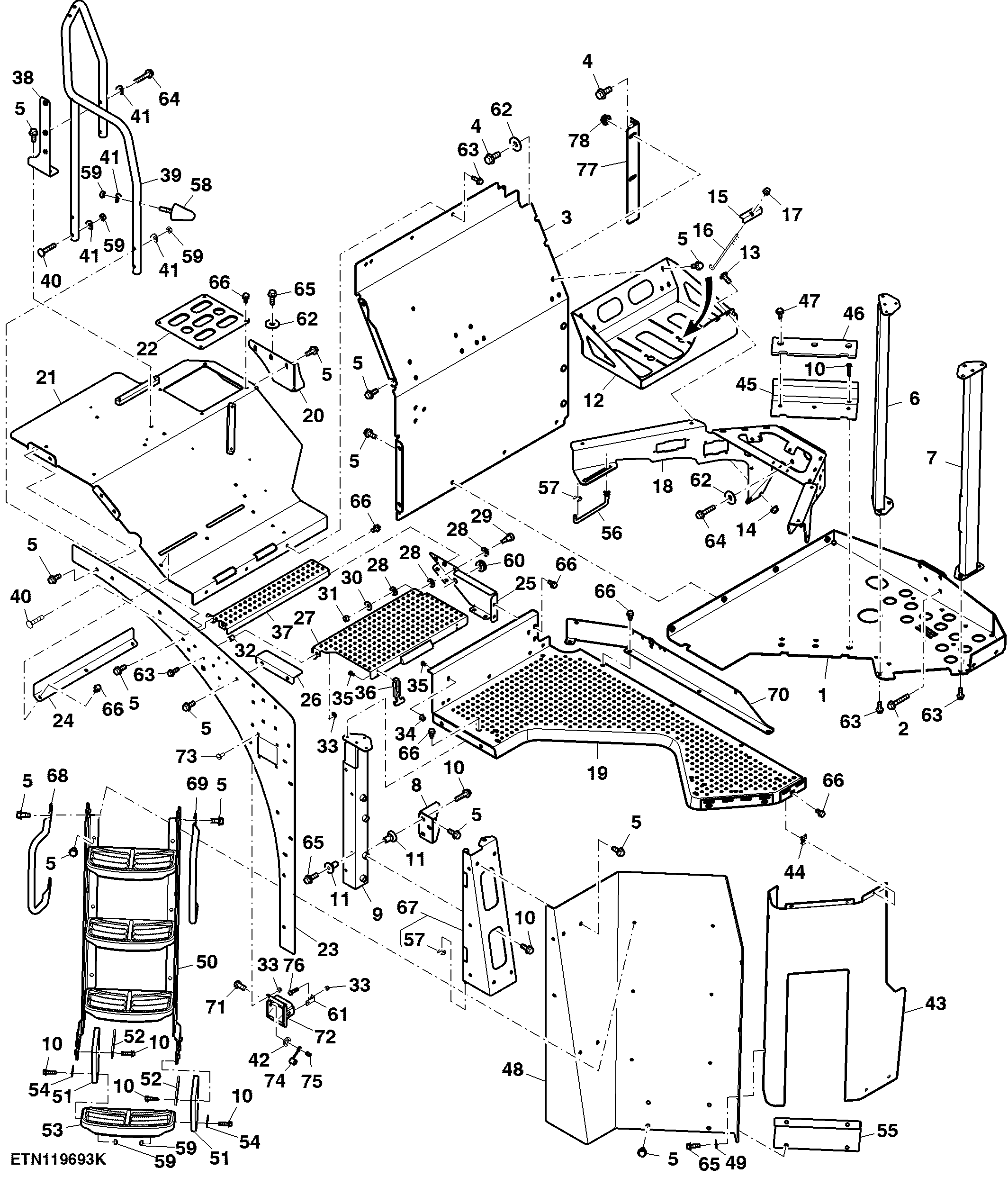

Step, LH Platform, FT4 Engine ( - 052788)
