Selective Control Valve, 4 SCV, Standard Flow, W/O Hitch (For Scraper)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE289055	1	Cover	Number I, Green, SCV Coupler ORDER RE574941
2	RE289056	1	Cover	Number II, Blue, SCV Coupler ORDER RE574660
3	RE289057	1	Cover	Number III, Brown, SCV Coupler ORDER RE574942
4	RE289058	1	Cover	Number IV, Black, SCV Coupler ORDER RE574943
5	14M7327	3	Lock Nut	M8
6	24M7095	19	Washer	8.400 X 15 X 1.600 mm
7	R266977	16	Socket Head Screw	-
8	R267667	2	Cap	-
9	R267668	2	Hose Fitting	-
10	RE272882	6	Tube	-
11	R10093	12	O-Ring	-
12	RE292728	1	Manifold	-
13	RE190805	2	Diagnostic Coupling	-
14	51M7041	3	O-Ring	11.300 X 2.200 mm
15	R77175	2	Cover	-
16	R116115	1	Fitting	ALSO ORDER 51M7045
17	RE588375	4	Selective Control Valve	140 LPM, SUB FOR RE580227
17	RE308284	4	Selective Control Valve	-
18	RE283453	1	Manifold	-
19	RE260570	1	Manifold	-
20	RE46684	1	Fitting Plug	-
21	RE559660	2	Breakaway Coupler	Mid Profile
22	RE559661	2	Breakaway Coupler	High Profile
23	T122075	2	O-Ring	-
24	14M7275	2	Nut	M12
25	R538342	1	Rod	-
26	24M7240	2	Washer	13 X 25 X 3 mm
27	42M7132	1	Stud	-
28	RE283442	1	Stud Kit	-
29	RE574941	1	Cover	Number I, Green, SCV Coupler
30	RE574660	1	Cover	Number II, Blue, SCV Coupler
31	RE574942	1	Cover	Number III, Brown, SCV Coupler
32	RE574943	1	Cover	Number IV, Black, SCV Coupler
33	51M7045	1	O-Ring	19.300 X 2.200 mm

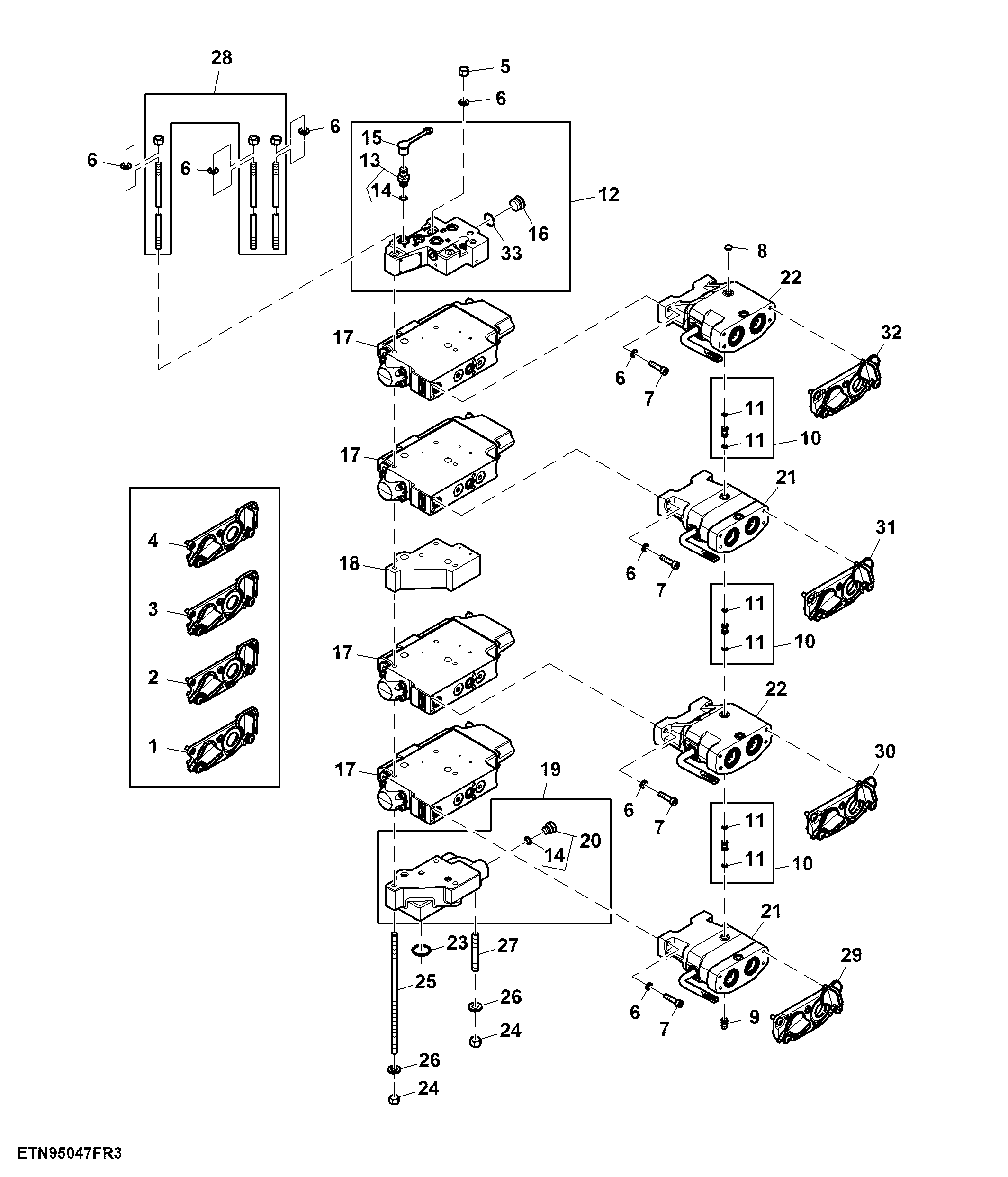

Selective Control Valve, 4 SCV, Standard Flow, W/O Hitch (For Scraper)
