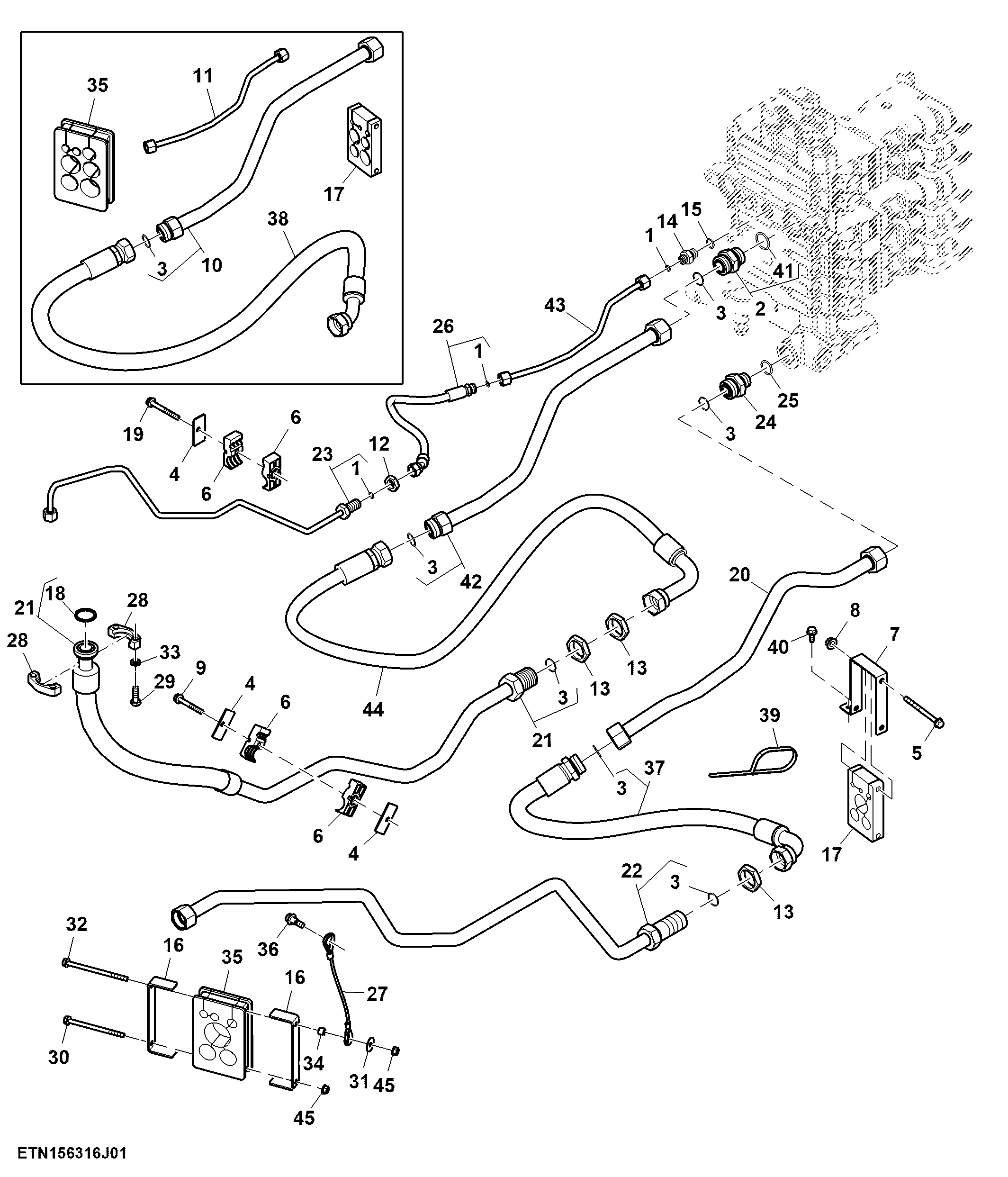

SCV Lines, High Flow, PST, Single Reduction, Hitch W/ Quick Coupler (2/2) ( - 066159)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77613	3	O-Ring	-
2	38H5006	1	Adapter Fitting	-
3	T76938	6	O-Ring	-
4	H112567	3	Plate	-
5	19M7970	1	Screw	M8 X 100
6	R129325	4	Clamp	-
7	R344628	1	Cover	-
8	14M7298	1	Flange Nut	M8
9	19M7801	1	Screw	M8 X 60
10	RE559424	1	Line	ORDER RE574628
11	RE559426	1	Line	ORDER RE574627
12	38H5091	1	Nut	11/16"
13	38H5095	3	Nut	1-7/16"
14	38H5012	1	Adapter Fitting	-
15	51M7043	1	O-Ring	15.300 X 2.200 mm
16	R544978	2	Cover	-
17	R544994	1	Block Clamp	USE WITH RE559424
17	R552359	1	Block Clamp	USE WITH RE574628
18	T78313	1	O-Ring	-
19	19M7803	1	Screw	M8 X 70
20	RE567133	1	Line	-
21	RE576775	1	Hydraulic Hose	SUB FOR RE567138
22	RE577785	1	Oil Line	SUB FOR RE567480
23	RE580039	1	Oil Line	SUB FOR RE567483
24	38H5014	1	Adapter Fitting	-
25	51M7047	1	O-Ring	23.600 X 2.900 mm
26	RE568222	1	Hydraulic Hose	-
27	RE570861	1	Cable	-
28	H61354	2	Flange Fitting	-
29	19M7662	4	Cap Screw	M10 X 30
30	19M8006	1	Screw	M8 X 120
31	24H1294	1	Washer	11/32" X 1-1/8" X 1/16"
32	19M9915	1	Screw	M8 X 130
33	24M7106	4	Washer	10 X 18 X 2.500 mm
34	28H1513	1	Washer	0.364" X 0.540" X 3/8"
35	R548828	1	Clamp	USE WITH RE566030
35	R552361	1	Clamp	USE WITH RE574610
36	R519426	1	Screw	-
37	RE587405	1	Hydraulic Hose	SUB FOR RE566028
38	RE566030	1	Hydraulic Hose	ORDER RE574610
39	R76477	2	Tie Band	-
40	19M7866	1	Screw	M8 X 20
41	51M7048	1	O-Ring	29.600 X 2.900 mm
42	RE574628	1	Line	-
43	RE574627	1	Line	-
44	RE587428	1	Hydraulic Hose	SUB FOR RE574610
45	14M7573	2	Flange Nut	M8

SCV Lines, High Flow, PST, Single Reduction, Hitch W/ Quick Coupler (2/2) ( - 066159)
