Oil Lines, PST, Standard (For Scraper) (2/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7662	12	Cap Screw	M10 X 30
2	19M8011	16	Cap Screw	M12 X 30
3	24M7047	16	Washer	13 X 24 X 2.500 mm
4	24M7106	12	Washer	10 X 18 X 2.500 mm
5	RE342016	1	Line	INCLUDES T78313
6	R342142	4	Block Clamp	-
7	RE567172	1	Hydraulic Hose	-
8	51M7048	1	O-Ring	29.600 X 2.900 mm
9	38H5013	1	Adapter Fitting	INCLUDES 51M7048
10	T77858	5	O-Ring	-
11	H114901	3	Plate	-
12	38H5226	1	Tee Fitting	-
13	X51H-24	8	Flange Fitting	SUB FOR T47649
14	H61354	4	Flange Fitting	-
15	38H5005	1	Adapter Fitting	INCLUDES 51M7047
16	51M7047	1	O-Ring	23.600 X 2.900 mm
17	R29424	2	Flange Fitting	-
18	19M7897	2	Screw	M8 X 35
19	RE571593	1	Oil Line	INCLUDES (2) 51M7065
20	RE567116	1	Oil Line	INCLUDES 51M7065
21	RE567264	1	Hydraulic Hose	-
22	19M7913	2	Screw	M8 X 90
23	RE565489	1	Hydraulic Hose	INCLUDES T59014
24	T59014	1	O-Ring	-
25	R544991	1	Block Clamp	-
26	19M9915	1	Screw	M8 X 130
27	19M7970	1	Screw	M8 X 100
28	R552592	1	Bracket	-
29	RE572100	1	Bracket	-
30	19M8039	1	Screw	M8 X 80
31	H150222	2	Hose Clamp	-
32	RE567265	1	Hydraulic Hose	INCLUDES T78313
33	T78313	2	O-Ring	-
34	RE574999	1	Oil Line	-
35	RE568218	1	Line	INCLUDES 51M7065
36	51M7065	4	O-Ring	47.219 X 3.531 mm

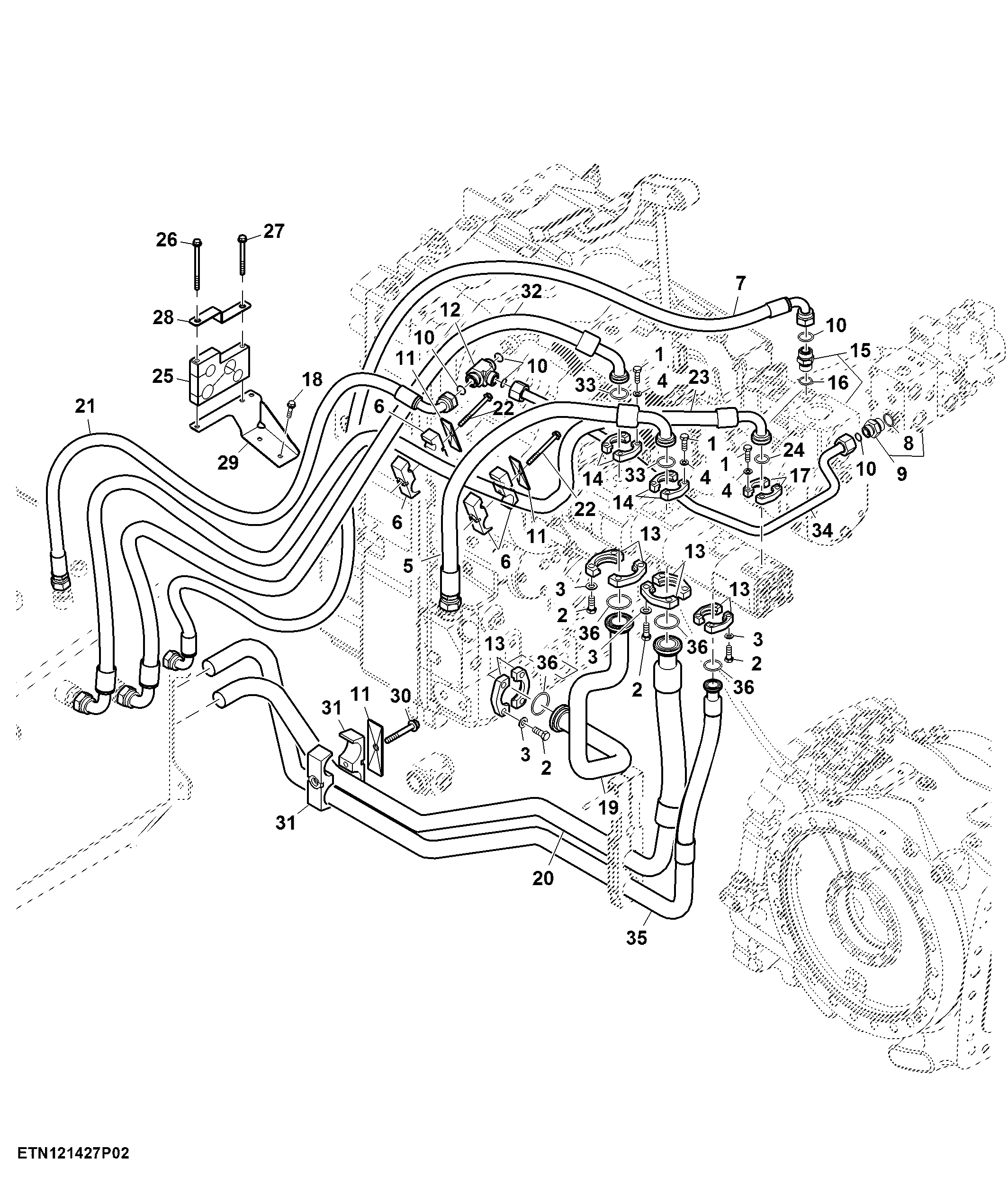

Oil Lines, PST, Standard (For Scraper) (2/2)
