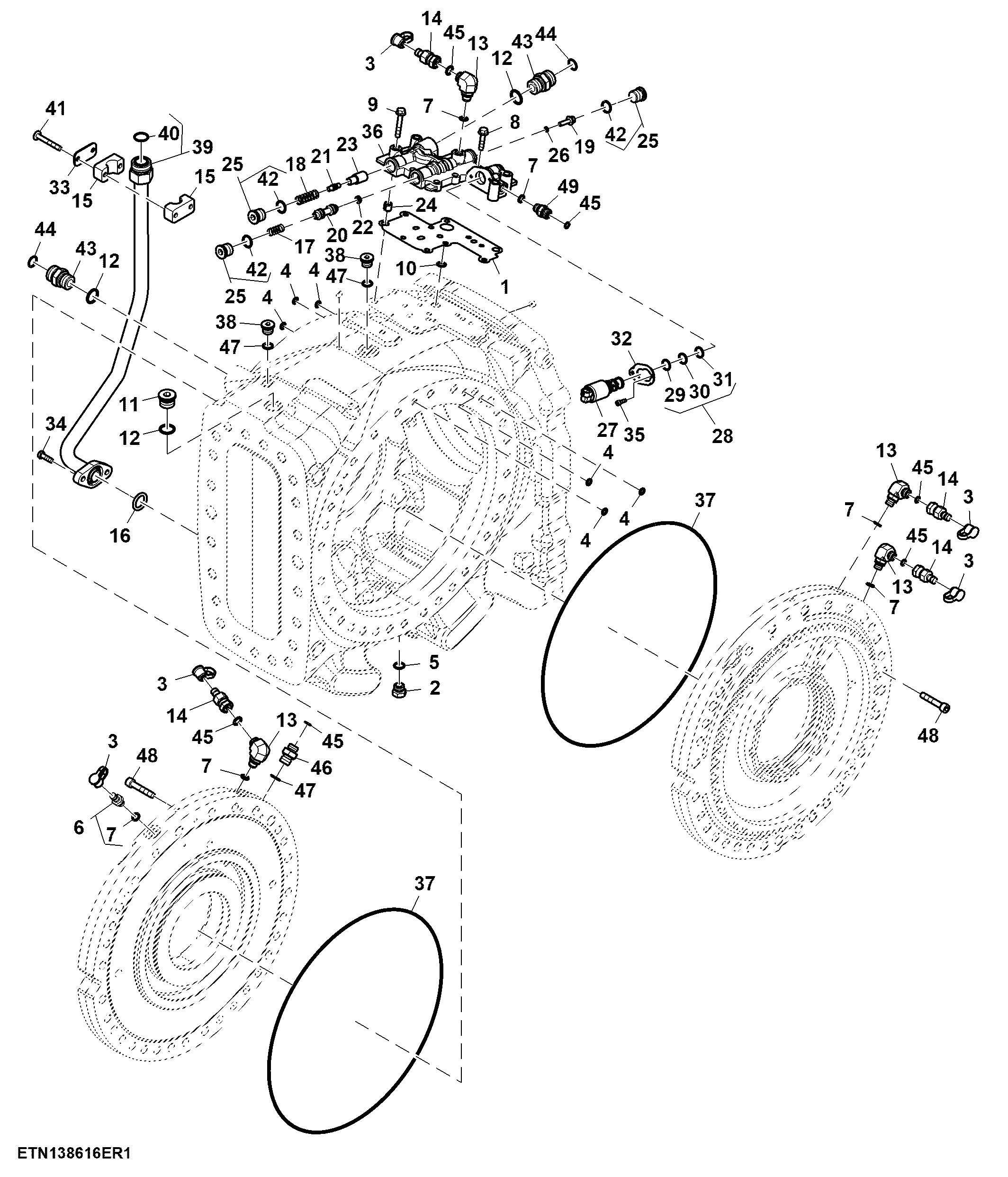

Front Differential Case, Double Reduction (1/2) (056101 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R331227	1	Gasket	Valve Housing Gasket
2	AH229778	1	Drain Plug	-
3	R77175	5	Cover	-
4	51M7040	6	O-Ring	9.300 X 2.200 mm
5	R26375	1	O-Ring	-
6	RE190805	1	Diagnostic Coupling	-
7	51M7041	6	O-Ring	11.300 X 2.200 mm
8	19M7897	6	Screw	M8 X 35
9	19M8319	4	Screw	M8 X 50
10	51M7096	1	O-Ring	13.300 X 2.200 mm
11	64M1022	1	Drain Plug	-
12	51M7047	3	O-Ring	23.600 X 2.900 mm
13	38H5016	4	Elbow Fitting	-
14	RE60701	4	Diagnostic Coupling	-
15	H142721	2	Clamp	-
16	R105416	1	O-Ring	-
17	R273398	1	Compression Spring	-
18	R346607	1	Spring	-
19	R539146	1	Spool Valve	Shuttle Valve
20	R539147	1	Spool Valve	Shuttle Valve
21	R212714	1	Pin	-
22	R539154	1	Sealing Washer	-
23	R218648	1	Spool Valve	Lube Relief Valve
24	34M7190	2	Spring Pin	14 X 14 mm
25	RE162743	3	Fitting Plug	-
26	51M7052	1	O-Ring	6.071 X 1.626 mm
27	RE211157	1	Solenoid Valve	Y666, Rear Differential Lock Solenoid INCLUDES R104554, R104555 AND R104556
28	RE47392	1	O-Ring Kit	-
29	R104554	1	Ring	ORDER RE47392
30	R104555	1	Ring	ORDER RE47392
31	R104556	1	Ring	ORDER RE47392
32	R211082	1	Clamp	-
33	T162005	1	Strap	-
34	19M7163	2	Cap Screw	M8 X 25
35	19M9478	2	Screw	M5 X 16
36	R550444	1	Housing	-
37	R552391	2	O-Ring	-
38	64M1019	2	Drain Plug	-
39	RE581007	1	Oil Line	-
40	T76938	1	O-Ring	-
41	RE580920	2	Screw	MF 19M10442
42	51M7045	3	O-Ring	19.300 X 2.200 mm
43	38H5005	2	Adapter Fitting	INCLUDES 51M7047
44	T77858	2	O-Ring	-
45	T77613	6	O-Ring	-
46	38H5012	1	Adapter Fitting	-
47	51M7043	3	O-Ring	15.300 X 2.200 mm
48	19M10343	4	Socket Head Screw	M10 X 55
49	38H5002	1	Adapter Fitting	INCLUDES 51M7041

Front Differential Case, Double Reduction (1/2) (056101 - )
