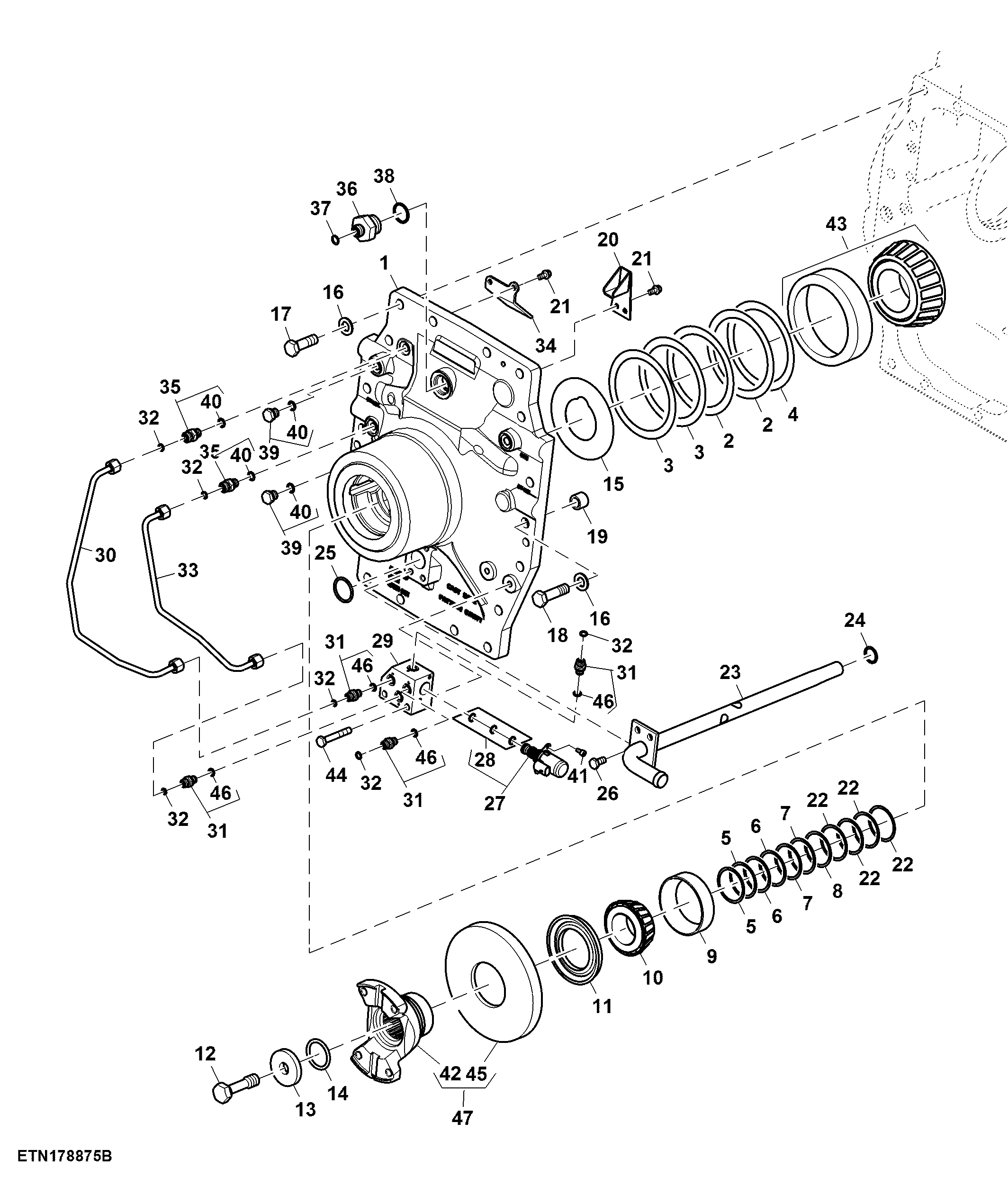

Front Axle Input Cover, Single Reduction (056006 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R206610	1	Cover	-
2	R81362	1	Shim	TK = 0.08 mm
3	R81363	1	Shim	TK = 0.13 mm
4	R81364	1	Shim	TK = 0.25 mm
5	R58255	1	Shim	TK = 0.178 mm
6	R58256	1	Shim	TK = 0.254 mm
7	R58257	1	Shim	TK = 0.3048 mm
8	R58258	1	Shim	TK = 0.381 mm
9	JD8255	1	Bearing Cup	-
10	JD8941	1	Bearing Cone	-
11	RE581479	1	Seal	-
12	R98309	1	Cap Screw	-
13	W23832	1	Spacer	-
14	U11017	1	O-Ring	-
15	R134161	1	Plate	-
16	R135543	18	Washer	-
17	19M7409	16	Cap Screw	M16 X 50
18	R119211	2	Self-Locking Screw	-
19	T14386	2	Bushing	-
20	RE69119	1	Plate	-
21	R88246	4	Cap Screw	-
22	R229673	1	Shim	TK = 0.076 mm
23	RE218587	1	Elbow Fitting	-
24	R56751	1	O-Ring	-
25	U10289	1	O-Ring	-
26	19M7166	4	Cap Screw	M10 X 20
27	RE305430	1	Solenoid Valve	Y504, Single Reduction Axle Differential Lock Solenoid
28	AT224873	1	Seal Kit	-
29	R341050	1	Manifold	-
30	RE584301	1	Line	-
31	38H5008	4	Adapter Fitting	-
32	T77613	6	O-Ring	-
33	RE584300	1	Line	-
34	R130597	1	Deflector	-
35	38H5002	2	Adapter Fitting	-
36	38H5155	1	Adapter Fitting	-
37	T77857	1	O-Ring	-
38	51M7048	1	O-Ring	29.600 X 2.900 mm
39	RE46684	3	Fitting Plug	-
40	51M7041	5	O-Ring	11.300 X 2.200 mm
41	19M7887	2	Screw	M5 X 10
42	R561783	1	Universal Joint Yoke	-
43	RE48761	1	Tapered Roller Bearing	-
44	19M7742	2	Cap Screw	M10 X 65
45	R561782	1	Oil Slinger	-
46	51M7040	4	O-Ring	9.300 X 2.200 mm
47	RE585909	1	Universal Joint Yoke	-

Front Axle Input Cover, Single Reduction (056006 - )
