Открытый узел

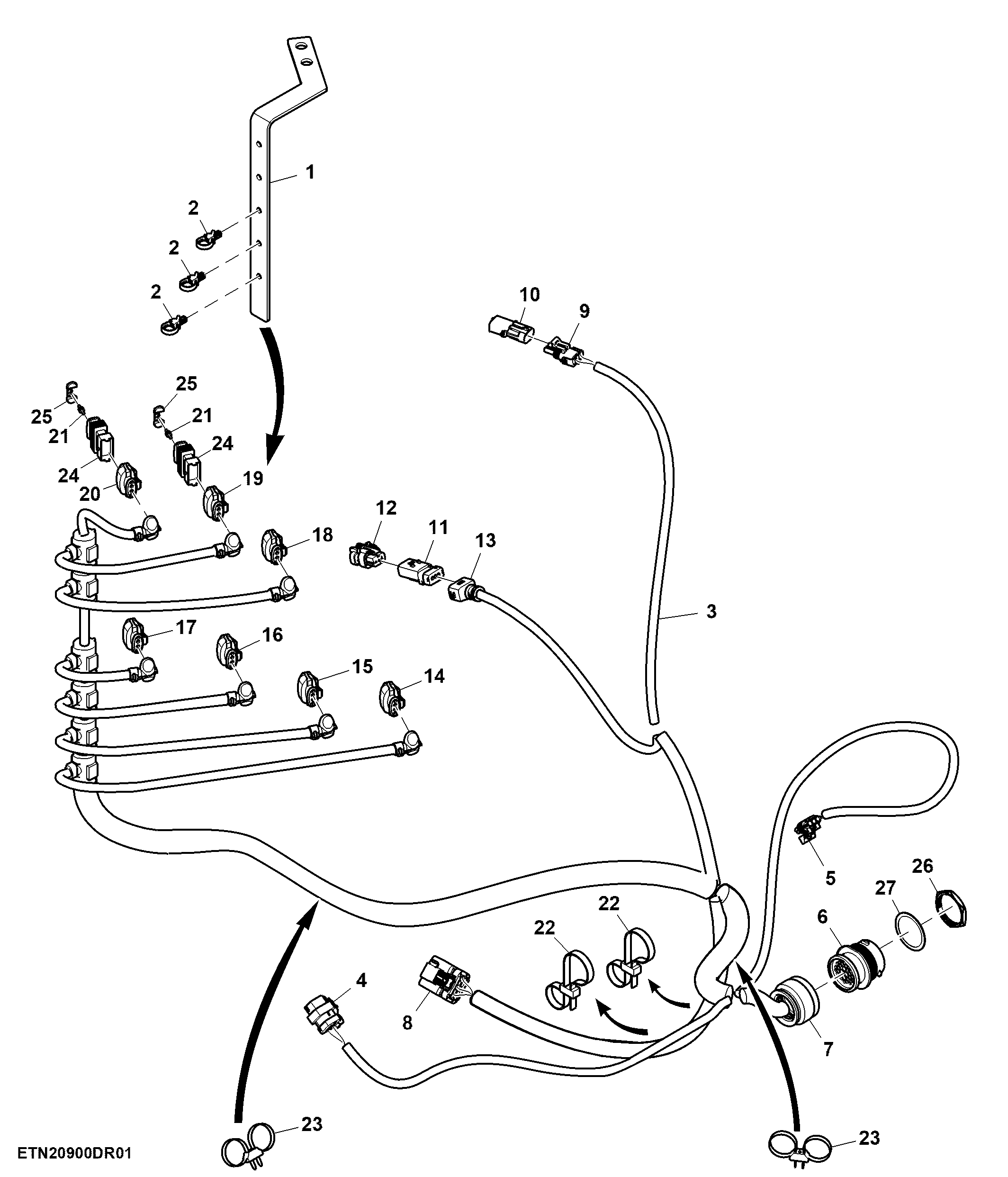

Chassis Wiring Harness, Hitch W/ Quick Coupler, Double Reduction Axle (064037 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R552932	1	Bracket	-
2	57M10233	3	Tie Band	-
3	RE573996	1	Chassis Wiring Harness	-
4	57M9786	1	Elec. Connector Housing	B698, Rear Hitch Position Sensor
4	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
5	57M7255	1	Elec. Connector Housing	Draft Sensor B231
5	57M7290	1	Elec. Connector Accessory	-
5	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
6	57M11419	1	Elec. Connector Housing	X320B, Chassis to Rear Chassis Harness Interconnect 1
6	RWA10832	1	Repair Wire Assembly	Cavity 3
6	RWA11119	1	Repair Wire Assembly	Cavity 4
6	RWA11056	1	Repair Wire Assembly	Cavity 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 23, 24, 28, 29
7	57M9383	1	Elec. Connector Accessory	-
8	57M10299	1	Elec. Connector Housing	Trailer Lighting Connector 2 X129A
8	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8
9	RE12363	1	Electrical Connector Assy	Implement Switch (NC) S549
9	RWA11147	1	Repair Wire Assembly	Cavity A, B
10	R78053	1	Electrical Connector Assy	S549A
10	57M8325	1	Electrical Connector Assy	-
11	57M9784	1	Elec. Connector Housing	Outlet Rear Trailer Lighting and Accessories X100A
11	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3
12	57M9780	1	Elec. Connector Housing	-
13	57M9838	1	Elec. Connector Accessory	-
14	57M9498	1	Elec. Connector Housing	SCV 1 A701
14	RWA11112	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
15	57M9498	1	Elec. Connector Housing	SCV 2 A702
15	RWA11112	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
16	57M9498	1	Elec. Connector Housing	Hitch SCV A800
16	RWA11112	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
17	57M9498	1	Elec. Connector Housing	SCV 3 A703
17	RWA11112	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
18	57M9498	1	Elec. Connector Housing	SCV 4 A704
18	RWA11112	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
19	RWA11112	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
19	57M9500	1	Elec. Connector Accessory	-
19	57M9498	1	Elec. Connector Housing	SCV 5 A705
20	57M9498	1	Elec. Connector Housing	SCV 6 A706
20	57M9500	1	Elec. Connector Accessory	-
20	RWA11112	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
21	57M7259	8	Elec. Connector Seal	-
22	57M10421	2	Elec. Connector Accessory	-
23	57M12741	2	Elec. Connector Accessory	-
24	57M11354	2	Elec. Connector Housing	-
25	57M9500	2	Elec. Connector Accessory	-
26	57M8035	1	Nut	-
27	57M9061	1	Elec.Connect Locking Device	-

Chassis Wiring Harness, Hitch W/ Quick Coupler, Double Reduction Axle (064037 - )

Нет текстового описания
