Arm, Front Axle Suspension, Double Reduction

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24M7242	34	Washer	21.400 X 42 X 5 mm
2	R559236	19	Cap Screw	M20 X 120
3	19M9162	11	Cap Screw	M20 X 90
4	T226526	1	Shim	TK = 3.175 mm
5	R72653	1	Snap Ring	-
6	T102137	4	Seal	-
7	R539557	2	Pin Fastener	-
8	A4365R	1	O-Ring	-
9	E12379	2	Nut	-
10	JD7838	1	Adapter Fitting	-
11	14H860	2	Nut	1/4"
12	P48347	1	O-Ring	-
13	14M7168	2	Lock Nut	M12
14	19M7949	2	Cap Screw	M12 X 100
15	R100686	1	Support	Position Sensor Shaft
16	R35482	4	Dowel Pin	-
17	R543385	1	Mounting Parts	-
18	R556342	1	Arm	SUB FOR R543498
18	R572607	1	Arm	-
19	RE567496	1	Shaft	Sensor Arm
20	RE583400	1	Tie Rod Assembly	ORDER RE587733; SUB FOR RE567497
21	RE581714	1	Hose	Grease Line SUB FOR RE569310
22	JD7797	2	Lubrication Fitting	-
23	R545368	1	Plate	Sensor Linkage Mounting
24	RE583971	1	Hose	Grease, Front Axle Suspension SUB FOR RE569311
25	RE579710	2	Pin Fastener	SUB FOR RE567495
26	12M7060	2	Washer	5.300 mm
27	R559207	1	Plate	Sensor Mounting SUB FOR R544165
28	19M7867	2	Screw	M8 X 25
29	R546583	2	Locking Collar	-
30	R546649	4	Washer	-
31	21H1383	2	Screw	0.190" X 2"
32	14H631	2	Nut	0.190"
33	19M7865	5	Screw	M8 X 16
34	19M8183	2	Cap Screw	M10 X 90
35	R548779	2	Pin	-
36	R105388	1	Tie Band	-
37	T119912	2	Washer	-
38	19M7369	2	Cap Screw	M16 X 60
39	RE330747	1	Sensor	B301, Suspended Front Axle Position Sensor
40	R342922	2	Bushing	-
41	R551346	1	Clamp	-
42	19M9134	4	Cap Screw	M20 X 80
43	R168162	2	Snap Ring	-
44	R217292	2	Clamp	USE WITH RE569311
44	N191985	2	Clip	USE WITH RE583971
45	14H850	1	NUT	1/4", USE WITH RE587733
46	14H1025	1	Nut	1/4", USE WITH RE587733
47	RE587733	1	Tie Rod Assembly	-

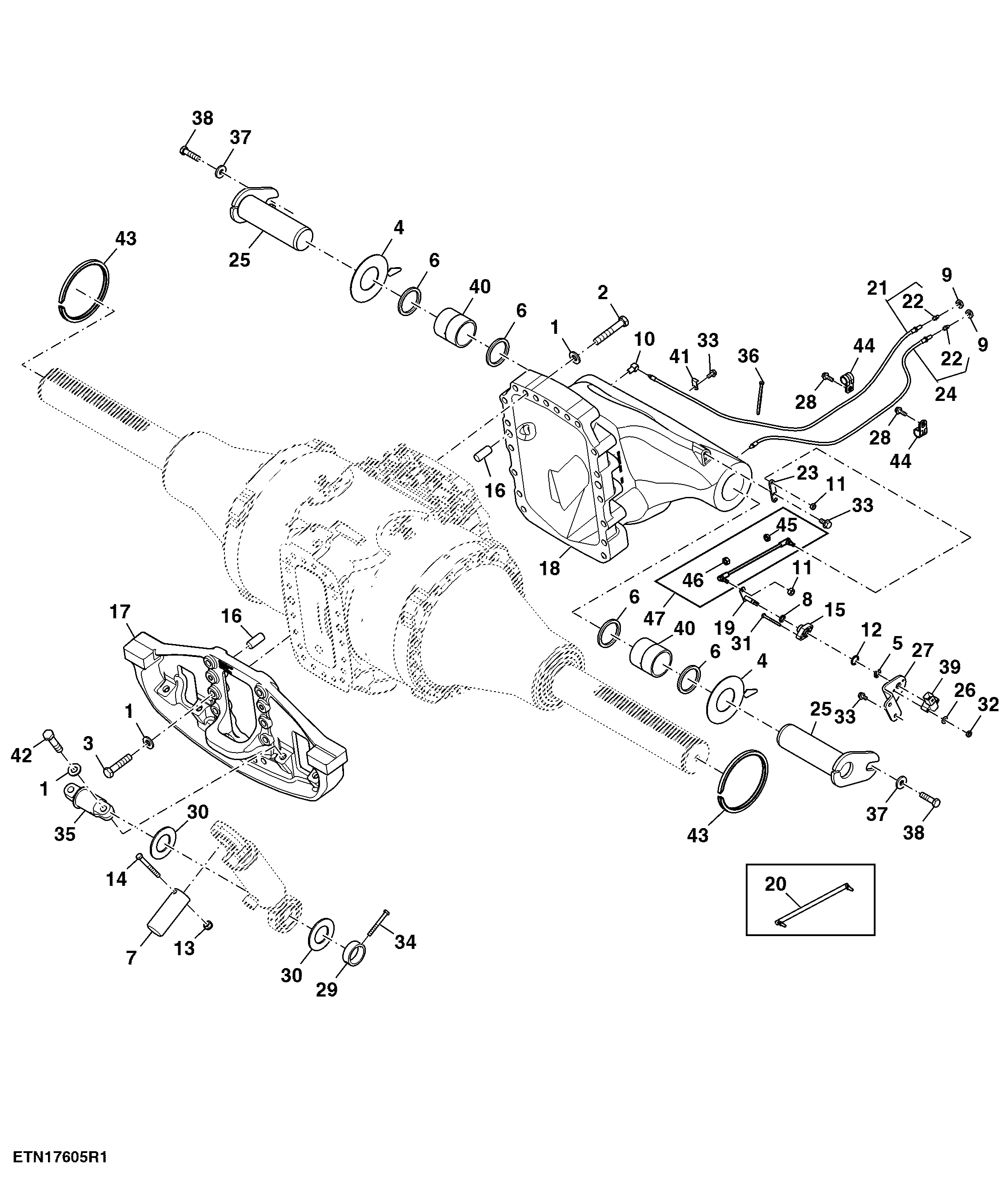

Arm, Front Axle Suspension, Double Reduction
