Большое обновление пильных узлов

Смотреть

Открытый узел

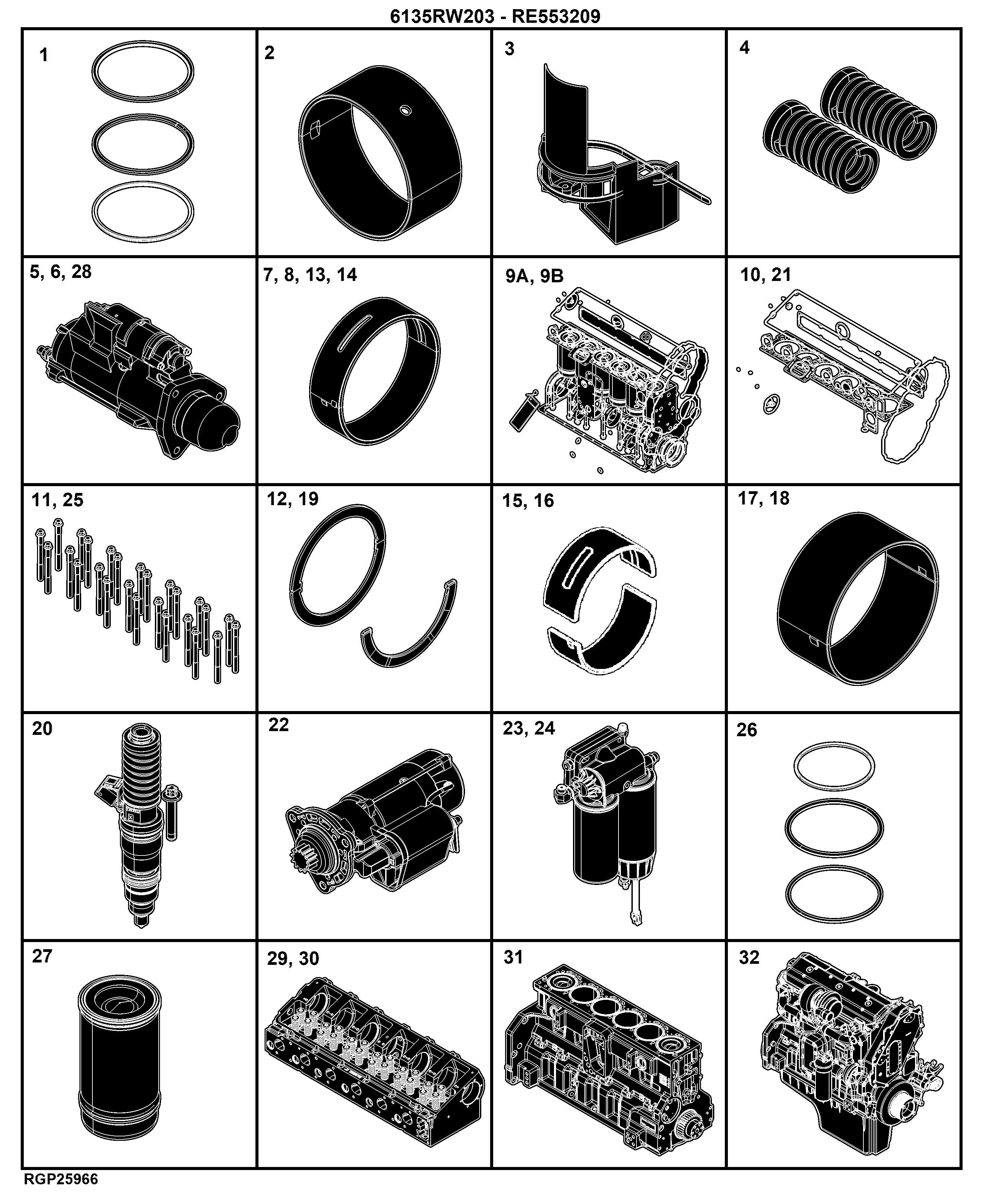

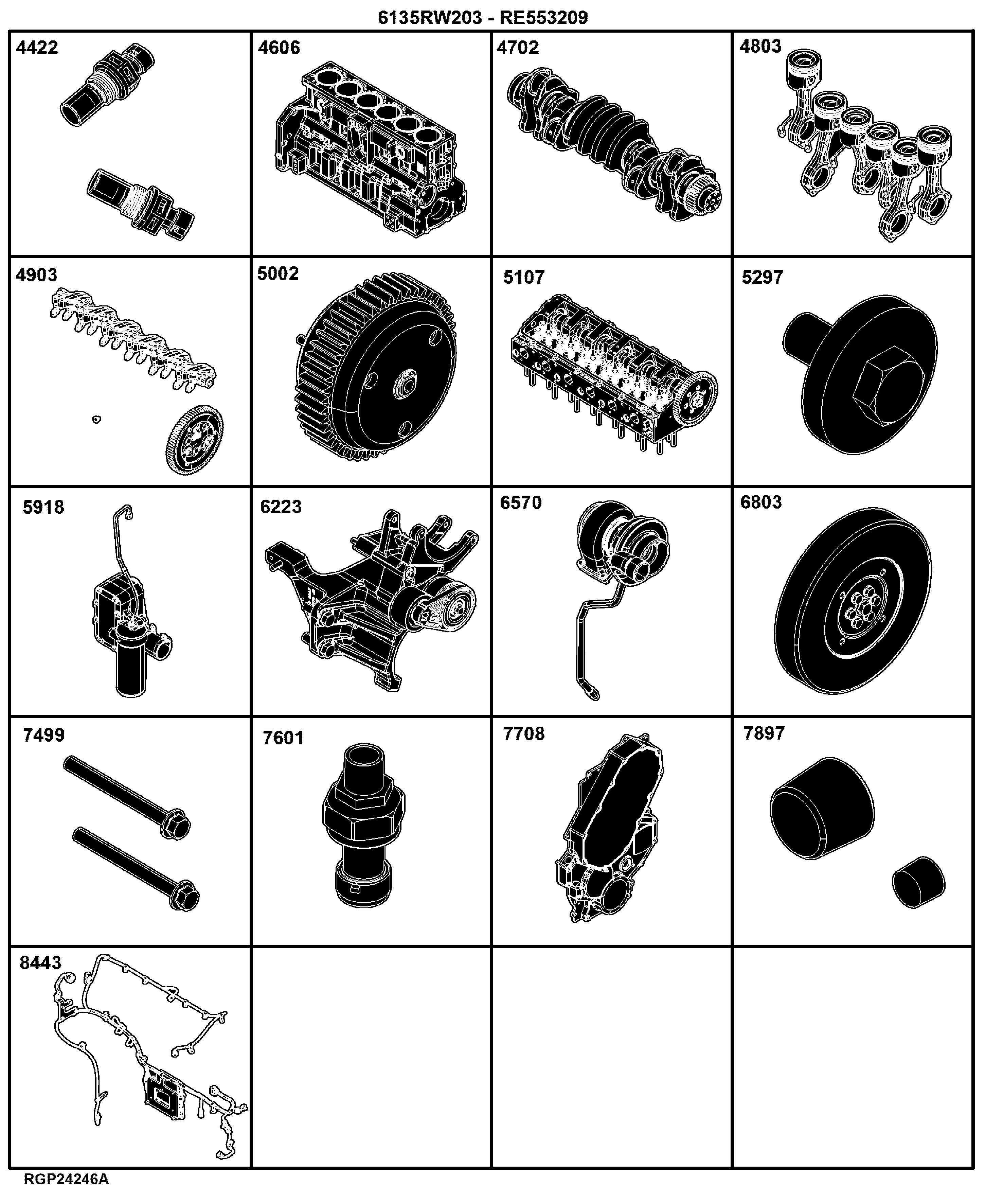

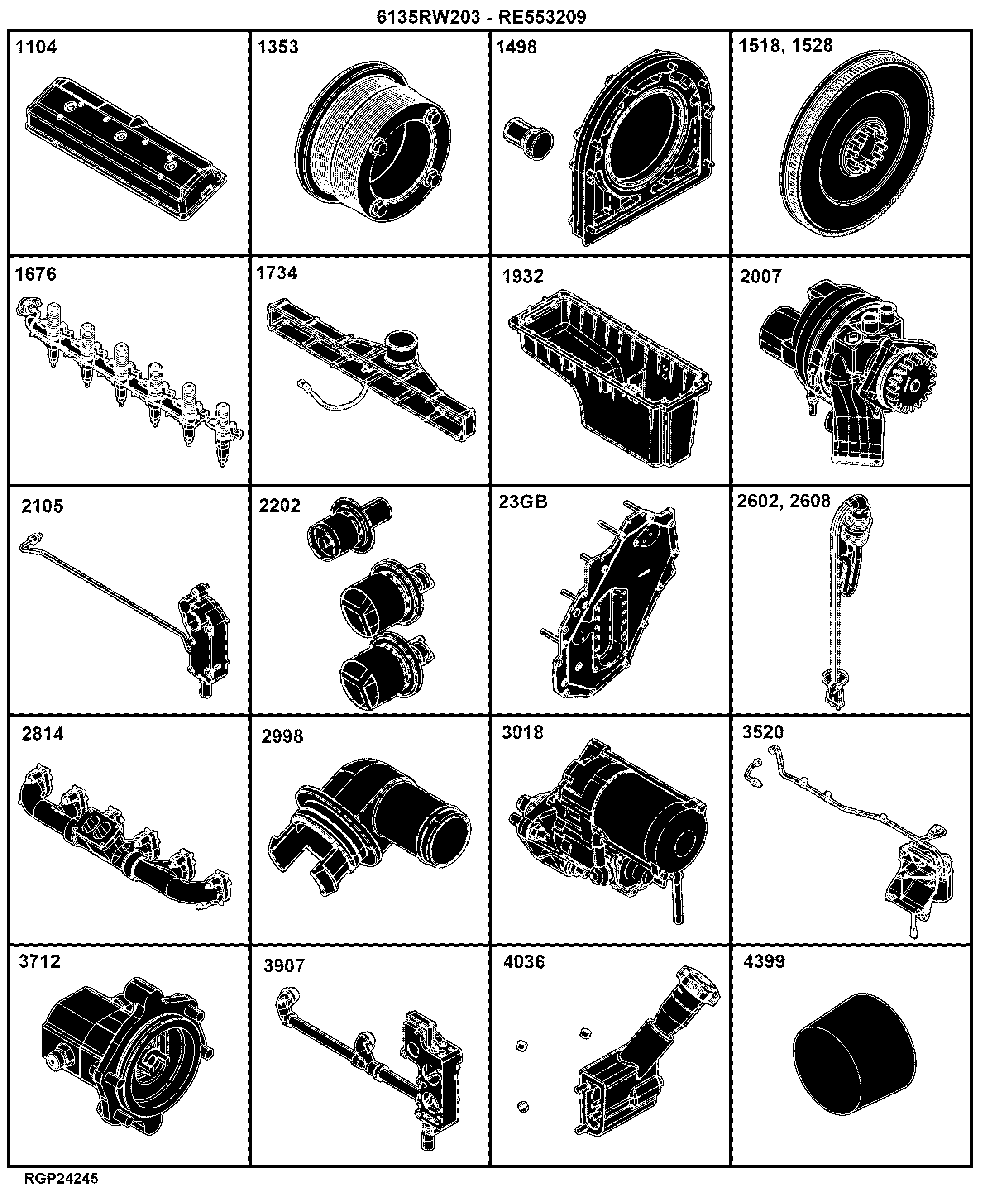

20 Engine 6135RW203-RE553209-ETN113363-ETN20396

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Crankshaft Main Bearing Kit, Undersized	-
-	-	1	9901 Engine Overhaul Kit 2/2	-
-	-	1	9901 Engine Overhaul Kit 1/2	-
-	-	1	9901 Engine Gasket Kit	-
-	-	1	9901 Cylinder Head Kit	-
-	-	1	9901 Cylinder Head Bolt Kit	-
-	-	1	9901 Cylinder Head Bolt Kit	-
-	-	1	9901 Cylinder Head and Valves	-
-	-	1	9901 Crankshaft Thrust Bearing Kit, Undersized	-
-	-	1	9901 Crankshaft Thrust Bearing Kit, Undersized	-
-	-	1	9901 Fuel Filter Kit	-
-	-	1	9901 Crankshaft Main Bearing Kit, Undersized	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	9901 Connecting Rod Bearings, Undersized	-
-	-	1	9901 Connecting Rod Bearings, Undersized	-
-	-	1	9901 Complete Block Assembly	-
-	-	1	9901 Bearing Kit, Connecting Rod	-
-	-	1	8431 Engine Wiring Harness	-
-	-	1	7897 Air Compressor Mounting Plug	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Valve, Spring, Rotator	-
-	-	1	9901 Thrust Washer Kit	-
-	-	1	9901 Thrust Washer Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Starter Terminal Cover Kit	-
-	-	1	9901 Starter Solenoid Cover Kit	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	7708 Timing Gear Cover	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Injector Kit	-
-	-	1	9901 Gasket Kit, Cylinder Head	-
-	-	1	9901 Fuel Filter Kit	-
-	-	1	2105 Thermostat Cover	-
-	-	1	3520 Fuel Filter	-
-	-	1	3018 Starter Motor	-
-	-	1	2998 Ventilating System	-
-	-	1	2814 Exhaust Manifold	-
-	-	1	2608 Engine Coolant Heater (011237 - )	-
-	-	1	2602 Engine Coolant Heater ( - 011236)	-
-	-	1	23GB Fan Drive, Cover	-
-	-	1	2202 Thermostat	-
-	-	1	3712 Fuel Transfer Pump	-
-	-	1	2007 Water Pump	-
-	-	1	1932 Oil Pan	-
-	-	1	1734 Air Intake	-
-	-	1	1676 Electronic Unit Injector	-
-	-	1	1528 Flywheel (008959 - )	-
-	-	1	1518 Flywheel ( - 008958)	-
-	-	1	1498 Flywheel Housing	-
-	-	1	1353 Crankshaft Pulley	-
-	-	1	5002 Engine Oil Pump	-
-	-	1	7601 Oil Pressure Switch	-
-	-	1	7499 Air Conditioner Mounting Hardware	-
-	-	1	6803 Pulley with Dampener	-
-	-	1	6570 Turbocharger	-
-	-	1	6223 Alternator Mounting	-
-	-	1	5918 Engine Oil Cooler and Oil Filter	-
-	-	1	5297 Auxiliary Drive Hardware	-
-	-	1	5107 Cylinder Head with Valves	-
-	-	1	1104 Valve Cover	-
-	-	1	4903 Valve Actuating Mechanism	-
-	-	1	4803 Connecting Rods and Pistons	-
-	-	1	4702 Crankshaft and Bearings	-
-	-	1	4606 Cylinder Block	-
-	-	1	4422 Sensors	-
-	-	1	4399 Starting Aid Plug	-
-	-	1	4036 Dipstick Tube	-
-	-	1	3907 Thermostat Housing	-

20 Engine 6135RW203-RE553209-ETN113363-ETN20396

Нет текстового описания
