Selective Control Valve and Lines, High Flow, 4 SCV (For Scraper)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE292728	1	Manifold	-
2	RE307841	4	Selective Control Valve	-
2	RE588376	4	Selective Control Valve	SUB FOR RE580229
3	RE573038	4	Breakaway Coupler	ORDER RE593895; SUB FOR RE298944
3	RE593895	4	Breakaway Coupler	-
4	RE294397	1	Manifold	ORDER RE557712
4	RE557712	1	Manifold	ALSO ORDER (2) RE572380
5	RE289198	1	Manifold	ORDER RE557708
5	RE557708	1	Manifold	ALSO ORDER (2) RE572380
6	RE289055	1	Cover	Number I, Green, SCV Coupler ORDER RE574941
7	RE289056	1	Cover	Number II, Blue, SCV Coupler ORDER RE574660
8	RE289057	1	Cover	Number III, Brown, SCV Coupler ORDER RE574942
9	RE289058	1	Cover	Number IV, Black, SCV Coupler ORDER RE574943
10	RE313875	1	Stud Kit	-
11	19M7790	3	Screw	M12 X 35
12	14M7299	3	Flange Nut	M12
13	R310205	1	Plate	ORDER R571280
13	R571280	1	Plate	-
14	R310108	1	Plate	-
15	R320516	3	Tie Rod Assembly	-
16	38H5192	8	Fitting	-
17	51M7045	8	O-Ring	19.300 X 2.200 mm
18	T77932	8	O-Ring	-
19	RE309120	2	Hydraulic Hose	(1st SCV (Green))
20	RE309121	2	Hydraulic Hose	(2nd SCV (Blue))
21	RE309122	2	Hydraulic Hose	(3rd SCV (Brown))
22	RE320551	2	Hydraulic Hose	(4th SCV (Black))
23	28H3478	3	Bushing	0.546" X 0.840" X 1-3/4"
24	19M7818	3	Screw	M12 X 80
25	RE572380	4	Adapter Fitting	-
26	51M7047	6	O-Ring	23.600 X 2.900 mm
27	64M1022	5	Drain Plug	-
28	RE46685	5	Fitting Plug	-
29	51M7043	5	O-Ring	15.300 X 2.200 mm
30	RE46684	2	Fitting Plug	-
31	51M7041	2	O-Ring	11.300 X 2.200 mm
32	RE574941	1	Cover	Number I, Green, SCV Coupler
33	RE574660	1	Cover	Number II, Blue, SCV Coupler
34	RE574942	1	Cover	Number III, Brown, SCV Coupler
35	RE574943	1	Cover	Number IV, Black, SCV Coupler

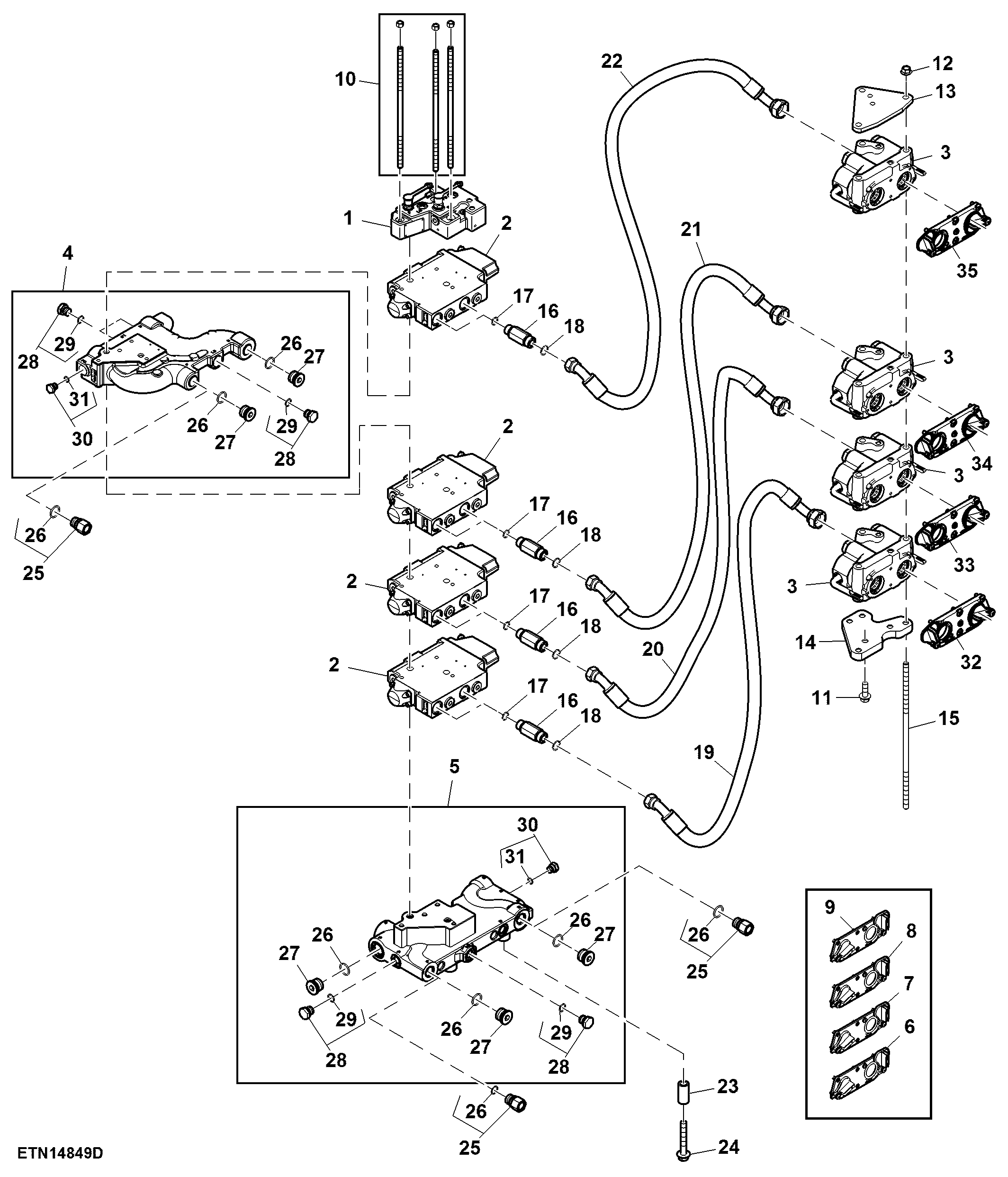

Selective Control Valve and Lines, High Flow, 4 SCV (For Scraper)
