Открытый узел

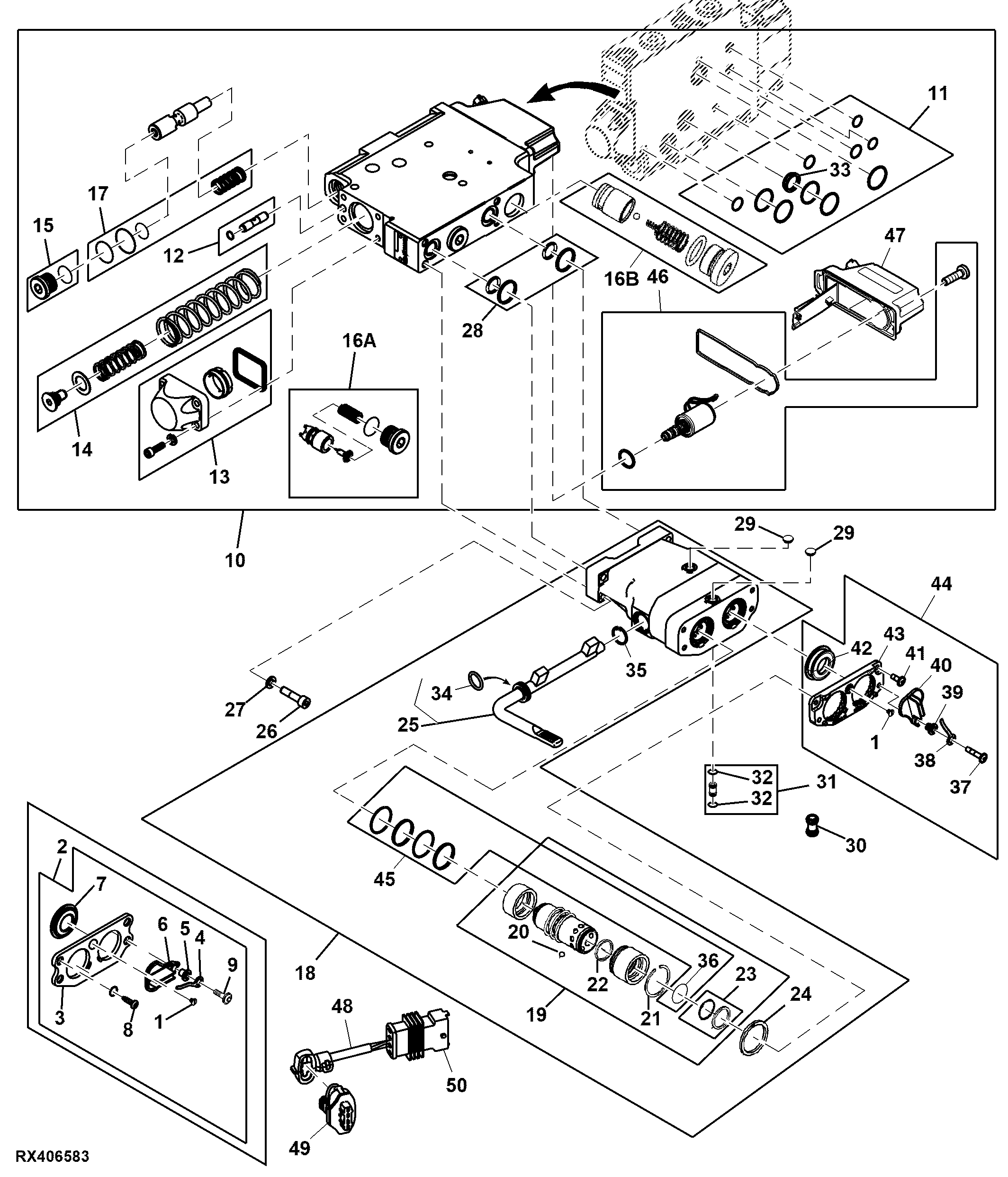

Selective Control Valve, Standard Flow

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L170556	1	Plug	(SCV II / Blue)
1	L170555	1	Plug	(SCV I / Green)
1	L200312	1	Plug	(SCV V / Violet)
1	L102157	1	Plug	(SCV IV / Black)
1	L170557	1	Plug	(SCV III / Brown)
2	RE289055	1	Cover	(SCV I / Green)
2	RE289056	1	Cover	(SCV II / Blue)
2	RE289057	1	Cover	(SCV III / Brown)
2	RE289058	1	Cover	(SCV IV / Black)
2	RE289059	1	Cover	(SCV V / Violet)
3	R309935	2	Retainer	-
4	R124008	2	Spring	-
5	R124009	2	Bushing	-
6	R289061	2	Door	(SCV I / Green)
6	R289062	2	Door	(SCV II / Blue)
6	R289063	2	Door	(SCV III / Brown)
6	R209409	2	Valve Cover	(SCV IV / Black)
6	R289065	2	Door	(SCV V / Violet)
7	R209748	2	Seal	-
8	21M7500	2	Screw	M6 X 12
9	19M8875	1	Screw	M6 X 25
10	RE308284	1	Selective Control Valve	-
10	RE588375	1	Selective Control Valve	SUB FOR RE580227
11	RE582808	1	Seal Kit	SUB FOR RE279692
12	RE279693	1	Valve Kit	USE WITH RE308284
13	RE279694	1	Cap Kit	-
14	RE279695	1	Spring Kit	USE WITH RE308284
14	RE568184	1	Spring Kit	USE WITH RE588375 OR RE580227
15	RE279696	1	Plug Kit	-
17	RE279699	1	Spring Kit	USE WITH RE308284
17	RE568186	1	Spring Kit	USE WITH RE588375 OR RE580227
18	RE559659	1	Breakaway Coupler	(SCV I / Green) SUB FOR RE262015
18	RE559660	1	Breakaway Coupler	(SCV II / Blue) (SCV IV / Black) SUB FOR RE262016; Horizontal
18	RE559661	1	Breakaway Coupler	(SCV III / Brown) (SCV V / Violet) SUB FOR RE262017; Offset
19	RE577560	2	Breakaway Coupler	SUB FOR RE256693
20	R107859	20	Ball	-
21	-	2	Part 40	-
22	R222761	2	O-Ring	-
23	RE186599	2	Seal	-
24	R186598	2	Snap Ring	-
25	RE271733	1	Lever	-
26	R266977	4	Socket Head Screw	-
27	24M7095	4	Washer	8.400 X 15 X 1.600 mm
28	RE281895	1	Seal Kit	-
29	R267667	2	Cap	-
30	R267668	2	Hose Fitting	-
31	RE272882	1	Tube	-
32	R10093	2	O-Ring	-
33	R540643	1	Valve	-
34	R27564	1	O-Ring	-
35	R207188	1	Ring	-
36	R257100	2	Snap Ring	-
37	19M9178	2	Screw	M6 X 30
38	-	2	Part 57	-
39	-	2	Part 58	-
40	-	2	Part 63	(SCV V / Violet)
40	-	2	Part 60	(SCV II / Blue)
40	-	2	Part 61	(SCV III / Brown)
40	-	2	Part 62	(SCV IV / Black)
40	-	2	Part 59	(SCV I / Green)
41	19M8648	2	Screw	M6 X 16
42	L214847	2	Grommet	-
43	R552383	1	Retainer	-
44	RE574660	1	Cover	Number II, Blue, SCV Coupler
44	RE574942	1	Cover	Number III, Brown, SCV Coupler
44	RE574943	1	Cover	Number IV, Black, SCV Coupler
44	RE574941	1	Cover	Number I, Green, SCV Coupler
44	RE574944	1	Cover	Number V, Violet, SCV Coupler
45	RE186600	2	Seal	-
46	RE580941	1	Valve Kit	SUB FOR RE341710
47	RE567656	1	Electronic Control Unit	USE WITH RE308284
47	RE567604	1	Electronic Control Unit	USE WITH RE580227
47	RE588373	1	Electronic Control Unit	USE WITH RE588375
48	RE343006	1	Wiring Harness	-
49	57M9498	1	Elec. Connector Housing	-
50	57M9500	1	Elec. Connector Accessory	-
16A	RE279697	1	Valve Kit	USE WITH RE308284
16A	RE568185	1	Check Valve	ORDER RE591268
16B	RE591268	1	Check Valve	USE WITH RE588375 OR RE580227

Selective Control Valve, Standard Flow

Нет текстового описания
