Открытый узел

Selective Control Valve Lines, W/O Hitch, PST

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE312606	1	Oil Line	Rear SCV Return
2	RE312607	1	Oil Line	SCV Pressure Rear
3	RE288842	1	Oil Line	Rear SCV Load Sense INCLUDES T77613
4	RE290034	1	Hydraulic Hose	Load Sense Hose
5	RE304624	1	Hydraulic Hose	SCV Return INCLUDES (2) T76938
6	RE304625	1	Hydraulic Hose	SCV Supply INCLUDES T77858
7	RE304626	1	Hydraulic Hose	SCV Load Sense INCLUDES T77613
8	RE60701	2	Diagnostic Coupling	Diagnostic
9	T77857	2	O-Ring	-
10	38H5002	2	Adapter Fitting	-
11	38H5009	1	Adapter Fitting	-
12	38H5129	1	Elbow Fitting	-
13	38H5020	1	Elbow Fitting	-
14	T76938	4	O-Ring	-
15	38H5105	1	Tee Fitting	-
16	38H5264	1	Adapter Fitting	-
17	T77858	3	O-Ring	-
18	AH77714	1	Clip	-
19	H111730	2	Clamp	-
20	H112567	2	Plate	-
21	R154025	1	Hose Guard	-
22	H120847	2	Clamp	-
23	R105388	4	Tie Band	-
24	R109479	1	Clamp	-
25	R129323	1	Clamp	-
26	R129325	4	Clamp	-
27	H131116	1	Bolt	-
28	19M9225	2	Cap Screw	M8 X 150
29	R184956	1	Hose	-
30	R202160	1	Clamp	-
31	R261945	1	Bracket	-
32	RE304642	1	Hydraulic Hose	SCV Zero Pressure Drain
33	R77175	2	Cover	-
34	RE187161	1	Clamp	-
35	14M7274	2	Nut	M10
36	19M7348	2	Cap Screw	M10 X 150
37	19M8162	2	Screw	M10 X 40
38	19M8318	1	Screw	M8 X 45
39	24M7239	4	Washer	10.700 X 21 X 2.500 mm
40	R334808	1	Guard	-
41	28H3428	2	Spacer	0.423" X 0.675" X 3-1/16"
42	38H1095	1	Elbow Fitting	-
43	RE210893	1	Plate	-
44	64M5010	1	Drain Plug	-
45	RE69746	1	Clamp	-
46	38H5016	1	Elbow Fitting	-
47	E53830	1	Clamp	-
48	28H3377	1	Bushing	0.423" X 0.675" X 1-3/4"
49	19M7803	1	Screw	M8 X 70
50	14M7396	3	Lock Nut	M8
51	38H5206	1	Adapter Fitting	-
52	RE322145	1	Oil Line	SCV Return
53	T140924	1	Clamp	-
54	19M7784	3	Screw	M10 X 20
55	T77613	7	O-Ring	-
56	19M7799	1	Screw	M8 X 45
57	51M7041	4	O-Ring	11.300 X 2.200 mm
58	51M7048	4	O-Ring	29.600 X 2.900 mm
59	51M7047	1	O-Ring	23.600 X 2.900 mm
60	24M7336	2	Washer	9 X 16 X 1.600 mm
61	R150262	1	Isolator	-
62	R76477	2	Tie Band	-
63	42M7008	1	Stud	-

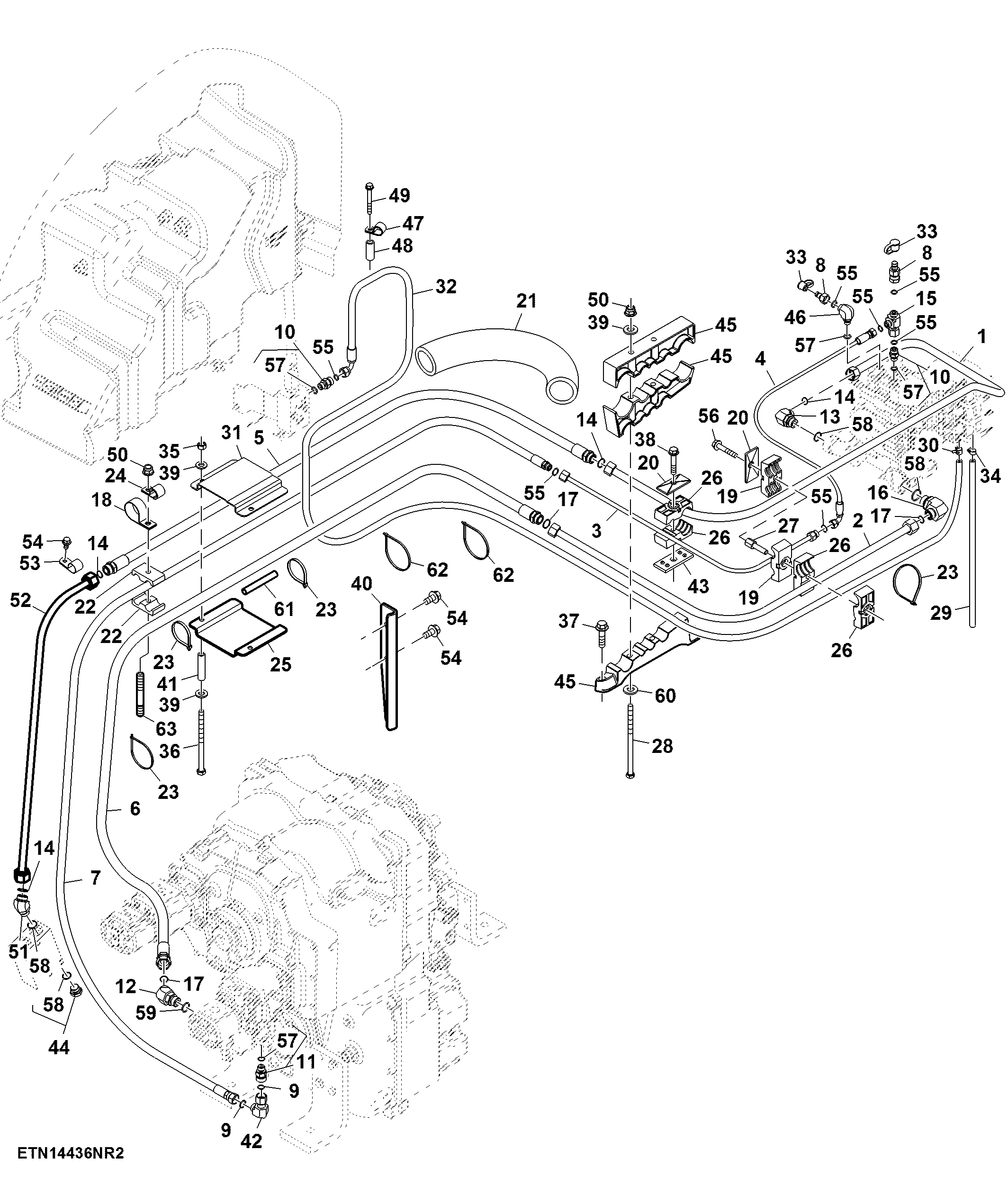

Selective Control Valve Lines, W/O Hitch, PST
