Открытый узел

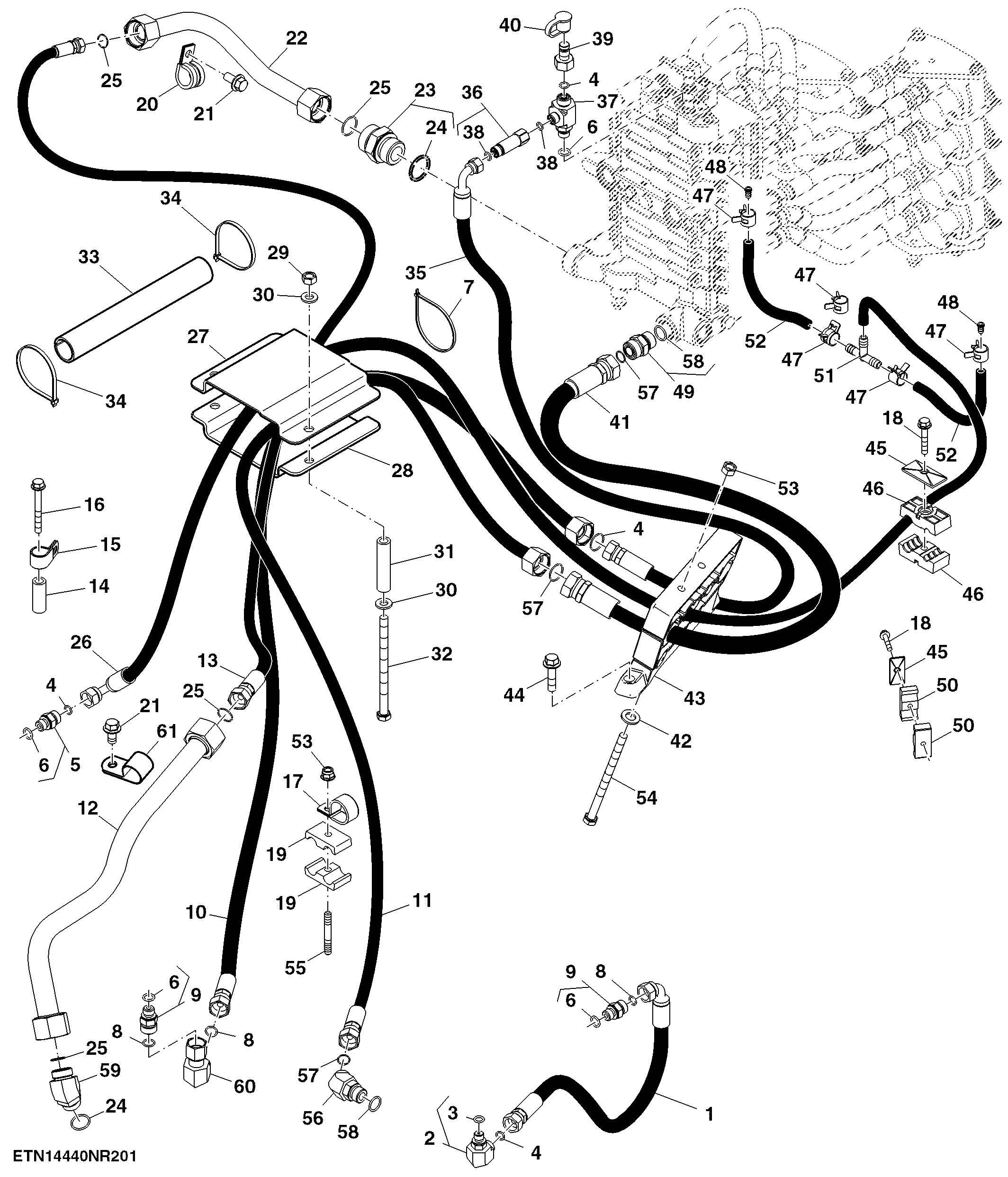

Selective Control Valve Lines, High Flow, Scraper, PST, No Hitch ( 1/2 )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE557656	1	Hydraulic Hose	Small Pump Load Sense SUB FOR RE303235
2	38H5022	1	Elbow Fitting	-
3	51M7040	1	O-Ring	9.300 X 2.200 mm
4	T77613	4	O-Ring	-
5	38H5002	1	Adapter Fitting	-
6	51M7041	4	O-Ring	11.300 X 2.200 mm
7	R76477	2	Tie Band	-
8	T77857	3	O-Ring	-
9	38H5009	2	Adapter Fitting	-
10	RE304626	1	Hydraulic Hose	SCV Load Sense INCLUDES T77613
11	RE304625	1	Hydraulic Hose	30.1752" X 3547 mm (139-3/4") X 30.1752", SCV Supply INCLUDES T77858
12	RE322145	1	Oil Line	SCV Return
13	RE304624	1	Hydraulic Hose	SCV Return INCLUDES (2) T76938
14	28H3377	1	Bushing	0.423" X 0.675" X 1-3/4"
15	E53830	1	Clamp	-
16	19M7803	1	Screw	M8 X 70
17	R109479	1	Clamp	-
18	19M8318	2	Screw	M8 X 45
19	H120847	2	Clamp	-
20	T102934	1	Clamp	-
21	19M7784	6	Screw	M10 X 20
22	RE309899	1	Oil Line	Scraper, SCV STD Return
23	38H5006	1	Adapter Fitting	-
24	51M7048	2	O-Ring	29.600 X 2.900 mm
25	T76938	4	O-Ring	-
26	RE304642	1	Hydraulic Hose	SCV Zero Pressure Drain
27	R261945	1	Bracket	-
28	R129323	1	Clamp	-
29	14M7274	2	Nut	M10
30	24M7239	4	Washer	10.700 X 21 X 2.500 mm
31	28H3428	2	Spacer	0.423" X 0.675" X 3-1/16"
32	19M7348	2	Cap Screw	M10 X 150
33	R150262	1	Isolator	-
34	R105388	3	Tie Band	-
35	RE309905	1	Hydraulic Hose	SCV Load Sense, HF, Scraper
36	RE264764	1	Check Valve	LS Orifice Check
37	38H5275	1	Adapter Fitting	-
38	T77814	2	O-Ring	-
39	RE60701	1	Diagnostic Coupling	Diagnostic
40	R77175	1	Cover	-
41	RE309898	1	Hydraulic Hose	-
42	24M7336	2	Washer	9 X 16 X 1.600 mm
43	RE69746	1	Clamp	-
44	19M8162	2	Screw	M10 X 40
45	H112567	2	Plate	-
46	R129326	2	Clamp	-
47	R202160	5	Clamp	-
48	R267668	2	Hose Fitting	-
49	38H5005	1	Adapter Fitting	-
50	H111730	2	Clamp	-
51	R135242	1	Tee Fitting	6 SCV
52	R297007	2	Hydraulic Hose	6 SCV
53	14M7396	3	Lock Nut	M8
54	19M9225	2	Cap Screw	M8 X 150
55	42M7008	1	Stud	-
56	38H5129	1	Elbow Fitting	-
57	T77858	3	O-Ring	-
58	51M7047	2	O-Ring	23.600 X 2.900 mm
59	38H5206	1	Adapter Fitting	-
60	38H1095	1	Elbow Fitting	-
61	T140924	1	Clamp	-

Selective Control Valve Lines, High Flow, Scraper, PST, No Hitch ( 1/2 )

Нет текстового описания
