Открытый узел

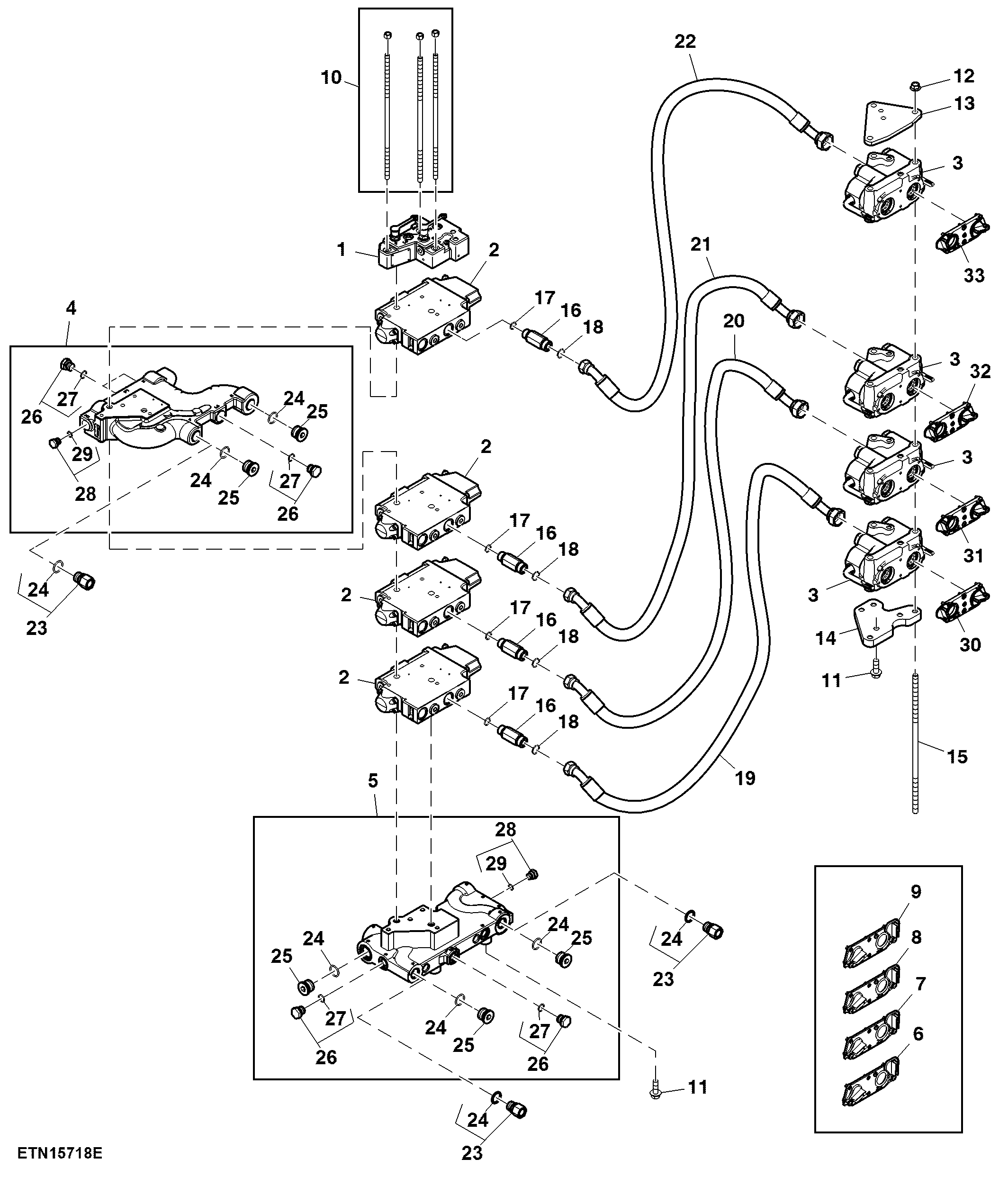

Selective Control Valve, 4 SCV, High Flow (For Scraper)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE292728	1	Manifold	(Diagnostic Manifold)
2	RE307841	4	Selective Control Valve	-
2	RE588376	4	Selective Control Valve	SUB FOR RE580229 OR RE337471
3	RE573038	4	Breakaway Coupler	ORDER RE593895; SUB FOR RE298944
4	RE294397	1	Manifold	(Mid Inlet Manifold) ORDER RE557712
4	RE557712	1	Manifold	ALSO ORDER (2) RE572380
5	RE289198	1	Manifold	(Bottom Inlet Manifold) ORDER RE557708
5	RE557708	1	Manifold	ALSO ORDER (2) RE572380
6	RE309618	1	Cover	Number I, Green, SCV Coupler ORDER RE574695
7	RE309619	1	Cover	Number II, Blue, SCV Coupler ORDER RE575267
8	RE309620	1	Cover	Number III, Brown, SCV Coupler ORDER RE575268
9	RE298959	1	Cover	Number IV, Black, SCV Coupler ORDER RE575269
10	RE313875	1	Stud Kit	-
11	19M7790	6	Screw	M12 X 35
12	14M7299	3	Flange Nut	M12
13	R310205	1	Plate	ORDER R571280
13	R571280	1	Plate	-
14	R310108	1	Plate	-
15	R320516	3	Tie Rod Assembly	-
16	38H5192	8	Fitting	-
17	51M7045	8	O-Ring	19.300 X 2.200 mm
18	T77932	8	O-Ring	-
19	RE309117	2	Hydraulic Hose	ORDER RE333303
19	RE333303	2	Hydraulic Hose	(1st SCV (Green))
20	RE333311	2	Hydraulic Hose	(2nd SCV (Blue)) (4th SCV (Black)) SUB FOR RE309118 AND RE333306
21	RE311959	2	Hydraulic Hose	ORDER RE333308
21	RE333308	2	Hydraulic Hose	(3rd SCV (Brown))
22	RE311961	2	Hydraulic Hose	ORDER RE333311
23	RE572380	4	Adapter Fitting	-
24	51M7047	6	O-Ring	23.600 X 2.900 mm
25	64M1022	5	Drain Plug	-
26	RE46685	5	Fitting Plug	-
27	51M7043	5	O-Ring	15.300 X 2.200 mm
28	RE46684	2	Fitting Plug	-
29	51M7041	2	O-Ring	11.300 X 2.200 mm
30	RE574695	1	Cover	Number I, Green, SCV Coupler
31	RE575267	1	Cover	Number II, Blue, SCV Coupler
32	RE575268	1	Cover	Number III, Brown, SCV Coupler
33	RE575269	1	Cover	Number IV, Black, SCV Coupler

Selective Control Valve, 4 SCV, High Flow (For Scraper)

Нет текстового описания
