Windshield Wiper Motor Assembly, Front and Rear, Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7730	2	Electrical Connector Assy	-
1	57M7791	1	Elec. Connector Housing	USE WITH (6) 57M8293_Pins
2	RE282983	1	Wiper Motor	SUB FOR RE151494 APPL; ALSO ORDER RE311063
3	37M7352	3	Screw	W/ Rear Wiper
3	37M7352	6	Screw	W/O Rear Wiper
4	RE571942	1	Toggle/Rocker Switch	SUB FOR RE295458
5	R161356	1	Shield	-
6	37M7361	2	Screw	M6 X 16
7	AL153661	1	Wiper Blade	SUB FOR AT399275
8	RE245399	1	Wiper Arm	SUB FOR RE305296
9	14M7298	1	Flange Nut	M8
10	RE311063	1	Wiring Harness	-
11	R261503	1	Cover	-
12	GC00093	1	Screw	M5 X 16
13	M115279	1	Plug	-
14	-	1	Part 16	USE WITH (5) 57M8602_Pins, (5) 57M8321_Seals
15	57M8415	1	Elec. Connector Housing	Roof Harness USE WITH (4) 57M7252_Pins, (4) 57M9215_Seals
15	57M7469	1	Electrical Connector Assy	-
16	57M8873	1	Elec. Connector Terminal	-
17	RE337750	1	Windshield Wiper Kit	-
18	AL205623	1	Water Pump	ORDER AL228317
18	AL228317	1	Pump	-
19	-	1	Part 23	CTL AR, MF TY25139
20	AL35642	1	Nozzle	-
21	14M7151	1	Nut	M8
22	24M7362	1	Washer	8.400 X 16 X 1.600 mm

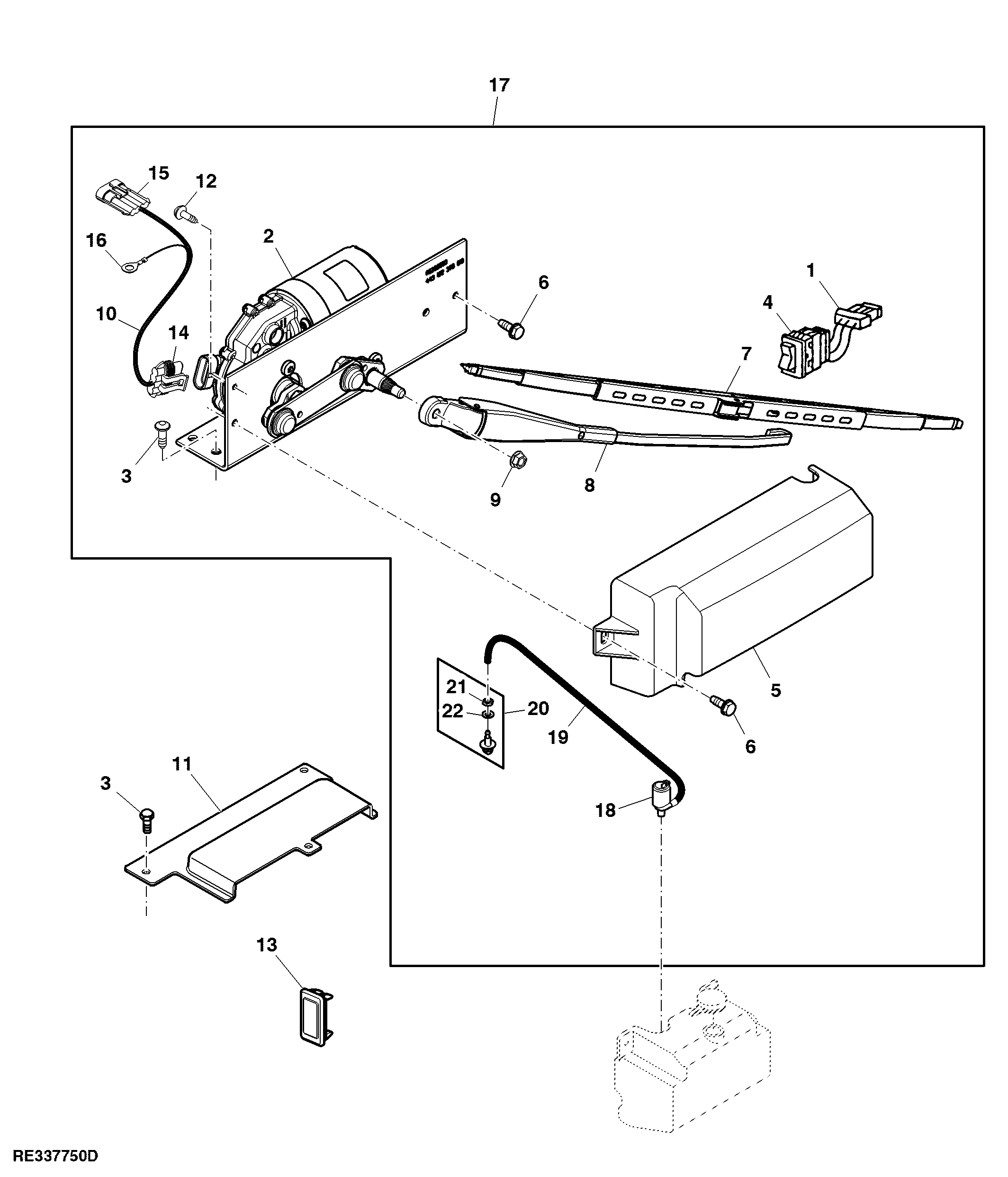

Windshield Wiper Motor Assembly, Front and Rear, Attachment

Нет текстового описания
