Selective Control Valve Lines, W/O Hitch, MST

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE273499	1	Hydraulic Hose	SCV Load Sense INCLUDES T77613
2	H135155	2	Clamp	-
3	19M7913	1	Screw	M8 X 90
4	R112693	1	Clamp	-
5	28H2531	1	Bushing	0.546" X 0.840" X 7/8"
6	19M7875	1	Cap Screw	M10 X 70
7	H112567	4	Plate	-
8	R105388	2	Tie Band	-
9	RE187161	1	Clamp	-
10	RE313148	1	Hydraulic Hose	SCV Return INCLUDES T76938
11	19M7784	2	Screw	M10 X 20
12	R261945	1	Bracket	-
13	14M7274	2	Nut	M10
14	28H3428	2	Spacer	0.423" X 0.675" X 3-1/16"
15	19M7348	2	Cap Screw	M10 X 150
16	24M7239	4	Washer	10.700 X 21 X 2.500 mm
17	38H5005	1	Adapter Fitting	-
18	T77858	4	O-Ring	-
19	38H5009	1	Adapter Fitting	-
20	38H1095	1	Elbow Fitting	-
21	T77857	2	O-Ring	-
22	24M7336	2	Washer	9 X 16 X 1.600 mm
23	R129325	4	Clamp	-
24	R334808	1	Guard	-
25	H111730	2	Clamp	-
26	RE312607	1	Oil Line	Rear SCV Pressure
27	RE312606	1	Oil Line	Rear SCV Return
28	RE69746	1	Clamp	ASSY, 3 Clamps W/ Bag and Label
29	RE304642	1	Hydraulic Hose	SCV Zero Pressure Drain
30	R129323	1	Clamp	-
31	64M5010	1	Drain Plug	INCLUDES 51M7048
32	R202160	1	Clamp	-
33	RE288842	1	Oil Line	Rear SCV Load Sense INCLUDES T77613
34	RE290034	1	Hydraulic Hose	Load Sense Hose
35	19M8318	1	Screw	M8 X 45
36	38H5264	1	Adapter Fitting	-
37	38H5206	1	Adapter Fitting	-
38	38H5020	1	Elbow Fitting	-
39	T76938	3	O-Ring	-
40	38H5105	1	Tee Fitting	-
41	RE60701	2	Diagnostic Coupling	-
42	R77175	2	Cover	-
43	38H5016	1	Elbow Fitting	-
44	RE313798	1	Hydraulic Hose	Front SCV Pressure
45	RE204623	1	Hydraulic Hose	SCV Pressure Hose
46	28H3377	2	Bushing	0.423" X 0.675" X 1-3/4"
47	19M7803	1	Screw	M8 X 70
48	19M8162	2	Screw	M10 X 40
49	19M9225	2	Cap Screw	M8 X 150
50	38H5002	2	Adapter Fitting	-
51	T77613	7	O-Ring	-
52	E53830	1	Clamp	-
53	R76477	3	Tie Band	-
54	R184956	1	Hose	-
55	R46414	1	Clamp	-
56	RE210893	1	Plate	-
57	51M7048	4	O-Ring	29.600 X 2.900 mm
58	19M7799	1	Screw	M8 X 45
59	51M7047	1	O-Ring	23.600 X 2.900 mm
60	51M7041	4	O-Ring	11.300 X 2.200 mm
61	H131116	1	Bolt	-
62	R154025	1	Hose Guard	-
63	14M7396	2	Lock Nut	M8

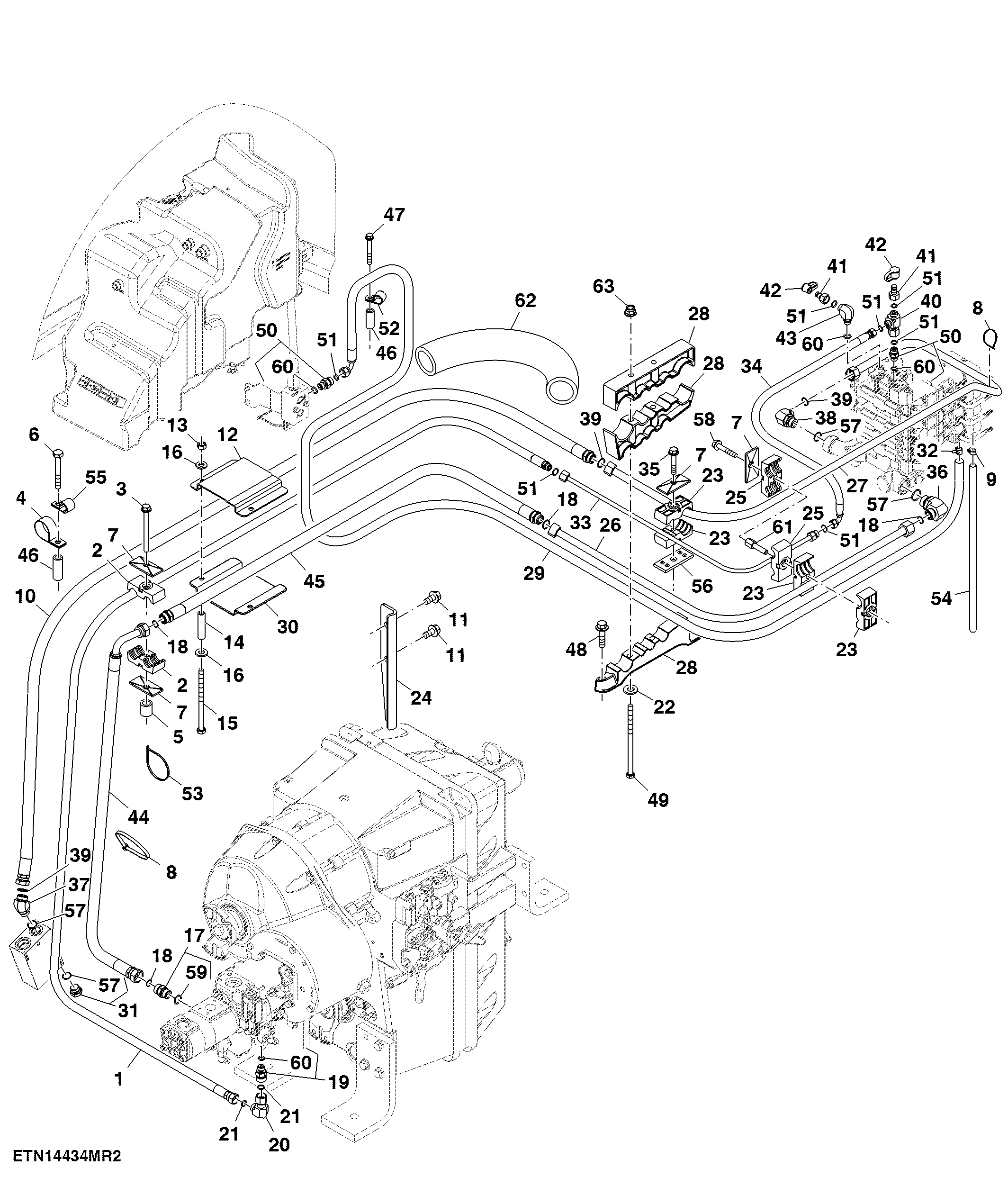

Selective Control Valve Lines, W/O Hitch, MST
