Открытый узел

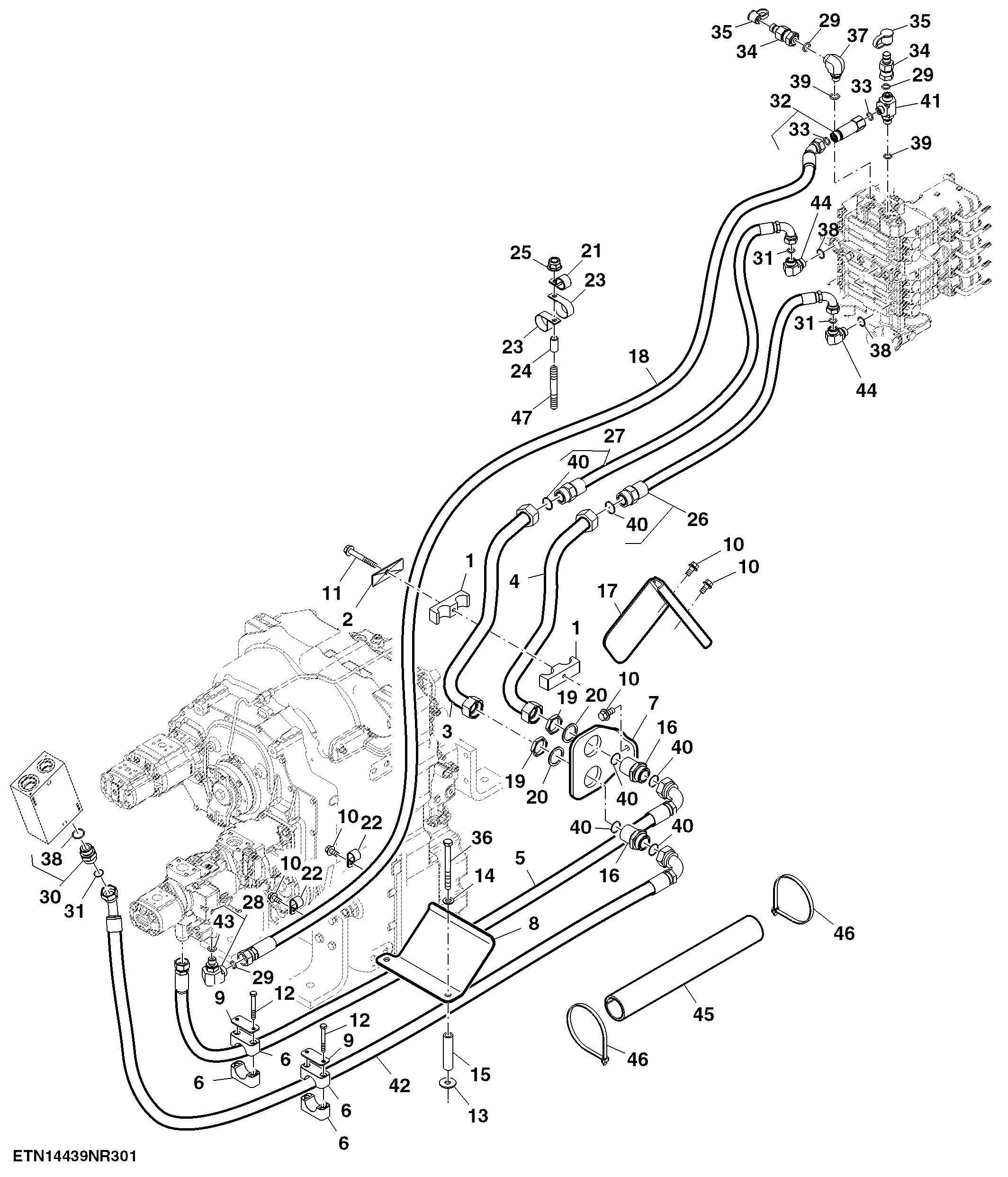

Selective Control Valve Lines, High Flow, PST, W / Hitch (1 /2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H114898	2	Clamp	-
2	H114901	1	Plate	-
3	RE211289	1	Oil Line	Return, High Flow
4	RE211290	1	Oil Line	Pressure, High Flow
5	RE255161	1	Hydraulic Hose	Press High Flow SM Pump
6	R207294	4	Block Clamp	-
7	R211297	1	Support	-
8	R214116	1	Hose Support	High Flow 45cc Pump
9	T164017	2	Plate	-
10	19M7784	6	Screw	M10 X 20
11	19M7801	1	Screw	M8 X 60
12	19M8836	4	Cap Screw	M8 X 65
13	24M7180	2	Washer	13 X 37 X 3 mm
14	24M7345	2	Washer	13.500 X 24 X 2.500 mm
15	28H3448	2	Bushing	0.546" X 0.840" X 3-1/2"
16	38H1288	2	Union Fitting	-
17	RE334809	1	Bracket	SUB FOR RE211397
18	RE309955	1	Hydraulic Hose	9000 HI
19	T78714	2	Nut	-
20	24H1570	2	Washer	1-25/32" X 2-1/4" X 0.120"
21	R114103	1	Clamp	-
22	E53830	2	Clamp	-
23	AH77714	2	Clip	-
24	28H3377	1	Bushing	0.423" X 0.675" X 1-3/4"
25	14M7400	1	Lock Nut	M10
26	RE288855	1	Hydraulic Hose	Pressure, High Flow
27	RE288854	1	Hydraulic Hose	Return, High Flow
28	38H5022	1	Elbow Fitting	-
29	T77613	3	O-Ring	-
30	38H5006	1	Adapter Fitting	-
31	T76938	3	O-Ring	-
32	RE264764	1	Check Valve	-
33	T77814	2	O-Ring	-
34	RE60701	2	Diagnostic Coupling	-
35	R77175	2	Cover	-
36	19M7914	2	Cap Screw	M12 X 120
37	38H5016	1	Elbow Fitting	-
38	51M7048	3	O-Ring	29.600 X 2.900 mm
39	51M7041	2	O-Ring	11.300 X 2.200 mm
40	T78612	6	O-Ring	-
41	38H5275	1	Adapter Fitting	-
42	RE333710	1	Hydraulic Hose	HF SCV Return
43	51M7040	1	O-Ring	9.300 X 2.200 mm
44	38H5020	2	Elbow Fitting	-
45	R150262	1	Isolator	-
46	R76477	2	Tie Band	-
47	42M7129	1	Stud	-

Selective Control Valve Lines, High Flow, PST, W / Hitch (1 /2)
