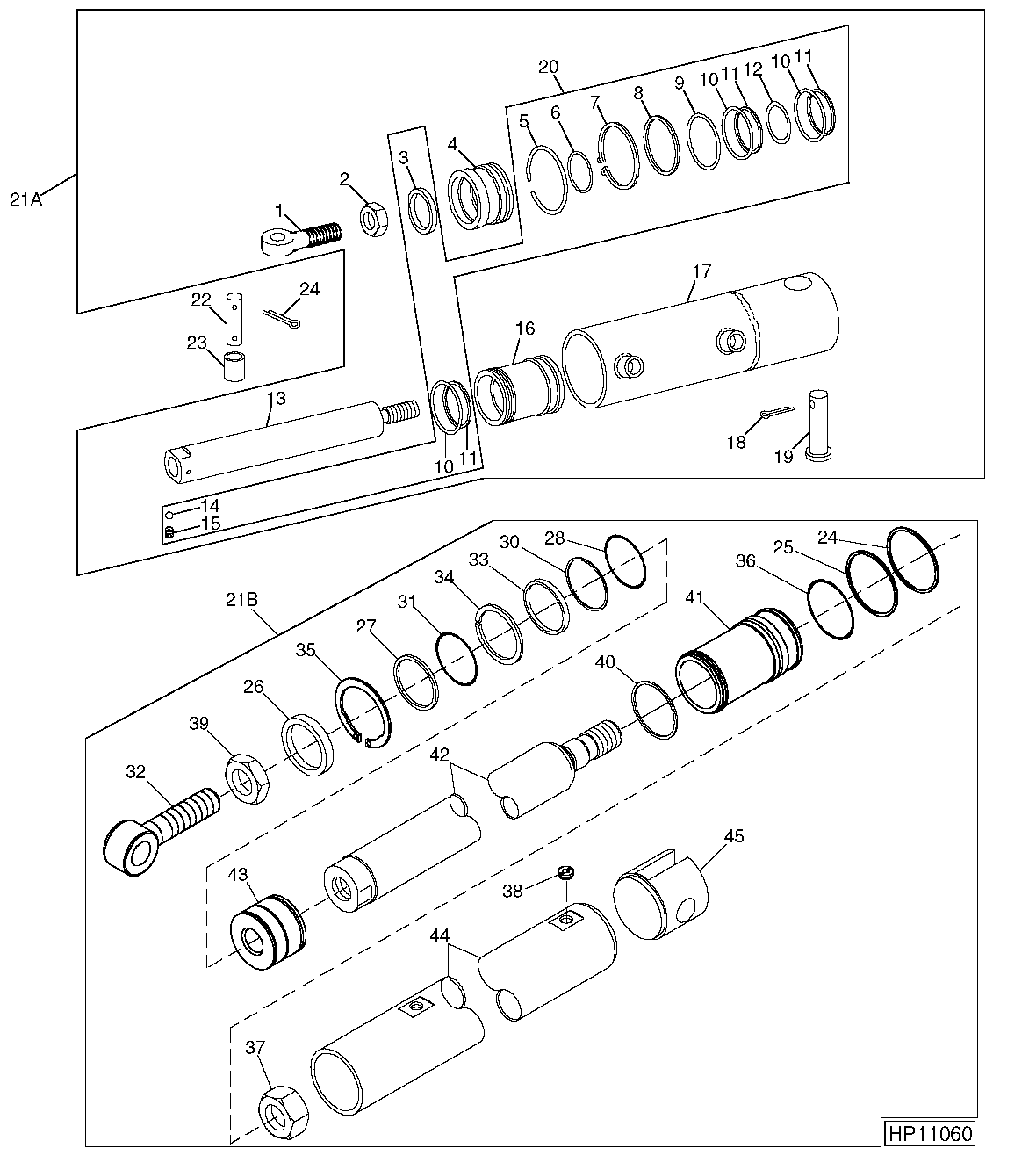

Unloading Auger Swing Cylinder ( - 695100)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H150926	1	Eyebolt	-
2	14H904	1	Nut	3/4"
3	-	1	Part 3	-
4	-	1	Part 4	-
5	-	1	Part 5	-
6	-	1	Part 6	-
7	H180788	1	Ring	(B)
8	-	1	Part 8	-
9	-	1	Part 9	-
10	-	1	Part 10	-
11	-	1	Part 11	-
12	-	1	Part 12	-
13	H150920	1	Rod	-
14	L36230	1	Ball	-
15	22H897	1	Set Screw	1/4" X 1/4"
16	-	1	Part 16	-
17	-	1	Part 17	-
18	11H218	1	Cotter Pin	3/16" X 1-1/2"
19	R56930	1	Pin Fastener	-
20	AHC16982	1	Hydraulic Cylinder Kit	Rod Kit
20	AHC16965	1	Hydraulic Cylinder Kit	Bore Kit
20	AH168060	1	Hydraulic Cylinder Kit	Includes Parts Marked (A) ORDER AH176274
20	AH176274	1	Hydraulic Cylinder Kit	Includes Parts Marked (B) ORDER AHC16965 AND AHC16982
20	AH146043	1	Seat Kit	-
22	H177211	1	Pin Fastener	(SUB FOR H138930)
23	M131544	1	Spacer	-
24	11M7038	2	Cotter Pin	6.300 X 40 mm
25	AH176234	1	Seal	(B)
25	AH157495	1	Seal	(A) (SUB AH176234)
26	-	1	Part 33	(A)
27	H156586	1	Seal	(A) (B)
28	H158942	1	O-Ring	(A) (B)
29	-	1	Part 36	(A)
30	R79117	1	Back-Up Ring	(A) (B)
31	T22828	1	O-Ring	(A) (B)
32	H179062	1	Eyebolt	-
33	H161729	1	Seal	(B)
34	H164359	1	Snap Ring	-
35	H164360	1	Snap Ring	-
36	H174672	2	Ring	-
37	H170534	1	Nut	-
38	H178763	2	Orifice	-
39	14M7209	1	Nut	M18
40	-	1	Part 47	-
41	-	1	Part 48	-
42	-	1	Part 49	-
43	-	1	Part 50	-
44	-	1	Part 51	-
45	-	1	Part 52	-
21A	AH145030	1	Hydraulic Cylinder	(SUB AH166484)
21B	AH176383	1	Hydraulic Cylinder	-
21B	AH166484	1	Hydraulic Cylinder	(SUB AH176383)

Unloading Auger Swing Cylinder ( - 695100)
