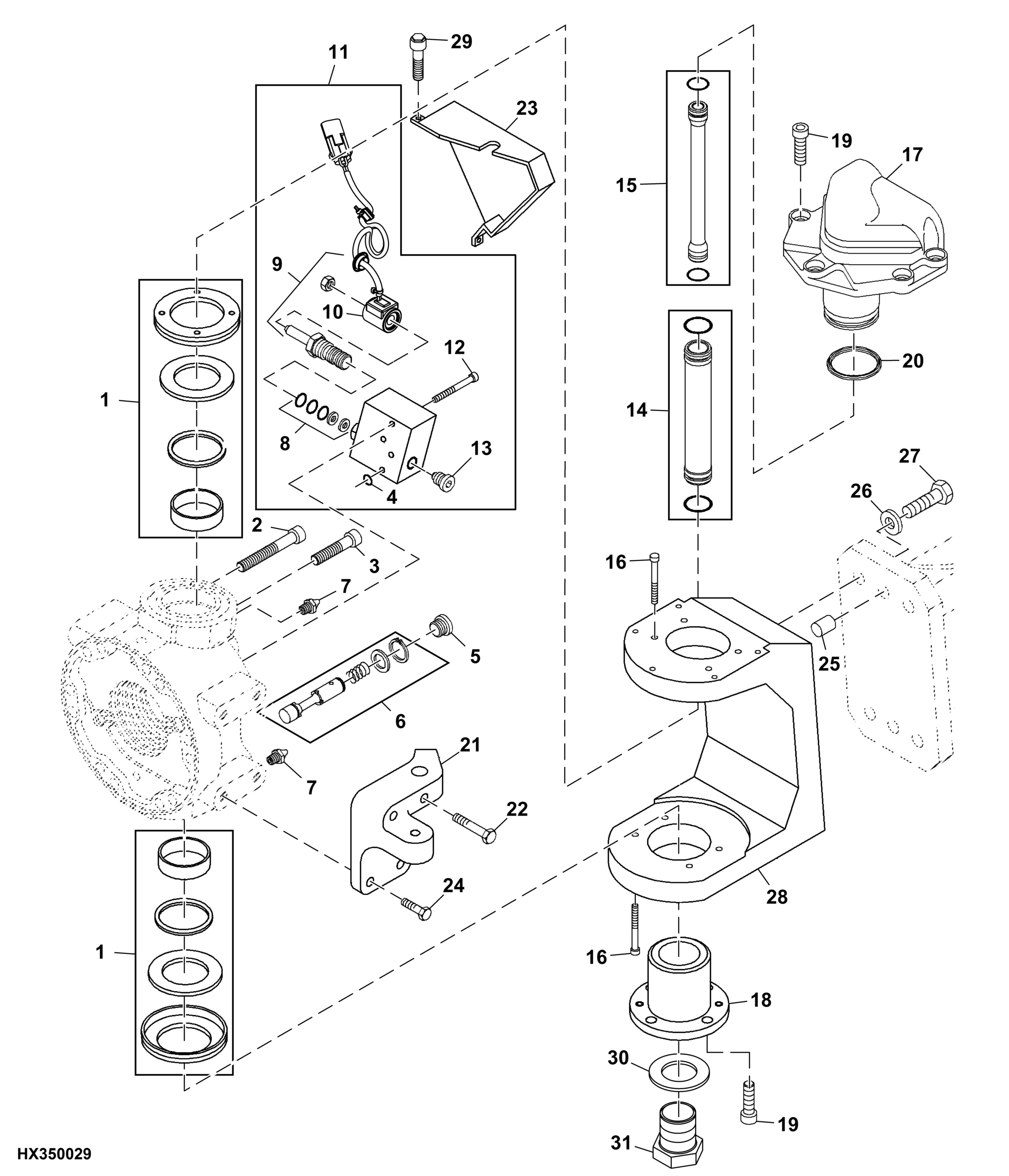

Two-Speed C-Frame Pivots and Caps-Motor 2096cc (690101 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE12312	2	Bushing Kit	(SUB FOR AH169199)
2	H175439	6	Screw	-
3	H175441	4	Screw	-
4	T77613	4	O-Ring	-
5	AH169194	1	Plug	M33 X 2
6	AH169195	1	Valve Spool	-
7	JD7806	2	Lubrication Fitting	-
8	AH209121	1	Seal Kit	-
9	AH209120	1	Valve	(SUB FOR AH169204)
10	AXE45240	1	Solenoid Valve Coil	USE WITH AXE46088
10	AH169203	1	Electrical Coil	(USE WITH AH210373 OR AH210374)
10	AH219822	1	Electrical Coil	(USE WITH AXE13854 OR AH218391)
11	AXE46088	1	Valve	SUB FOR AH219807, AH169206 OR AH173807
12	19M8513	4	Screw	M6 X 40
13	64M1018	1	Drain Plug	SUB FOR AH169205
14	AH169200	1	Oil Tube	-
15	AH169201	1	Oil Tube	-
16	19M8532	8	Screw	M6 X 35
17	HXE18590	1	Pivot	UPPER RH AND LH MOTOR
17	AH169197	1	Pivot	(A)
18	AH169198	1	Pivot	(A)
18	HXE18196	1	Pivot	LOWER RH MOTOR
18	HXE18195	1	Pivot	LOWER LH MOTOR
19	19M8440	9	Screw	M10 X 25
20	H175444	1	Seal	1886CC
20	AXE12311	1	Seal	2096CC
21	H240141	1	Steering Arm	(SUB FOR H169433) LH MOTOR
21	H240140	1	Steering Arm	(SUB FOR H169432) RH MOTOR
22	19M8147	2	Cap Screw	M20 X 90
23	H175446	1	Valve Cover	-
24	19M7946	2	Cap Screw	M20 X 40
25	H75423	2	Pin Fastener	-
26	H174025	5	Spacer	-
27	19M8002	8	Cap Screw	M20 X 55, (USE WITH AH156773)
27	19M9293	5	Cap Screw	M20 X 55, (USE WITH AH207191 OR AH207127)
28	HXE14302	1	Yoke	(SUB FOR H205326 OR H211268) C-FRAME
28	H218740	1	Yoke	(A)
29	19M9492	2	Screw	M8 X 12
30	24H1452	1	Washer	1-1/32" X 1-3/4" X 0.105", LH MOTOR ONLY
31	N375572	1	Bolt	LH MOTOR ONLY
..	AH219803	1	Seal Kit	(A)
..	BH84452	1	Motor Kit	(INCLUDES A)

Two-Speed C-Frame Pivots and Caps-Motor 2096cc (690101 - )
