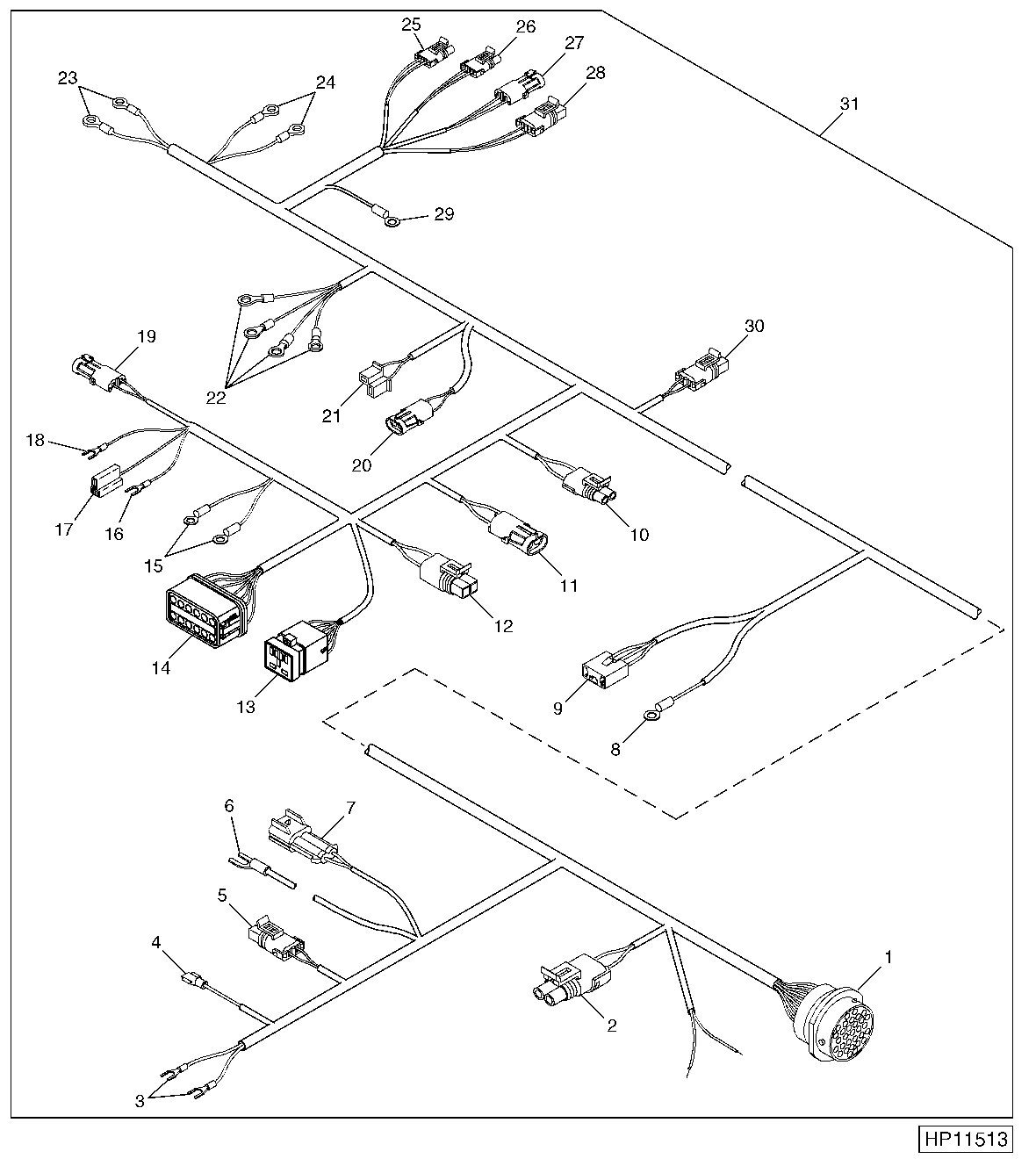

Engine Wiring Harness ( - 695100)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R78058	1	Elec. Connector Terminal	-
1	57M8036	1	Electrical Connector Assy	R.H. MAIN HARNESS
1	R78059	1	Elec. Connector Seal	-
1	57M7546	1	Elec. Connector Terminal	-
2	RE12363	1	Electrical Connector Assy	A/C HIGH PRESSURE
2	R78060	1	Elec. Connector Terminal	-
2	R78063	1	Elec. Connector Seal	-
3	-	2	Part 8	INJECTION PUMP THROTTLE
4	-	1	Part 9	INJECTION PUMP FUEL SHUT OFF
5	AT256732	1	Connector	AUX ENGINE SPEED
6	57M7875	1	Elec. Connector Terminal	A/C COMPRESSOR GROUND
7	57M7293	1	Elec. Connector Housing	A/C COMPRESSOR CLUTCH
8	-	1	Part 13	ALTERNATOR OUTPUT
9	H104855	1	Electrical Connector Assy	ALTERNATOR FIELD
10	RE12363	1	Electrical Connector Assy	ENGINE AIR FILTER
10	R78063	1	Elec. Connector Seal	-
10	R78060	1	Elec. Connector Terminal	-
11	R78053	1	Electrical Connector Assy	ENGINE SERVICE LIGHT
12	AT256732	1	Connector	HYDRO OIL TEMPERATURE
13	57M7696	1	Elec. Connector Housing	L.H. MAIN
13	R104846	1	Elec. Connector Terminal	-
13	57M7258	1	Elec. Connector Seal	-
13	57M7698	1	Elec. Connector Terminal	-
14	R78059	12	Elec. Connector Seal	-
14	57M7546	1	Elec. Connector Terminal	-
14	57M8008	1	Electrical Connector Assy	L.H. MAIN
14	R78058	1	Elec. Connector Terminal	-
15	-	2	Part 28	THROTTLE POWER CIRCUIT BREAKER
16	-	1	Part 29	THROTTLE RELAY
17	-	1	Part 30	THROTTLE RELAY
18	-	1	Part 31	THROTTLE RELAY
19	R78053	1	Electrical Connector Assy	WALKER PLUGGED
20	R78053	1	Electrical Connector Assy	ENGINE OIL PRESSURE
21	R77479	1	Elec. Connector Terminal	START AID
22	57M7572	4	Elec. Connector Terminal	MAIN GROUNDS
23	57M7564	2	Elec. Connector Terminal	STARTER
24	57M7571	2	Elec. Connector Terminal	START RELAY
25	RE12363	1	Electrical Connector Assy	UNLOADING AUGER ENGAGE
25	R78060	1	Elec. Connector Terminal	-
25	R78063	1	Elec. Connector Seal	-
26	RE12363	1	Electrical Connector Assy	SEPARATOR ENGAGE
26	R78060	1	Elec. Connector Terminal	-
26	R78063	1	Elec. Connector Seal	-
27	R78053	1	Electrical Connector Assy	SEPARATOR DRIVE PRESSURE
28	AT256732	1	Connector	SEPARATOR DRIVE TEMPERATURE
29	PT11312	1	WIRING LEAD	SEPARATOR DRIVE FILTER
30	AT256732	1	Connector	ENGINE TEMPERATURE SWITCH
31	AH154244	1	Wiring Harness	ENGINE
