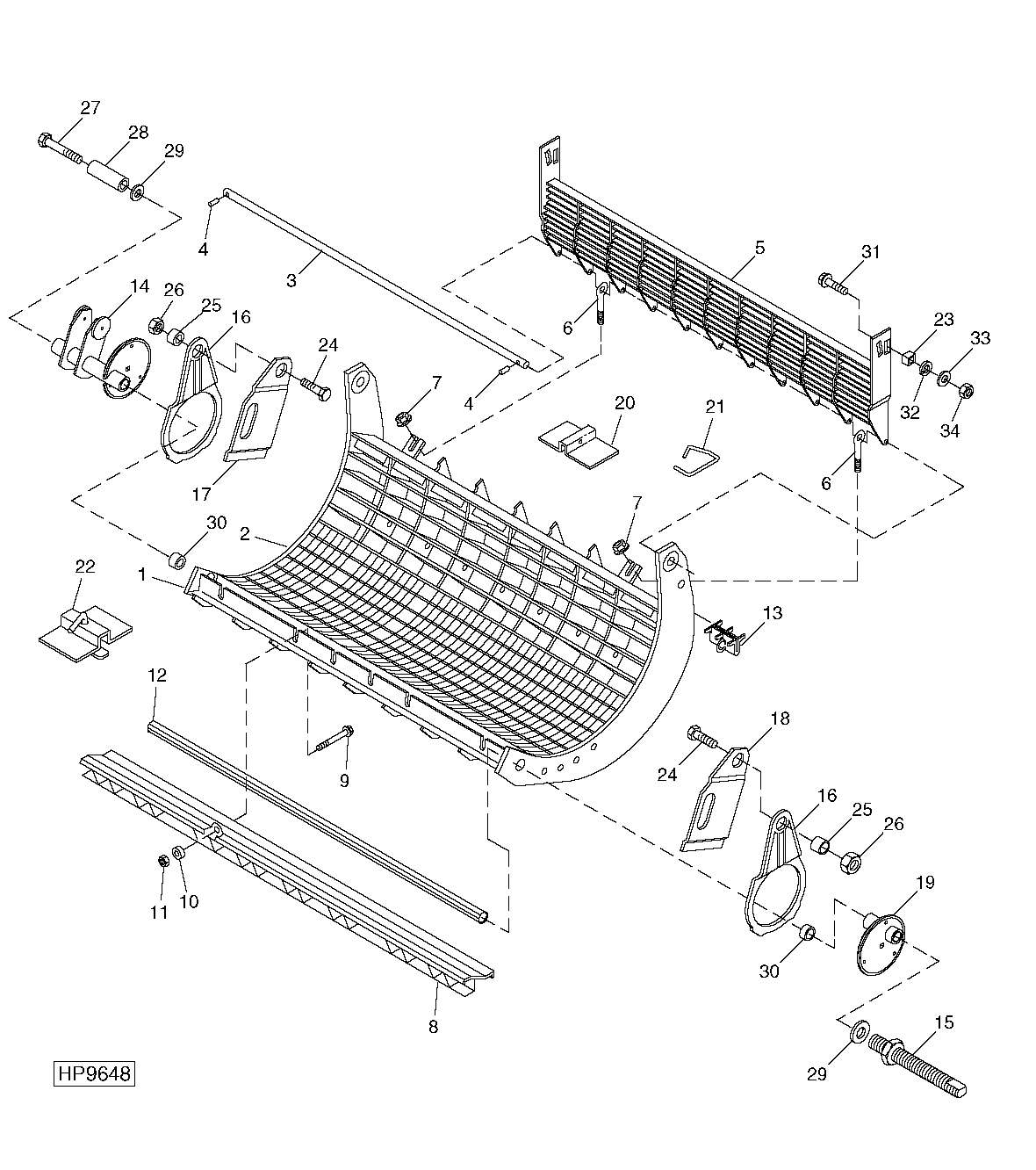

CONCAVE ASSEMBLY AND BEATER GRATE (NARROW)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH150497	1	Concave	13 BAR NARROW
2	H157967	58	Nail	-
3	H140803	1	Pin	-
4	11M7015	2	Cotter Pin	3.200 X 25 mm
5	AH151121	1	Grate	-
6	H144742	2	Eyebolt	-
7	H135891	2	Lock Nut	-
8	AH151119	1	Angle	-
9	H139098	8	Bolt	-
10	E47782	8	Spacer	-
11	14M7401	8	Lock Nut	M12
12	H145639	1	Shaft	-
13	AH206756	20	Insert	CONCAVE GRID (SUB FOR AH153688 OR AH171207)
14	H178115	1	Cam	(SUB FOR AH133156)
15	H174617	1	Rod	(SUB FOR H147468)
16	H151484	2	Link	-
17	H131988	1	Cover	FOR SPIKE TO RASP CONVERSION
18	H131989	1	Cover	FOR SPIKE TO RASP CONVERSION
19	AH133157	1	Cam	-
20	H134418	1	Cover	-
21	H134420	1	Retainer	-
22	AH130465	2	Cover	-
23	H140804	2	Beam	-
24	H137203	2	Bolt	-
25	H137204	2	Bushing	-
26	14M7300	2	Flange Nut	M20
27	H132541	1	Screw	-
28	H140458	1	Spacer	-
29	24H1351	2	Washer	9/16" X 1-1/2" X 0.164"
30	28H1601	1	Bushing	0.546" X 0.840" X 4-1/8"
31	19M7813	2	Screw	M12 X 45
32	12H301	2	Lock Washer	1/2"
33	24H1226	2	Washer	1/2" X 1-1/4" X 0.083"
34	14M7299	2	Flange Nut	M12
..	BH81335	1	Complete Goods/Ship. Bundle	CONCAVE ASSEMBLY WITHOUT INSERTS
..	BH78495	1	Complete Goods/Ship. Bundle	REAR CONCAVE FILLER STRIPS
..	BH78486	1	Complete Goods/Ship. Bundle	CONCAVE COVERS
..	BH78594	1	Complete Goods/Ship. Bundle	SPIKE TOOTH TO RASP BAR

CONCAVE ASSEMBLY AND BEATER GRATE (NARROW)

Нет текстового описания
