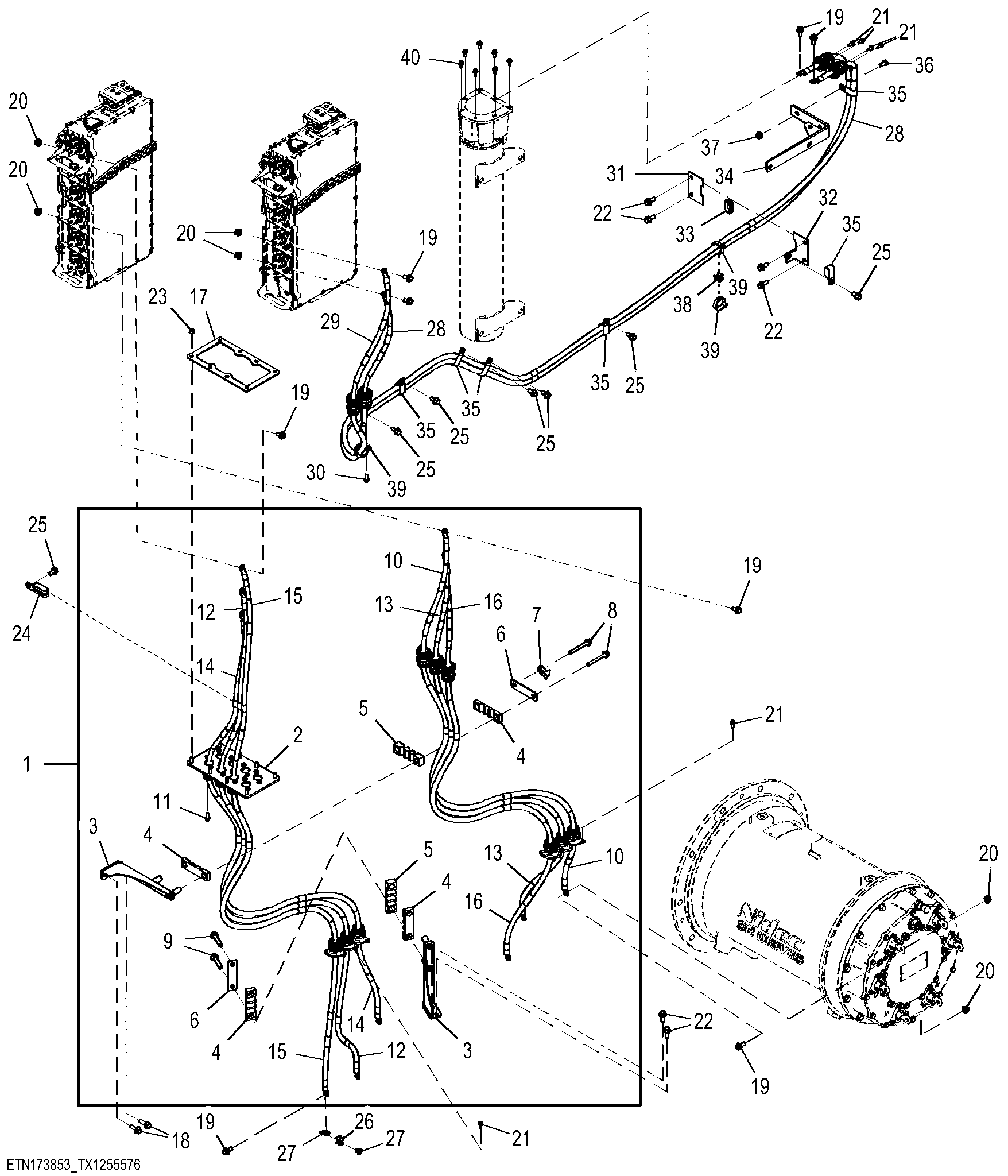

Electric Drive System Cables, Right hand (RH)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT406539	1	Cable	-
2	AT422157	1	Platform	-
3	AT442076	2	Bracket	Front
4	T343262	4	Half Clamp	-
5	T343263	2	Platform	-
6	T343264	2	Strap	-
7	N380408	1	Clamp	-
8	19M7810	2	Screw	M10 X 80
9	19M7807	2	Screw	M10 X 60
10	AT406543	1	Cable	INCLUDES 57M11298
10	57M11298	2	Elec. Connector Housing	-
11	19M7862	12	Screw	M6 X 20
12	57M11298	2	Elec. Connector Housing	-
12	AT406544	1	Cable	Rear Motor, INCLUDES 57M11298
13	AT406540	1	Cable	Rear Motor, INCLUDES 57M11298
13	57M11298	2	Elec. Connector Housing	-
14	AT406542	1	Cable	Rear Motor, INCLUDES 57M11298
14	57M11298	2	Elec. Connector Housing	-
15	AT406538	1	Cable	Rear Motor, INCLUDES 57M11298
15	57M11298	2	Elec. Connector Housing	-
16	AT406541	1	Cable	Rear Motor, INCLUDES 57M11298
16	57M11298	2	Elec. Connector Housing	-
17	T326493	1	Seal	-
18	19M7786	2	Screw	M10 X 30
19	AT425779	16	Cap Screw	-
20	DC19765	14	Flange Nut	-
21	19M7775	16	Screw	M6 X 16
22	19M7785	6	Screw	M10 X 25
23	14M7298	8	Flange Nut	M8
24	T342620	1	Clamp	-
25	19M7784	7	Screw	M10 X 20
26	RE345761	2	Swivel	-
27	R44302	2	Tie Band	-
28	AT406787	1	Cable	-
29	AT406789	1	Cable	-
30	19M7862	4	Screw	M6 X 20
31	T344191	1	Plate	-
32	AT437814	1	Bracket	Rear
33	T344190	1	Grommet	-
34	AT418028	1	Bracket	Resistor
35	R49921	7	Clamp	-
36	19M7938	1	Cap Screw	M10 X 20
37	14M7296	1	Flange Nut	M10
38	RE345761	1	Swivel	-
39	H224073	3	Tie Band	-
40	19M9443	7	Screw	M6 X 16

Electric Drive System Cables, Right hand (RH)
